ID
1317177
$ 208.95
1-2 weeks delivery time
-
+
The TMC-03603 Pump 24 Volt 4.10M/6.6M4 is a yellow and black bilge pump designed for inland shipping and water sports, offering robust oil-resistant performance. It is a completely submersible centrifugal pump with a plastic open impeller, handling slightly contaminated and sea water, pumping down to 10 mm, operating at 24 V DC with 5 A amperage, and delivering a free flow of 6,600 liters per hour with a maximum discharge head of 4.1 meters.
- Description
- Ask a Question
-

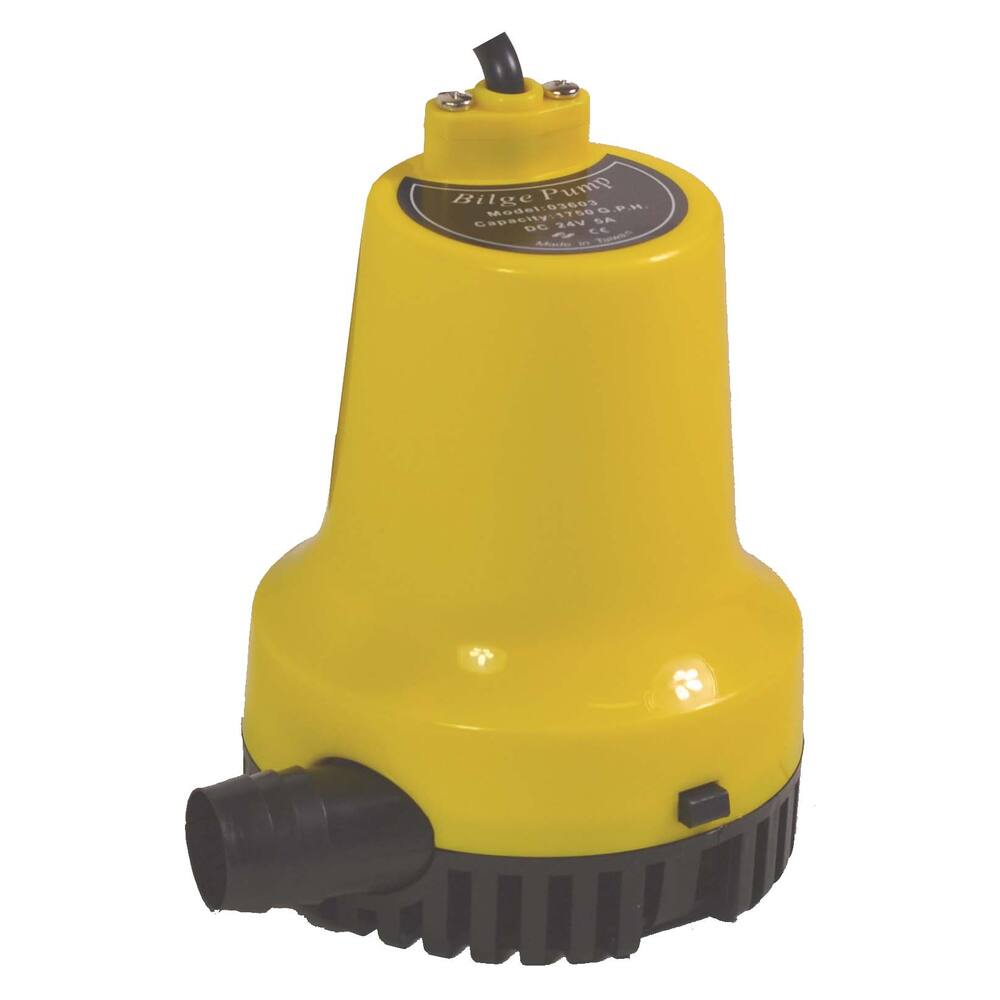

TMC-03603 Pump 24 Volt 4.10M/6.6M4
This yellow and black bilge pump is designed for inland shipping and water sports, offering robust performance with oil resistance. It functions as a completely submersible centrifugal pump ideal for slightly contaminated and sea water.
- Type: 03603
- Impeller: open impeller made of plastic
- Motor: brush motor with no fuse installed
- Shaft seal: ceramic on carbon mechanical seal with lip seal
- Materials: plastic impeller housing, plastic motor housing, stainless steel pump shaft
- Pumps down to 10 mm water level
- Connection: 1" hose connection
- Dimensions: diameter 121/145 mm, height 165 mm
- Weight: 0.9 kg
- Electrical: 24 V, 5.0 A amperage
- Cable: 1 metre without plug
- Product code: 91.05.324
- Pipe diameter pressure: 1"
- Particle size: 2 mm max
- Max discharge head: 4.1 m
- Voltage: 24 V DC
- Free flow capacity: 6600 L/Hour
- No ATEX certification, no separate float switch
-
