ID
1317176
$ 208.95
1-2 weeks delivery time
-
+
The TMC 03603 Pump 12 Volt 4.10M/6.6M4 is a high-performance bilge pump designed for inland shipping and water sports, featuring oil resistance and a yellow/black design. It is a completely submersible centrifugal pump with a plastic open impeller, handling slightly contaminated and sea water, pumping down to 10 mm, operating at 12 V DC with 10 A amperage, and delivering a free flow of 6,600 liters per hour with a maximum discharge head of 4.1 meters.
- Description
- Ask a Question
-

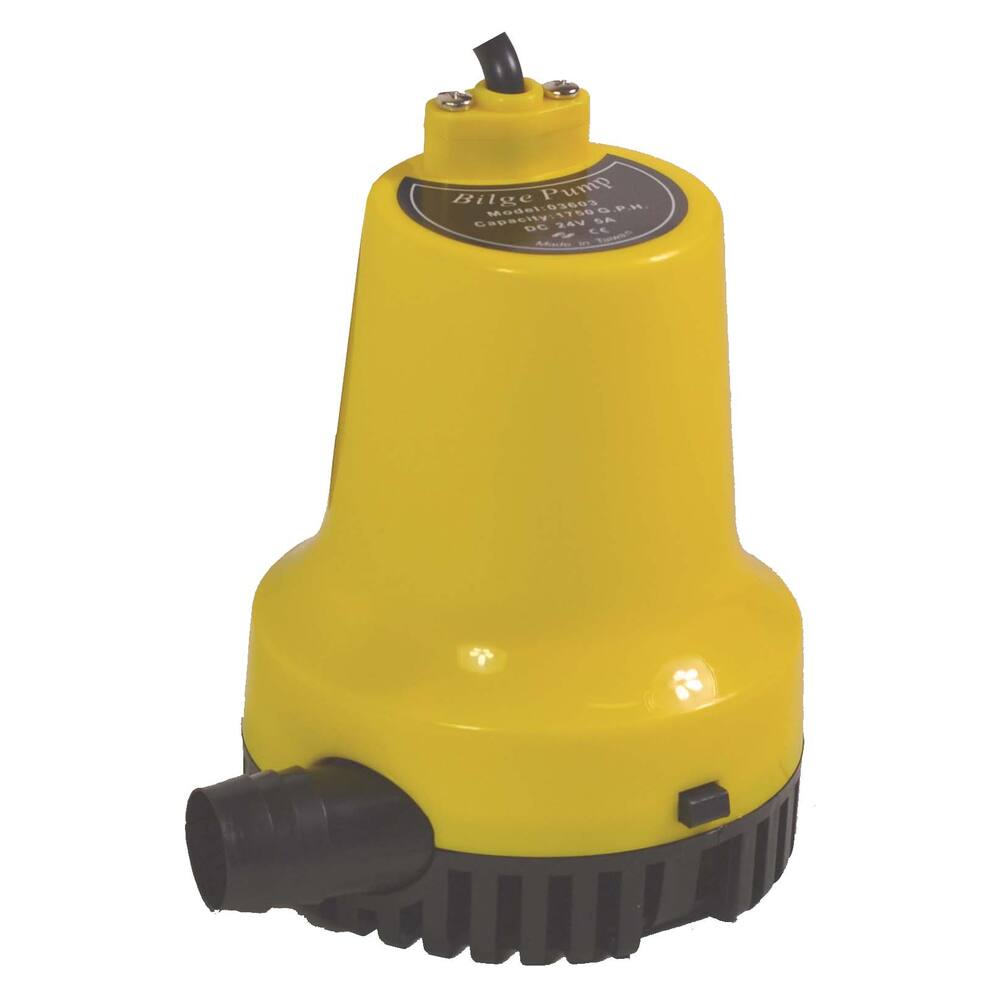

TMC 03603 Pump 12 Volt 4.10M/6.6M4
This high-performance bilge pump for inland shipping and water sports is oil resistant and features a yellow/black design, delivering increased discharge head for demanding conditions.
- Type: 03603
- Colour: yellow/black
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: brush motor
- Fuse: NOT installed
- Shaft seal: ceramic on carbon mechanical seal with lip seal
- Material impeller: plastic
- Material impeller housing: plastic
- Material motor housing: plastic
- Material pump shaft: Stainless steel
- Liquids handled: slightly contaminated water and sea water
- Pumps down to: 10 mm
- Connection: 1" hose connection
- Dimensions: diameter 121/145 mm, height 165 mm
- Weight: 0.9 kg
- Amperage: 12 V, 10.0 A
- Cable length: 1 metre without plug
- Product code: 91.05.312
- Pipe diameter pressure: 1"
- Pump type: Submersible pump
- Medium: Water
- Particle size: 2 mm
- Discharge head Max.: 4.1 m
- Voltage: 12 V
- Current: DC
- ATEX: No
- Separate float switch: No
- Free flow (L/Hour): 6600
-
