ID
1317136
$ 6,973.99
1-2 weeks delivery time
-
+
The powerful Speck PM20 system with 400V motor provides robust water pressurization for industrial and marine environments. With increased capacity to 2,000 liters per hour and 300L pressure vessel, this system serves larger installations requiring reliable water supply for geyser systems and multiple outlets.
- Description
- Ask a Question
-

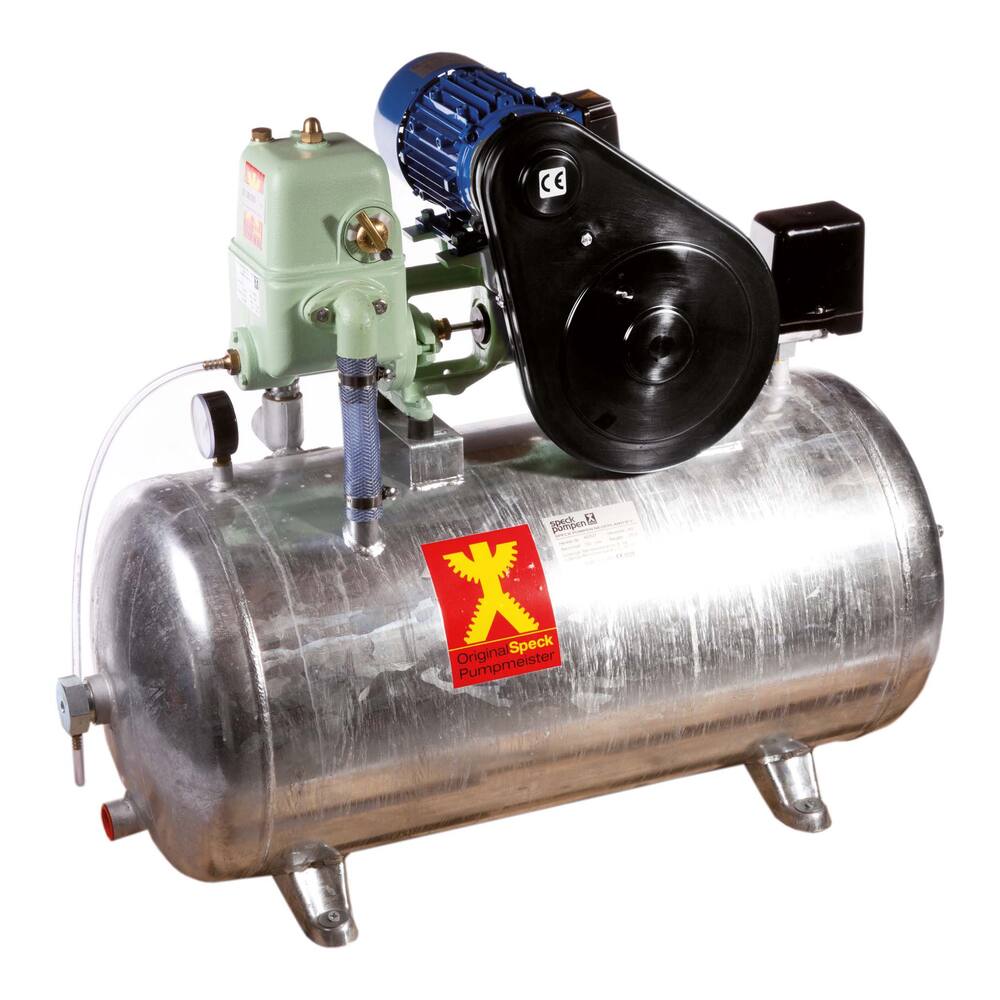

Speck Pressurized Water System PM20 + 300L Galvanised Vessel 400V
This pressurization system caters to inland, seagoing, and recreational craft, delivering professional-grade water pressurization. It remains a top seller in inland shipping applications.
- Comes with pressure vessel, non-return valve, manometer, pressure switch, and electric pump
- Type: PM (Pumpmeister)
- Colour: light green
- Pump type: self-priming plunger pump
- Impeller type: plunger (piston)
- Motor type: brushless motor
- Shaft seal: stop bush
- Material plunger: Simrit
- Material cylinder bush: brass
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids handled: clean water
- Capacity: 2,000 litres per hour at 3.5 bar
- Pressure vessel: horizontal 300 l galvanized with approx. 40 litres useful water capacity
- Switch on pressure: 2.0 bar
- Switch off pressure: 3.5 bar
- Suitable for geyser and 2 to 6 draw off points (not in use simultaneously)
- Dimensions (lxwxh): 1400 x 580 x 980 mm (depends on motor type)
- Weight: 97 kg (depends on motor type)
- Amperage: 400 V, 1.7 A
- Shaft power: 0.37 kW, 0.50 hp at 1,450 rpm
- Must be connected by an accredited installer
- Most dimensions relate to 24 volt motor
- Product code: 97.72.010
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: pressurized water
- Medium: water
- Particle size: 2 mm
- Max discharge head: 35.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: not included
- Free flow: 2000 L/hour
- Capacity at 5 meter: 2000 L/hour
-
