ID
1317117
$ 6,085.48
1-2 weeks delivery time
-
+
The Speck PM10 + 100L with 24V DC motor provides high-capacity pressurization for marine use. This system delivers 1,000 L/h at 3.5 bar with a larger pressure vessel for extended operation. It features a brushless motor and requires installation by an accredited professional.
- Description
- Ask a Question
-

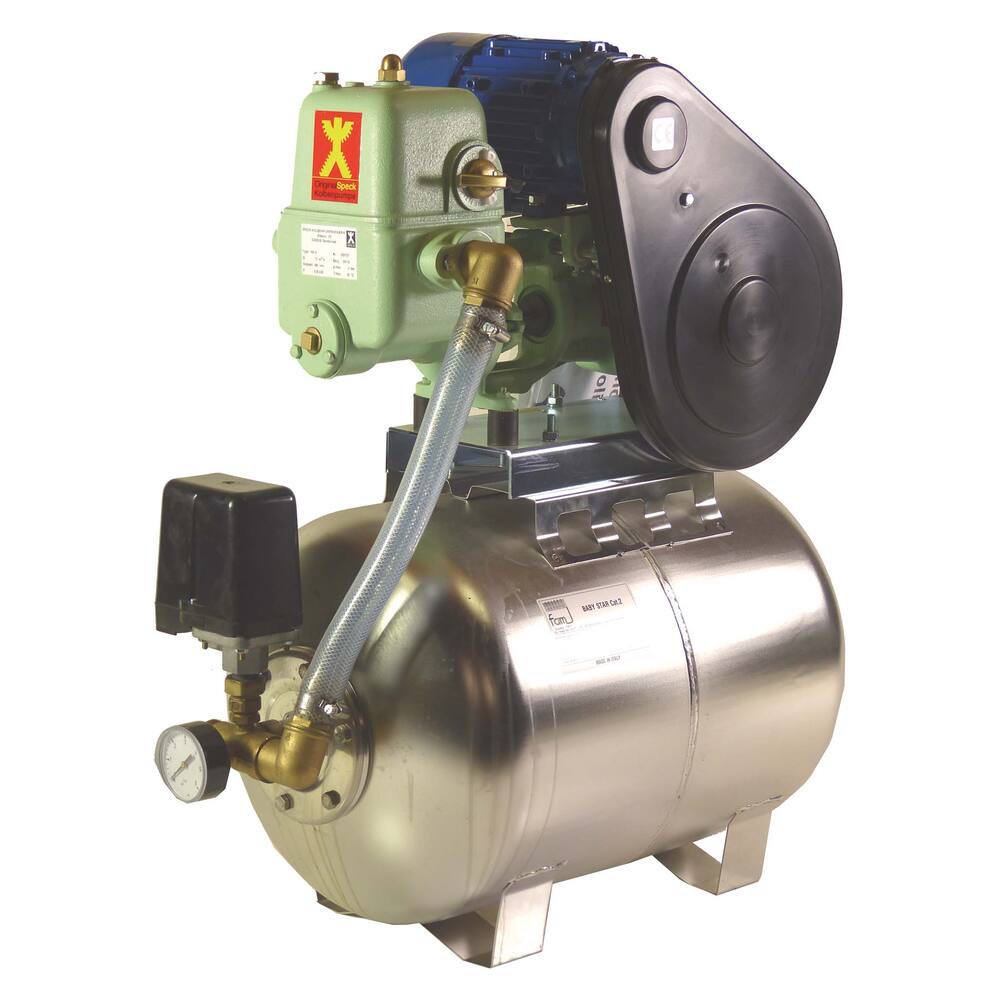

Speck Pressurized Water System PM10 + 100L Stainless Steel Membrane Vessel 24V
A professional water pressurization solution designed for inland and seagoing shipping as well as recreational craft. This top-selling system for inland shipping includes a pressure vessel, non-return valve, manometer, pressure switch, and an optional electric pump.
- Type: PM (Pumpmeister)
- Colour: light green
- Pump type: self-priming plunger pump
- Impeller type: plunger (piston)
- Motor type: brushless motor
- Shaft seal: stop bush
- Material plunger: Simrit
- Material cyl. bus: stainless steel
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids: clean water
- Voltage: 24 V DC (2 year IDEAAL guarantee)
- Capacity: 1,000 litres per hour at 3.5 bar
- Type pressure vessel: horizontal 100 l stainless steel membrane vessel with approx. 14 litres useful water capacity
- Switch on pressure: 2.0 bar
- Switch off pressure: 3.5 bar
- Suitable for: geyser and 2 or 3 draw off points* (not in use simultaneously)
- Connections: 1" internal thread
- Dimensions (lxwxh): 886 x 450 x 885 mm**
- Weight: 57 kg**
- Amperage: 24 V, 17.4 A (Ideaal 15.0 A)
- Shaft power: 0.25 kW, 0.33 hp at 1,450 rpm
- Must be connected by an accredited installer
- Product code: 97.63.005
- Number of tapping points: Geyser and 2-3 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Pressurized water
- Medium: Water
- Particle size: 2 mm
- Discharge head Max.: 35.0 m
- Current: DC
- Protection class: IP68
- Free flow (L/Hour): 1000
- Capacity at 5 meter (L/hour): 1000
-
