ID
1317116
$ 4,410.90
1-2 weeks delivery time
-
+
The Speck PM10 + 100L without motor offers extended capacity for larger marine applications. This professional system includes a 100-litre stainless steel membrane vessel with 14 litres useful water capacity. It supports multiple voltage options and is designed for recreational craft and commercial shipping applications.
- Description
- Ask a Question
-

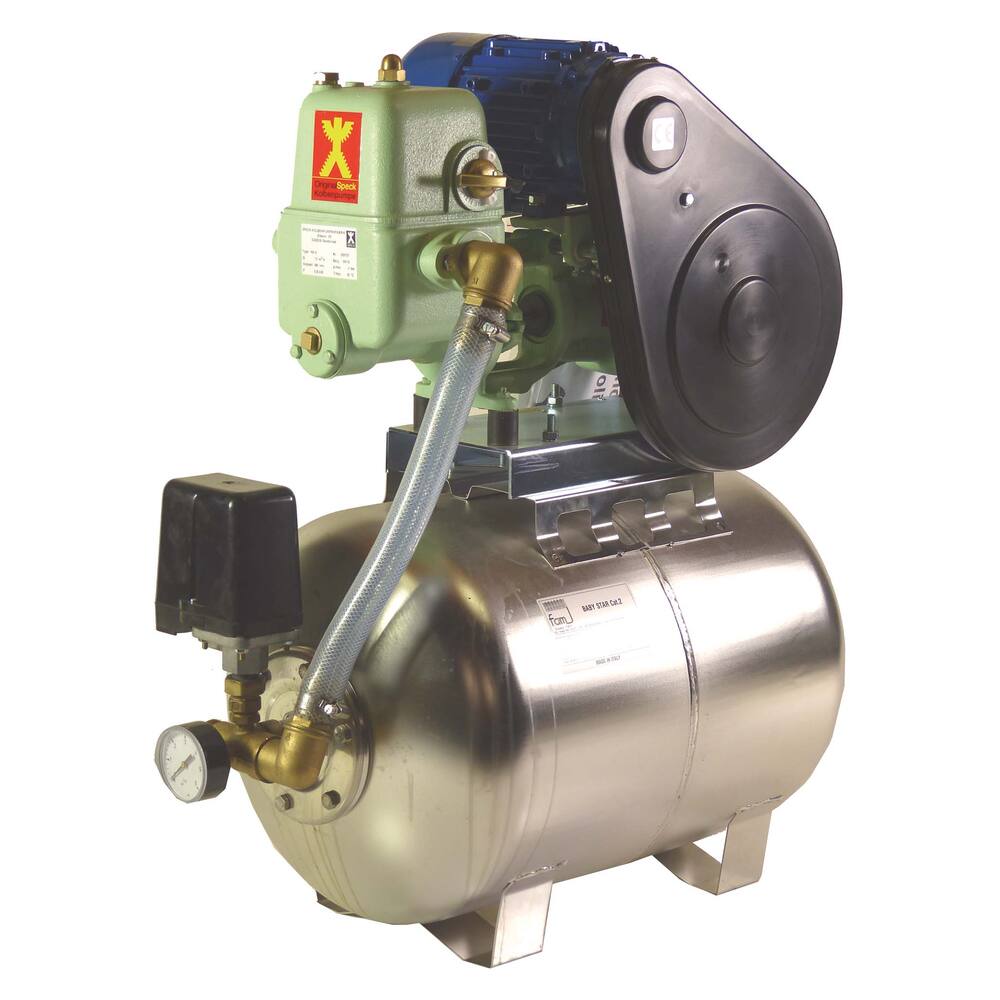

Speck Pressurized Water System PM10 + 100L Stainless Steel Membrane Vessel Without Motor
Designed for inland and seagoing shipping and recreational craft, this professional pressurized water system is a long-time top seller. It includes a pressure vessel, non-return valve, manometer, pressure switch, and optionally an electric pump, but is supplied without a motor.
- Type: PM (Pumpmeister)
- Colour: light green
- Pump type: self-priming plunger pump
- Impeller type: plunger (piston)
- Motor type: brushless motor (not included)
- Shaft seal: stop bush
- Material plunger: Simrit
- Material cyl. bus: stainless steel
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids: clean water
- Voltage options: 12 V DC, 24 V DC (2 year IDEAAL guarantee), 230 V mains, 400 V three phase
- Capacity: 1,000 litres per hour at 3.5 bar
- Suction height: 8.0 metres
- Type pressure vessel: horizontal 100 l stainless steel membrane vessel with approx. 14 litres useful water capacity
- Switch on pressure: 2.0 bar
- Switch off pressure: 3.5 bar
- Suitable for: geyser and 2 or 3 draw off points* (not in use simultaneously)
- Connections: 1" internal thread
- Dimensions: lxwxh = 886 x 450 x 885 mm**
- Weight: 57 kg**
- Amperage: 12 V, 35.0 A; 24 V, 17.4 A (Ideaal 15.0 A); 230 V, 3.1 A; 400 V, 0.8 A
- Shaft power: 0.25 kW, 0.33 hp at 1,450 rpm
- Must be connected by an accredited installer
- Most dimensions relate to 24 volt motor
- Product code: 97.63.002
- Number of tapping points: Geyser and 2-3 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Pressurized water
- Medium: Water
- Particle size: 2 mm
- Discharge head Max.: 35.0 m
- Voltage: - (Without motor)
- Current: -
- Frequency: -
- Protection class: IP68
- ATEX: -
- Separate float switch: -
- Free flow (L/Hour): 1000
- Capacity 5 meter (L/hour): 1000
-
