This professional water pressurization system is designed for inland and seagoing shipping and recreational craft, featuring a complete setup with pressure vessel, non-return valve, manometer, pressure switch, and optional electric pump. It delivers 1,000 liters per hour at 3.5 bar pressure through a self-priming plunger pump with brushless motor, housed in a 100L stainless steel membrane vessel with 14 liters useful water capacity.
- Description
- Ask a Question
-

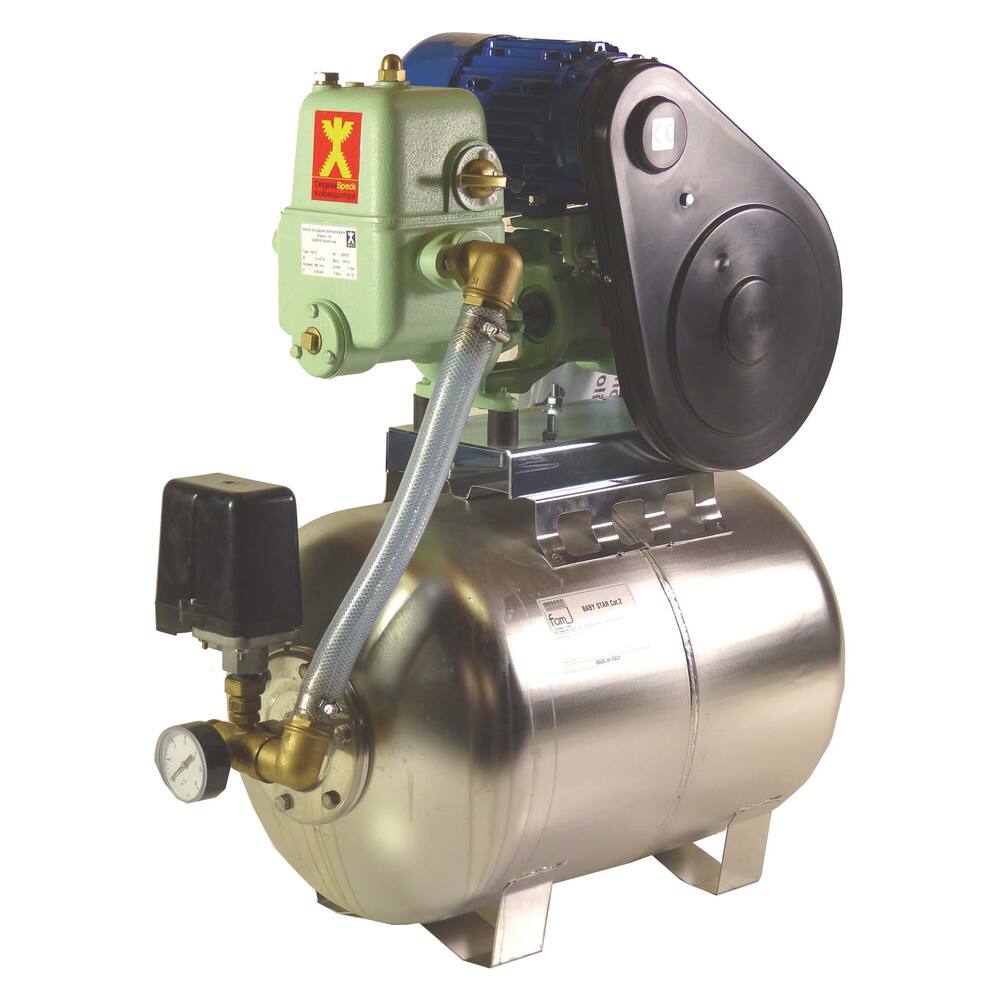

Speck Pressurized Water System PM10 + 100L Stainless Steel Membrane Vessel 230V
This professional water pressurization system is tailored for inland and seagoing shipping and recreational craft. It remains a leading choice in inland shipping with included pressure vessel, non-return valve, manometer, pressure switch, and optional electric pump.
- Type: PM (Pumpmeister)
- Colour: light green
- Pump type: self-priming plunger pump
- Impeller type: plunger (piston)
- Motor type: brushless motor
- Shaft seal: stop bush
- Material plunger: Simrit
- Material cyl. bus: stainless steel
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids: clean water
- Capacity: 1,000 litres per hour at 3.5 bar
- Type pressure vessel: horizontal 100 l stainless steel membrane vessel with approx. 14 litres useful water capacity
- Switch on pressure: 2.0 bar
- Switch off pressure: 3.5 bar
- Suitable for: geyser and 2 or 3 draw off points* (not in use simultaneously)
- Dimensions (lxwxh): 886 x 450 x 885 mm**
- Weight: 57 kg**
- Amperage: 230 V, 3.1 A
- Shaft power: 0.25 kW, 0.33 hp at 1,450 rpm
- Must be connected by an accredited installer
- Product code: 97.63.008
- Number of tapping points: Geyser and 2-3 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Pressurized water
- Medium: Water
- Particle size: 2 mm
- Discharge head Max.: 35.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- Free flow (L/Hour): 1000
- Capacity at 5 meter (L/hour): 1000
-
