ID
1317115
$ 4,211.60
1-2 weeks delivery time
-
+
The Speck PM10 + 50L with 400V three-phase motor provides high-performance pressurization for marine applications. This professional system delivers 1,000 L/h at 3.5 bar with efficient three-phase power. It maintains top sales in inland shipping and requires accredited installation.
- Description
- Ask a Question
-

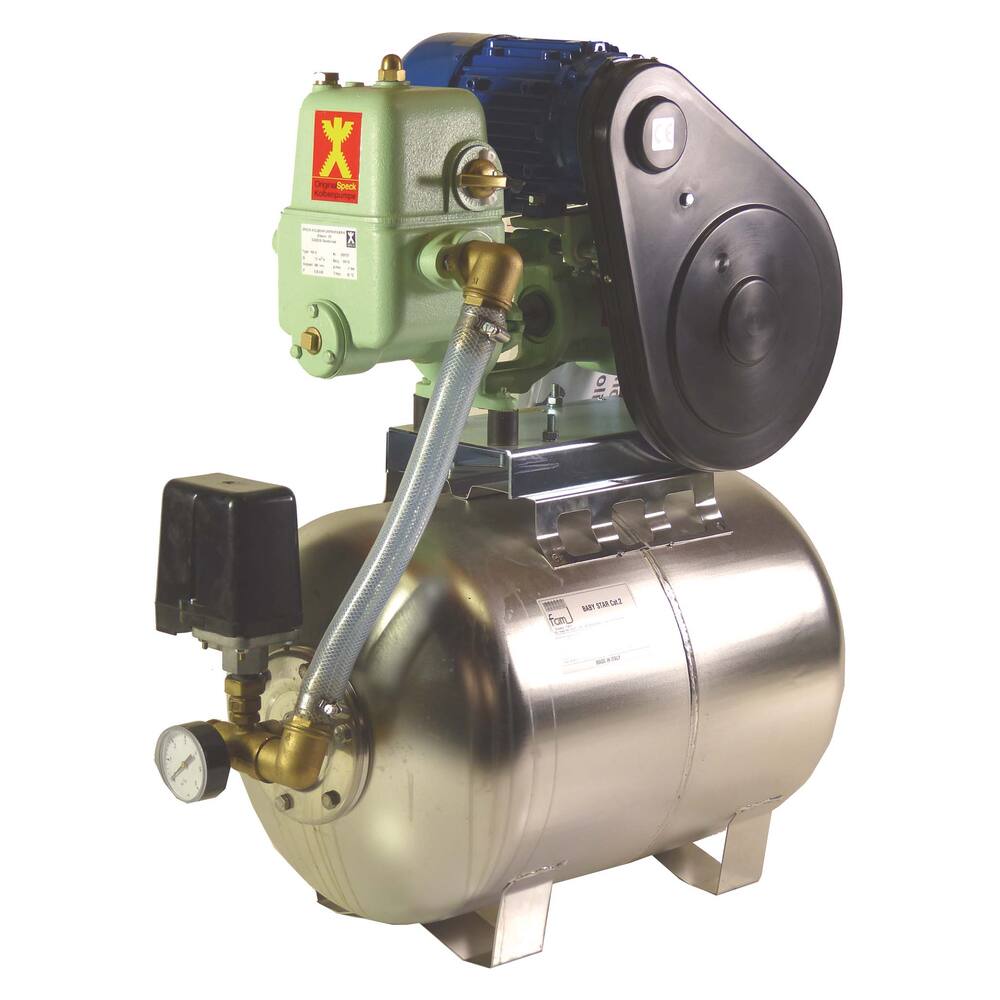

Speck Pressurized Water System PM10 + 50L Stainless Steel Membrane Vessel 400V
This water pressurization system is suitable for inland and seagoing shipping as well as recreational craft, maintaining top sales in inland shipping. It features a pressure vessel, non-return valve, manometer, pressure switch, and optionally an electric pump.
- Type: PM (Pumpmeister)
- Colour: light green
- Pump type: self-priming plunger pump
- Impeller type: plunger (piston)
- Motor type: brushless motor
- Shaft seal: stop bush
- Material plunger: Simrit
- Material cyl. bus: stainless steel
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids: clean water
- Capacity: 1,000 litres per hour at 3.5 bar
- Type pressure vessel: horizontal 50 l stainless steel membrane vessel with approx. 7 litres useful water capacity
- Switch on pressure: 2.0 bar
- Switch off pressure: 3.5 bar
- Suitable for: geyser and 2 or 3 draw off points* (not in use simultaneously)
- Dimensions: lxwxh = 675 x 350 x 775 mm**
- Weight: 57 kg**
- Amperage: 400 V, 0.8 A
- Shaft power: 0.25 kW, 0.33 hp at 1,450 rpm
- Must be connected by an accredited installer
- Most dimensions relate to 24 volt motor
- Product code: 97.62.010
- Number of tapping points: Geyser and 2-3 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Pressurized water
- Medium: Water
- Particle size: 2 mm
- Discharge head Max.: 35.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: -
- Free flow (L/Hour): 1000
- Capacity 5 meter (L/hour): 1000
-
