This professional water pressurization system offers flexibility for various marine applications by including all components except the motor, allowing customers to choose their preferred motor configuration from 12V DC, 24V DC, 230V, or 400V options. The system features a self-priming plunger pump housed in a 100L galvanized pressure vessel and is designed for inland shipping and recreational craft applications.
- Description
- Ask a Question
-

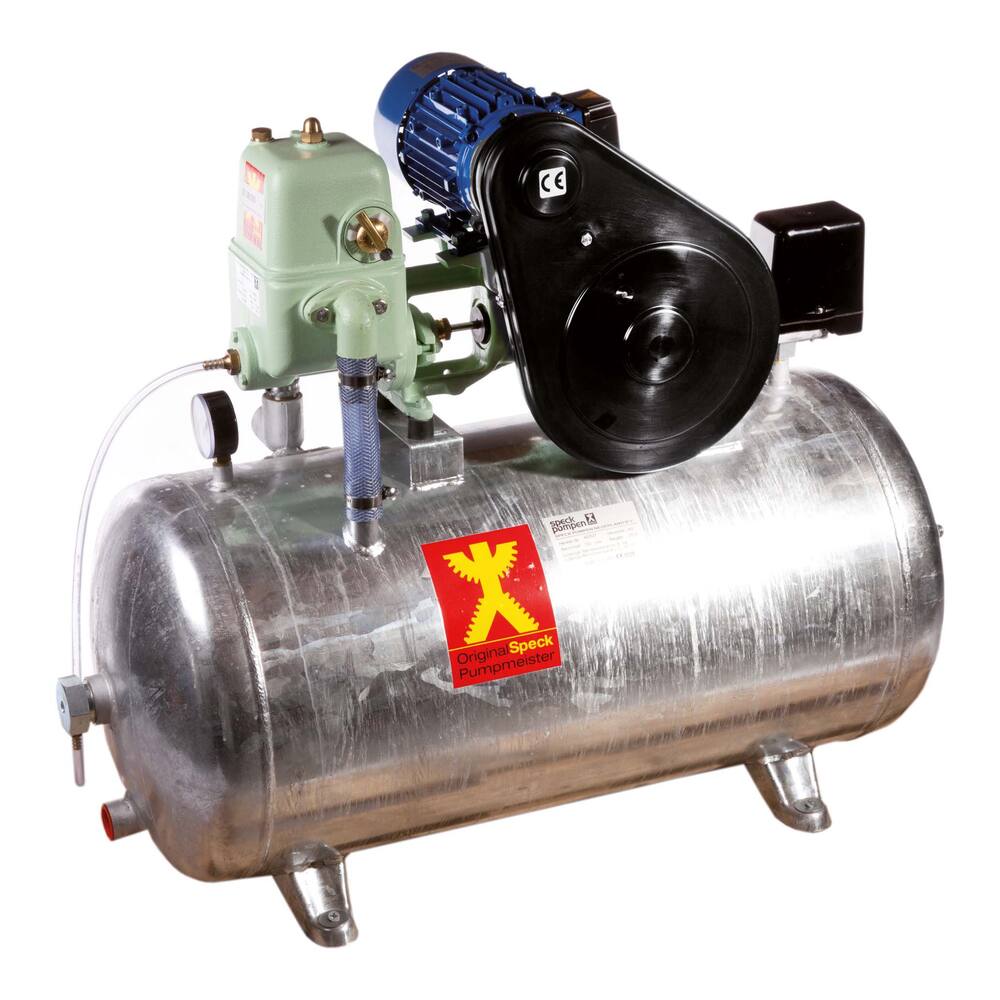

Speck Pressurized Water System PM10 + 100L Galvanised Vessel Without Motor
This professional water pressurization system is designed for inland and seagoing shipping as well as recreational craft. It has been a leading choice in inland shipping for many years. The system includes a pressure vessel, non-return valve, manometer, pressure switch, and can be equipped with an electric pump if needed.
- Type: PM (Pumpmeister)
- Colour: Light green
- Pump type: Self-priming plunger pump
- Impeller type: Plunger (piston)
- Motor type: Brushless motor
- Shaft seal: Stop bush
- Materials plunger: Simrit
- Materials cylinder bus: Stainless steel
- Materials pump housing: Cast iron
- Materials pump shaft: Stainless steel
- Liquids: Clean water
- Voltage options: 12 V DC, 24 V DC (2 year IDEAAL guarantee), 230 V mains, 400 V three phase
- Capacity: 1,000 litres per hour at 3.5 bar
- Pressure vessel: Horizontal 100 l galvanized vessel with approx. 15 litres useful water capacity
- Switch on pressure: 2.0 bar
- Switch off pressure: 3.5 bar
- Suitable for: Geyser and 2 or 3 draw off points (not in use simultaneously)
- Dimensions (lxwxh): 1000 x 430 x 760 mm (depends on motor type)
- Weight: 57 kg (depends on motor type)
- Amperage: 12 V - 35.0 A, 24 V - 17.4 A (Ideaal 15.0 A), 230 V - 3.1 A, 400 V - 0.8 A
- Shaft power: 0.25 kW, 0.33 hp at 1,450 rpm
- Must be connected by an accredited installer
- Product code: 97.66.002
- Number of tapping points: Geyser and 2-3 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Pressurized water
- Medium: Water
- Particle size: 2 mm
- Discharge head max.: 35.0 m
- Voltage: - (Without motor)
- Current, Frequency, Fuel: Not applicable
- Protection class: IP68
- ATEX: -
- Separate float switch: -
- Free flow: 1000 L/hour
- Capacity at 5 meter: 1000 L/hour
-
