ID
1317121
$ 5,584.41
1-2 weeks delivery time
-
+
This 24V DC water pressurization system is specifically designed for marine and recreational craft applications, featuring a reliable brushless motor with 2-year IDEAAL guarantee. The complete system includes a 100L galvanized pressure vessel, non-return valve, manometer, and pressure switch, delivering consistent performance for geyser and multiple draw-off points in inland shipping applications.
- Description
- Ask a Question
-

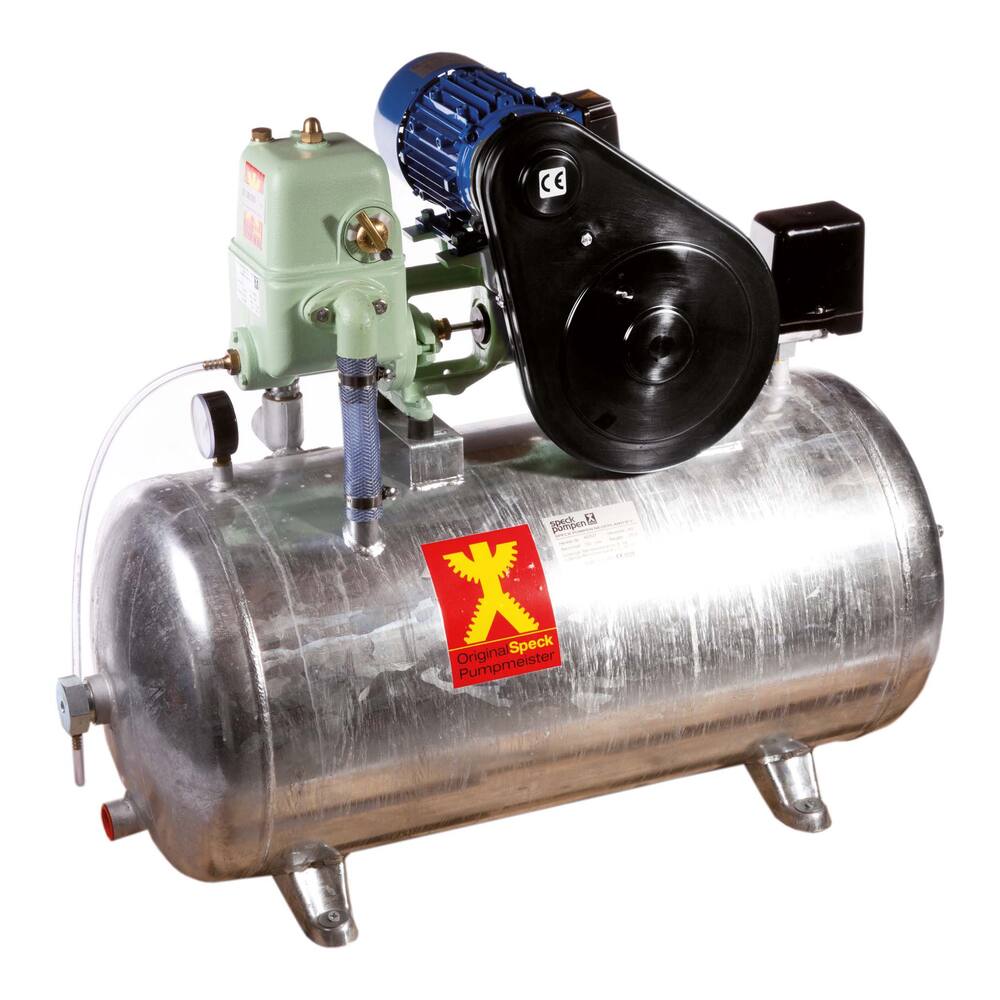

Speck Pressurized Water System PM10 + 100L Galvanised Vessel 24V
This water pressurization system is ideal for inland and seagoing shipping and recreational craft, recognized as a top-selling solution in inland shipping. It comes complete with a pressure vessel, non-return valve, manometer, pressure switch, and optionally an electric pump.
- Type: PM (Pumpmeister)
- Colour: Light green
- Pump type: Self-priming plunger pump
- Impeller type: Plunger (piston)
- Motor type: Brushless motor
- Shaft seal: Stop bush
- Materials plunger: Simrit
- Materials cylinder bus: Stainless steel
- Materials pump housing: Cast iron
- Materials pump shaft: Stainless steel
- Liquids: Clean water
- Voltage: 24 V DC (2 year IDEAAL guarantee)
- Capacity: 1,000 litres per hour at 3.5 bar
- Pressure vessel: Horizontal 100 l galvanized vessel with approx. 15 litres useful water capacity
- Switch on pressure: 2.0 bar
- Switch off pressure: 3.5 bar
- Suitable for: Geyser and 2 or 3 draw off points (not in use simultaneously)
- Dimensions (lxwxh): 1000 x 430 x 760 mm (depends on motor type)
- Weight: 57 kg (depends on motor type)
- Amperage: 24 V - 17.4 A (Ideaal 15.0 A)
- Shaft power: 0.25 kW, 0.33 hp at 1,450 rpm
- Must be connected by an accredited installer
- Product code: 97.66.005
- Number of tapping points: Geyser and 2-3 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1"
- Pump type: Pressurized water
- Medium: Water
- Particle size: 2 mm
- Discharge head max.: 35.0 m
- Current: DC
- Frequency, Fuel: Not applicable
- Protection class: IP68
- ATEX: No
- Separate float switch: -
- Free flow: 1000 L/hour
- Capacity at 5 meter: 1000 L/hour
-
