ID
1316875
$ 2,816.42
1-2 weeks delivery time
-
+
The Lowara BGM-5 20L Stainless Steel version offers reliable pressurization with complete stainless steel construction. This system delivers 1,560 L/h at 3.0 bar and includes a stainless steel pressure vessel. It features ceramic-carbon mechanical seals and operates on 230V AC with 1.5-3.5 bar pressure control.
- Description
- Ask a Question
-

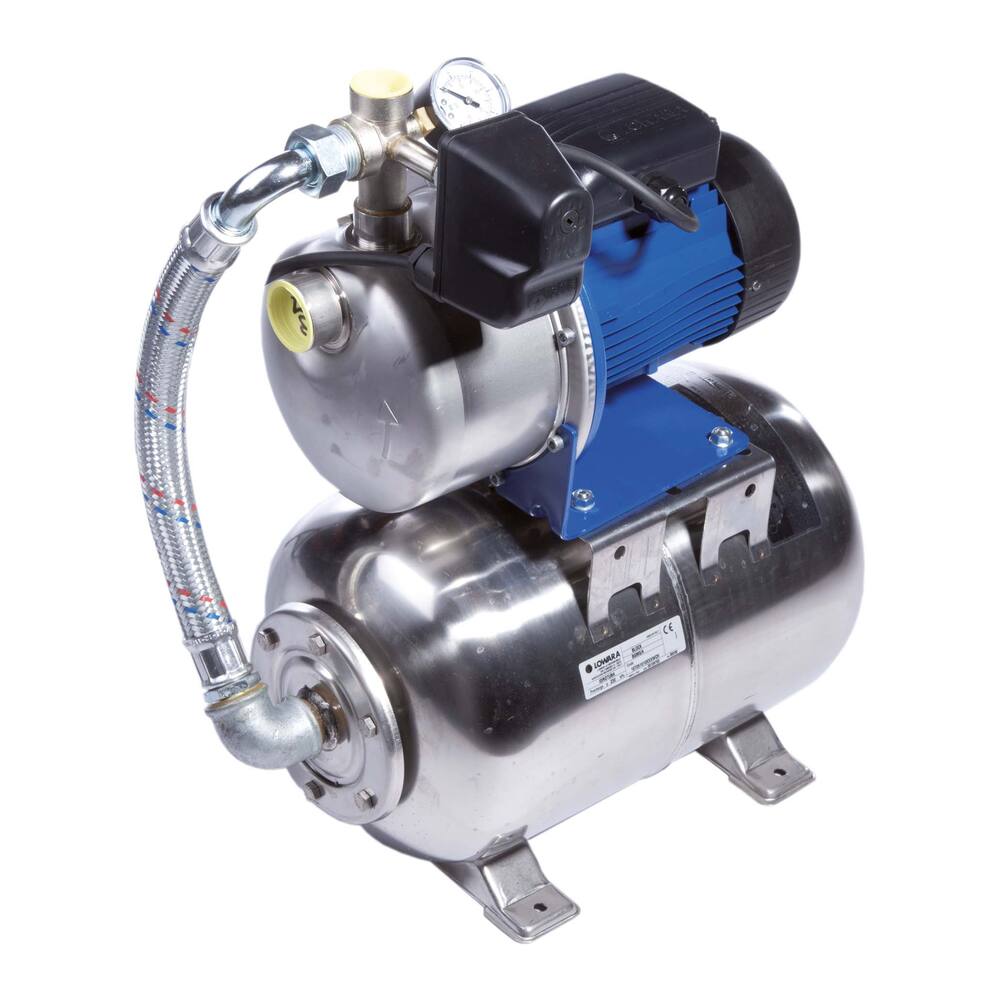

Lowara Pressurized Water System BGM-5 20L Stainless Steel 230V
A reliable pressurization system designed for homes or any location with mains voltage availability. It includes a steel or stainless steel butyl membrane pressure vessel, manometer, non-return valve, pressure switch, and an electric pump.
- Type: BGM-5
- Colour: white or stainless steel
- Pump type: self-priming centrifugal pump with closed impeller
- Motor type: brushless motor
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller, pump housing, and pump shaft: stainless steel 304
- Material vessel: stainless steel
- Other materials: brass
- Liquids handled: clean water
- Capacity: 1,560 litres per hour at 3.0 bar
- Suction height: 8.0 metres using foot valve
- Pressure vessel: horizontal 20 l steel or stainless steel butyl membrane with approx. 8 litres useful water capacity
- Switch on pressure: 1.5 bar
- Switch off pressure: 3.5 bar
- Dimensions (LxWxH): 660 x 290 x 610 mm
- Weight: 21.0 kg
- Amperage: 4.3 A
- Shaft power: 0.55 kW (0.75 hp), 2800 rpm
- Product code: 97.37.020
- Number of tapping points: geyser and 2 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1¼"
- Model: 20 Litre stainless steel container
- Pump type: pressurized water
- Medium: water
- Particle size: 2 mm
- Discharge head max: 35.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX certification: No
- Free flow: 1560 L/hour
- Capacity at 5 meter: 1560 L/hour
-
