The Lowara Diwa Pump 15T/B 400V is a stainless steel submersible centrifugal pump with a half-open impeller and dry motor, designed for shipping, construction, and industrial applications. It offers a high discharge head of 20.6 meters and pumps 23,400 liters per hour at 10 meters head, handling slightly contaminated water with mild chemicals and pumping down to 25 mm liquid level.
- Description
- Ask a Question
-

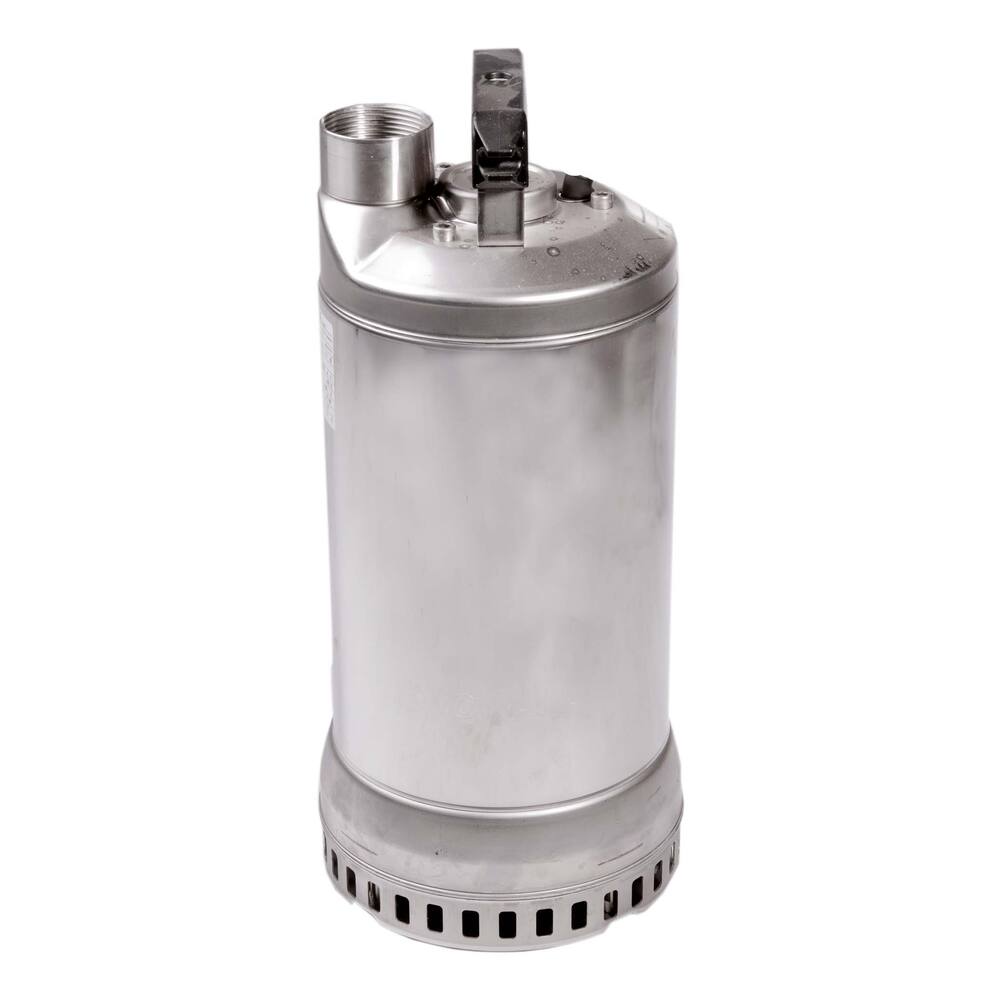

Lowara Diwa Pump 15T/B 400V
This well-crafted stainless steel cylinder pump offers excellent value, ideal for shipping, construction, and industrial uses. It is a reliable bilge and ballast pump with a high discharge head.
- Type: DIWA
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: half open impeller
- Motor type: dry motor
- Fuse: only 230 V model has inbuilt thermal safeguard
- Guarantee: no guarantee without MSS, especially not at 400 V
- Shaft seal: double seal with oil bath; lower seal mechanical silicon carbide on silicon carbide; upper seal nitrile rubber lip seal
- Maximum submersion depth: 7 metres
- Materials: impeller, impeller housing, motor housing stainless steel 304; pump shaft stainless steel 420
- Suitable liquids: slightly contaminated water and water with mild chemicals, continuously at 50°C
- Performance:
- 10 metres head: 23,400 litres per hour
- 15 metres head: 7,200 litres per hour
- Pumps down to 25 mm liquid level
- Particle size: 8 mm
- Connection: 1.1/2" internal thread
- Dimensions: diameter 178 mm, height 398 mm
- Weight: 16.5 kg
- Electrical: 400 V, 3.4 A, shaft power 1.5 kW (2.0 hp)
- Cable: 10 metre neoprene H07RN-F with earthed plug; no plug for 400 V version
- Product code: 90.17.153
- Pipe diameter pressure: 1.1/2"
- Maximum discharge head: 20.6 m
- Frequency: 50/60 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 25200 L/hour
- Capacity at 5 metre head: 24600 L/hour
-
