The Lowara Jet Pump BGM-11/A 230V is a robust stainless steel self-priming centrifugal pump with a jet system, suitable for garden irrigation, pressurization, and transferring mildly corrosive liquids in industrial, hospital, and laboratory settings. It has a closed stainless steel impeller, a 230 V induction motor with thermal safeguard, and offers flow rates from 4,500 L/h at 25 m head to 540 L/h at 50 m head, with a maximum discharge head of 53 m and a suction head of 8 m.
- Description
- Ask a Question
-

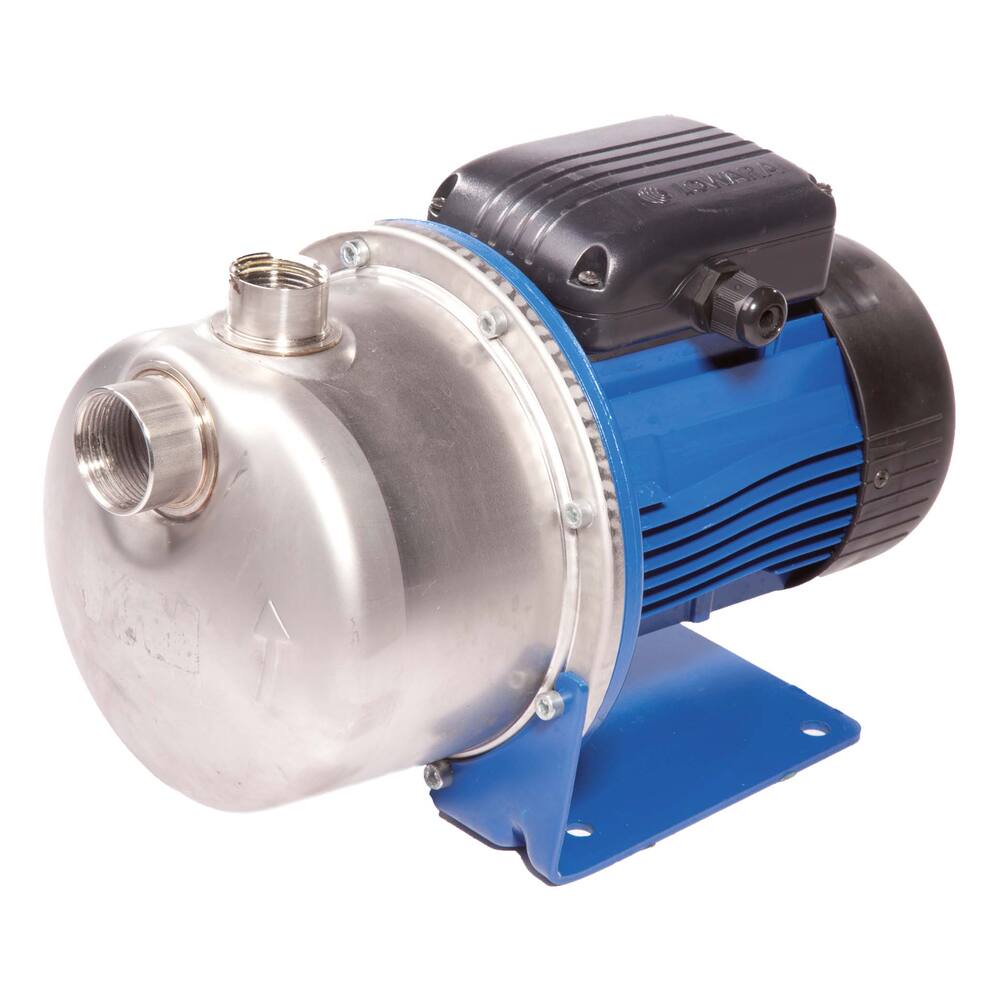

Lowara Jet Pump BGM-11/A 230V
This robust stainless steel pump suits a variety of applications such as garden irrigation, pressurization, and transferring mildly corrosive liquids in industrial, hospital, and laboratory settings.
- Type: JET-BGM
- Colour: stainless steel
- Pump type: self-priming centrifugal pump with jet system
- Impeller type: closed impeller
- Motor type: induction motor
- Fuse: 230 volt with inbuilt thermal safeguard
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: stainless steel 304
- Material impeller chamber: stainless steel 304
- Material ejector: thermoplastic
- Material pump housing: stainless steel 304
- Material pump shaft: stainless steel 304
- Liquids: clean low viscosity liquids without solids, max temperature 40°C
- Flow rates by head:
- 25 m: 4,500 litres/hour
- 30 m: 4,320 litres/hour
- 35 m: 3,240 litres/hour
- 40 m: 2,400 litres/hour
- 45 m: 1,440 litres/hour
- 50 m: 540 litres/hour
- Connection discharge: 1" internal thread
- Connection suction: 1.1/4" internal thread
- Dimensions (LxWxH): 383 x 215 x 223 mm
- Weight: 16 kg
- Amperage: 6.8 A
- Shaft power: 1.1 kW, 1.5 hp, 2800 rpm
- Product code: 93.37.450
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1.1/4"
- Pump type: Dry set-up, self-priming
- Medium: Water
- Particle size: 2 mm
- Discharge head max.: 53.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- Free flow: 4,500 L/hour
- Capacity at 5 meter: 4,500 L/hour
-
