ID
1316874
$ 2,205.45
1-2 weeks delivery time
-
+
The Lowara Pressurized Water System BGM-5 20L is ideal for home pressurization with mains voltage availability. It features a stainless steel centrifugal pump with 1,560 L/h capacity at 3.0 bar. The system includes a 20-litre horizontal membrane vessel with 8 litres useful water capacity and operates with 1.5-3.5 bar pressure control.
- Description
- Ask a Question
-

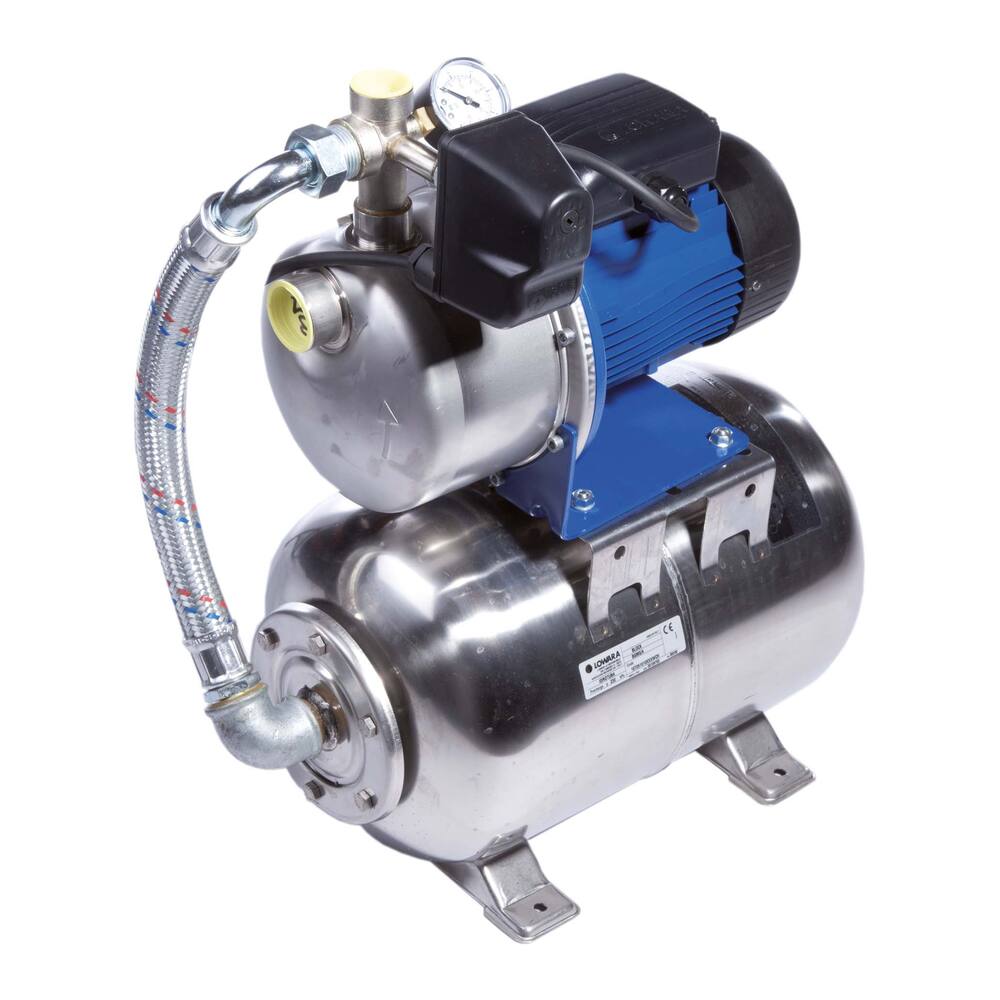

Lowara Pressurized Water System BGM-5 20L 230V
Ideal for home pressurization where mains voltage is present, this system is equipped with either a steel or stainless steel butyl membrane pressure vessel. It features a manometer, non-return valve, pressure switch, and electric pump for efficient water delivery.
- Type: BGM-5
- Colour: white or stainless steel
- Pump type: self-priming centrifugal pump
- Impeller type: closed
- Motor type: brushless motor
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: stainless steel 304
- Material pump housing: stainless steel 304
- Material pump shaft: stainless steel 304
- Material vessel: steel
- Material other parts: brass
- Liquids handled: clean water
- Capacity: 1,560 litres per hour at 3.0 bar
- Suction height: 8.0 metres using foot valve
- Type pressure vessel: horizontal 20 litre steel or stainless steel butyl membrane vessel with approx. 8 litres useful water capacity
- Switch on pressure: 1.5 bar
- Switch off pressure: 3.5 bar
- Dimensions (l x w x h): 660 x 290 x 610 mm
- Weight: 21.0 kg
- Amperage: 4.3 A
- Shaft power: 0.55 kW, 0.75 hp, 2800 rpm
- Product code: 97.37.010
- Number of tapping points: geyser and 2 tapping points
- Suction head: 8.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1.1/4"
- Model: 20 litre steel container
- Pump type: pressurized water
- Medium: water
- Particle size: 2 mm
- Discharge head max.: 35.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX certified: No
- Separate float switch: not included
- Free flow: 1,560 L/hour
- Capacity at 5 metres: 1,560 L/hour
-
