The Koshin Pump FS-3224S 24V is a robust self-priming centrifugal pump designed for commercial shipping and heavy-duty applications. Constructed from sea water resistant aluminium and stainless steel, it efficiently pumps clean and slightly contaminated liquids including gas oil, petrol, spindle oil, water, and sea water (excluding FS-12D). It offers high flow rates, reaching up to 6000 liters per hour free flow, and supports a maximum discharge head of 18.5 meters.
- Description
- Ask a Question
-

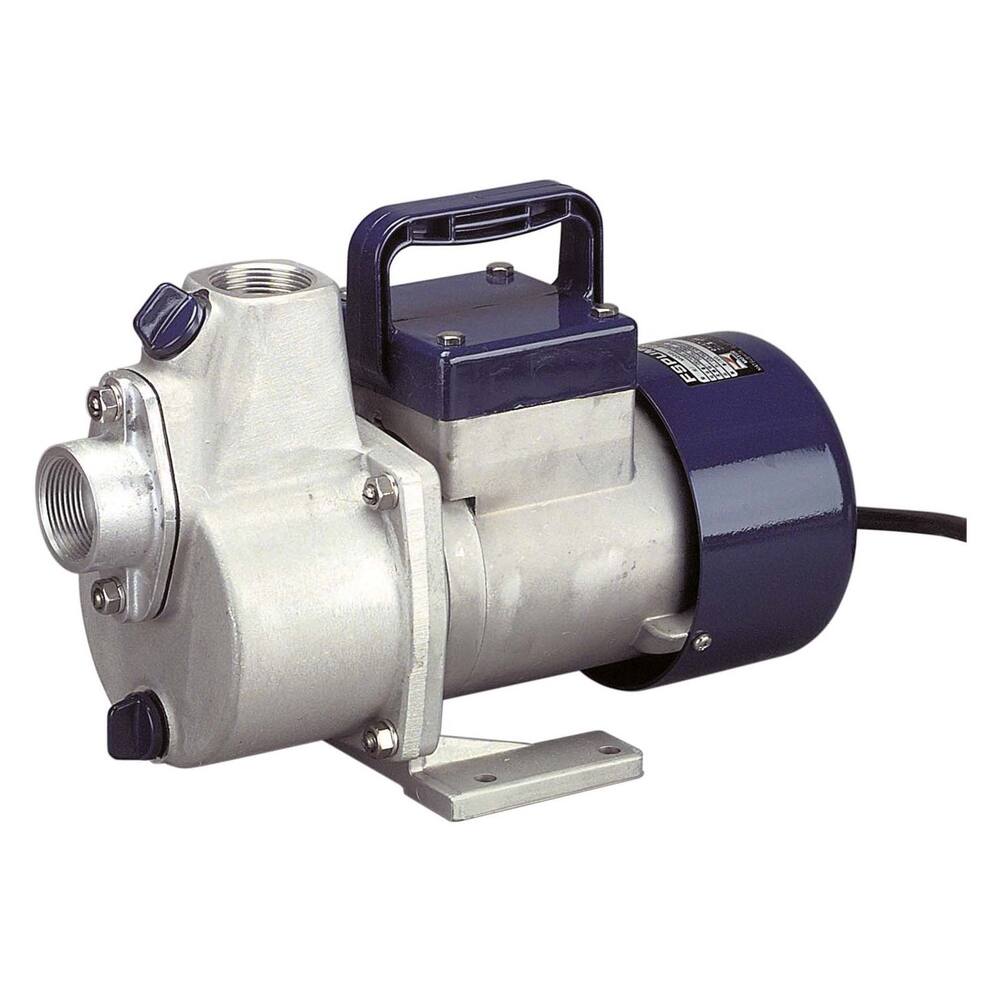

Koshin Pump FS-3224S 24V
The FS-3224S is a robust self-priming centrifugal pump tailored for commercial shipping, large pleasure craft, construction, transport, and mobile cranes. Its construction from sea water resistant aluminium and stainless steel parts ensures effective pumping of clean and slightly contaminated liquids including gas oil, petrol, spindle oil, water, and sea water (excluding FS-12D). It delivers high flow rates at varying head pressures, making it versatile and efficient.
- Type: FS
- Colour: blue with aluminium
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Motor type: completely closed brush motor with fan cooling
- Fuse: NOT inbuilt
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: sea water resistant aluminium
- Material impeller housing: sea water resistant aluminium
- Material pump housing: sea water resistant aluminium
- Material pump shaft: stainless steel
- Liquids: clean and slightly contaminated gas oil, petrol, spindle oil, water and sea water (no sea water for FS-12D)
- Voltage: 24 V DC
- Flow rate at 10 metres head: 3,900 litres per hour
- Flow rate at 15 metres head: 1,500 litres per hour
- Connections: 1.1/4" hose connection and 1.1/4" internal thread
- Dimensions: lxwxh = 283 x 122 x 154 mm
- Weight: 8.0 kg
- Amperage: 16 A
- Shaft power: 0.2 kW, 0.26 hp, 6200 rpm
- Product code: 93.10.324
- Suction head: 5.0 m
- Pipe diameter pressure: 1.1/4"
- Pipe diameter suction: 1.1/4"
- Pump type: Dry set-up pump: self-priming
- Medium: Water, Sea water, Gasoil
- Particle size: 2 mm
- Discharge head Max.: 18.5 m
- Voltage: 24 V
- Current: DC
- Protection class: IP68
- ATEX: No
- Free flow (L/Hour): 6000
- Capacity 5 meter (L/hour): 4800
-
