ID
1316852
$ 1,727.67
1-2 weeks delivery time
-
+
The Koshin PBX7 Sand Ponstar 230V Pump is a versatile yellow submersible centrifugal pump suitable for sandy water in shipping, fisheries, construction, and industry. It features an open or closed polyurethane impeller, dry motor, and four-piece shaft seal, pumping up to 19,200 liters per hour with a maximum discharge head of 15 meters, and is designed to run dry indefinitely.
- Description
- Ask a Question
-

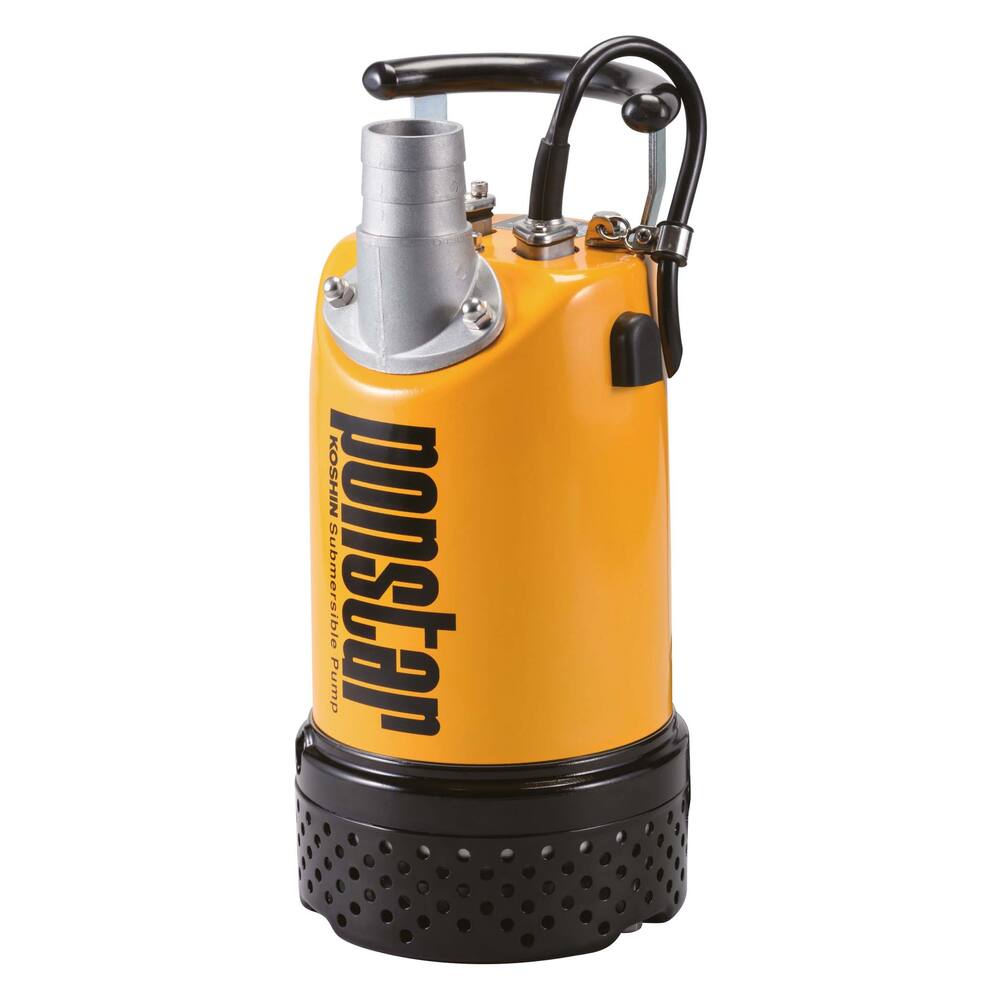

Koshin PBX7 - Sand Ponstar 230V Pump
This pump is a versatile modern cylinder model suitable for inland and seagoing shipping, fisheries, construction, industry, and dewatering. It delivers professional quality at an excellent price and is designed for use in sandy water. It can run dry indefinitely, including two air valves for safety. Each pump is rigorously tested with water for volume, pressure, and power consumption.
- Type: PBX
- Colour: yellow
- Pump type: fully submersible centrifugal pump
- Impeller type: open or closed impeller
- Motor type: dry motor
- Fuse: built-in thermal fuse
- Shaft seal: 4 pieces, upper part carbon ceramic with sealing lip, separated by oil chamber from silicon carbide seal on silicon carbide with sealing lip
- Immersion depth: maximum 6 metres
- Material impeller: polyurethane
- Material impeller housing: steel with polyurethane coating
- Material motor housing: steel with epoxy coating
- Material pump shaft: stainless steel
- Liquids: contaminated water with solid components, max temperature 40°C
- 10 metres head capacity: 6,500 litres per hour
- Pumps down to: 35 mm
- Impeller type: open impeller
- Connection: 2" external thread and 2" hose connection
- Dimensions: diameter 190 mm, height 405 mm
- Weight: 16.5 kg
- Amperage: 6.5 A
- Shaft power: 0.75 kW, 1.0 hp, 2800 rpm
- Cable: 10 metre neoprene H07RN-F with earthed plug
- Product code: 90.22.207
- Pipe diameter pressure: 2"
- Pipe diameter suction: -
- Pump type: submersible pump
- Medium: water with sand
- Particle size: 6 mm
- Discharge head max.: 15.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow (L/hour): 19200
- Capacity at 5 meter (L/hour): 13500
-
