The Koshin PBX4-A Sand Ponstar 230V Ball Float Pump is a yellow, fully submersible centrifugal pump designed for sandy water and dewatering tasks, featuring a dry motor, four-piece shaft seal, and polyurethane impeller. It can run dry indefinitely, includes two air valves for protection, and offers a free flow of 18,600 liters per hour with a maximum discharge head of 9.5 meters, and it comes with a separate float switch.
- Description
- Ask a Question
-

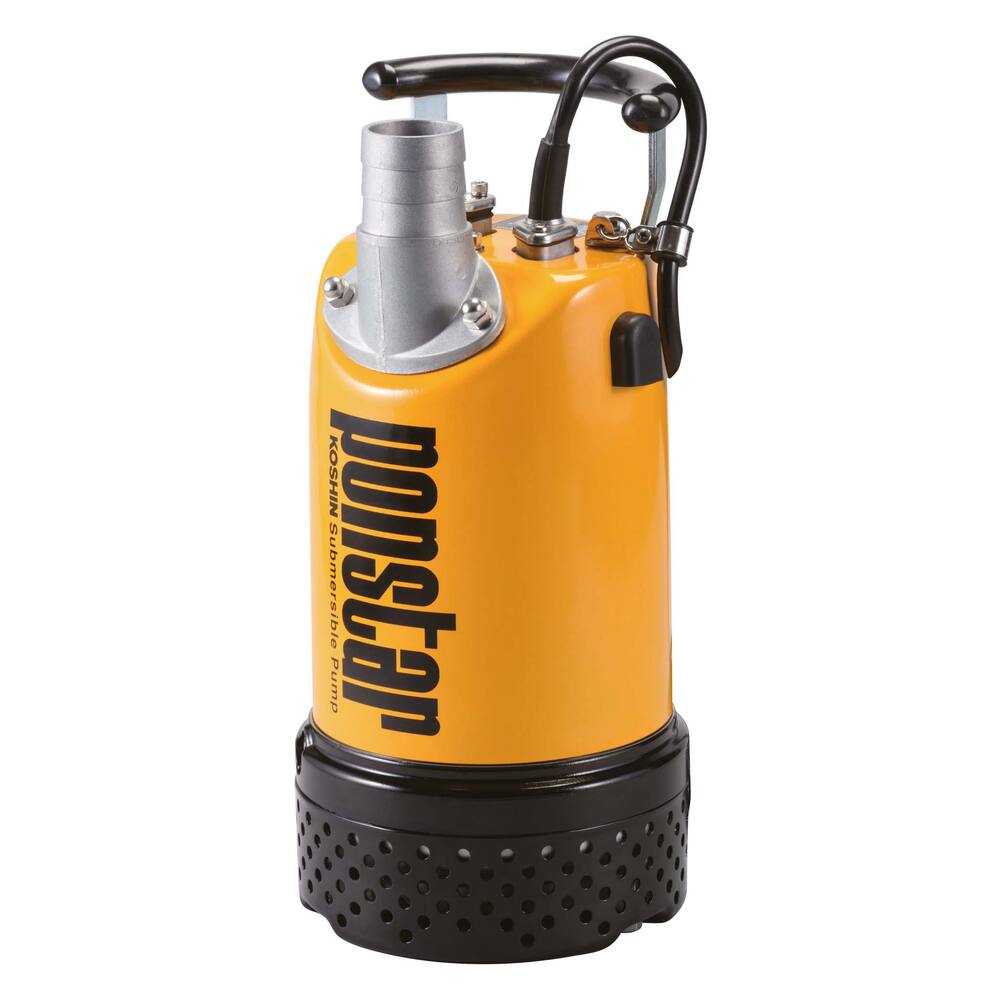

Koshin PBX4-A - Sand Ponstar 230V Ball Float Pump
This modern cylinder pump is designed for diverse applications including inland and seagoing shipping, fisheries, construction, industry, and dewatering tasks. It offers professional-grade quality at an attractive price and is well-suited for pumping sandy water. The pump can run dry indefinitely, featuring two air valves for protection. Each unit undergoes water testing during operation to verify volume, pressure, and power consumption.
- Type: PBX
- Colour: yellow
- Pump type: fully submersible centrifugal pump
- Impeller type: open impeller
- Motor type: dry motor
- Fuse: built-in thermal fuse
- Shaft seal: 4 pieces, upper part carbon ceramic with sealing lip, separated by oil chamber from silicon carbide seal on silicon carbide with sealing lip
- Immersion depth: maximum 6 metres
- Material impeller: polyurethane
- Material impeller housing: steel with polyurethane coating
- Material motor housing: steel with epoxy coating
- Material pump shaft: stainless steel
- Liquids: contaminated water with solid components, max temperature 40°C
- Pumps down to: 35 mm
- Connection: 2" external thread and 2" hose connection
- Dimensions: diameter 190 mm, height 405 mm
- Weight: 15.5 kg
- Amperage: 3.6 A
- Shaft power: 0.4 kW, 0.53 hp, 2800 rpm
- Cable: 10 metre neoprene H07RN-F with earthed plug
- Product code: 90.22.205
- Pipe diameter pressure: 2"
- Pipe diameter suction: -
- Pump type: submersible pump
- Medium: water
- Particle size: 6 mm
- Discharge head max.: 9.5 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: Yes
- Free flow (L/hour): 18600
- Capacity at 5 meter (L/hour): 10500
-
