ID
1316847
$ 1,614.97
1-2 weeks delivery time
-
+
The Koshin GM-2524H is a green and aluminium gearwheel pump designed for pressurizing marine engine lubricating oil systems and pumping oil where 230V power is unavailable. It features an inbuilt overflow valve, a dust- and waterproof brush motor, and is suitable for clean lubricating oil with a maximum viscosity of 800 centistokes. The pump operates at 24 V DC, has a maximum running time of 25 minutes, and delivers up to 1,050 litres per hour at 10 metres head, weighing 10 kg with dimensions of 300 x 150 x 210 mm.
- Description
- Ask a Question
-

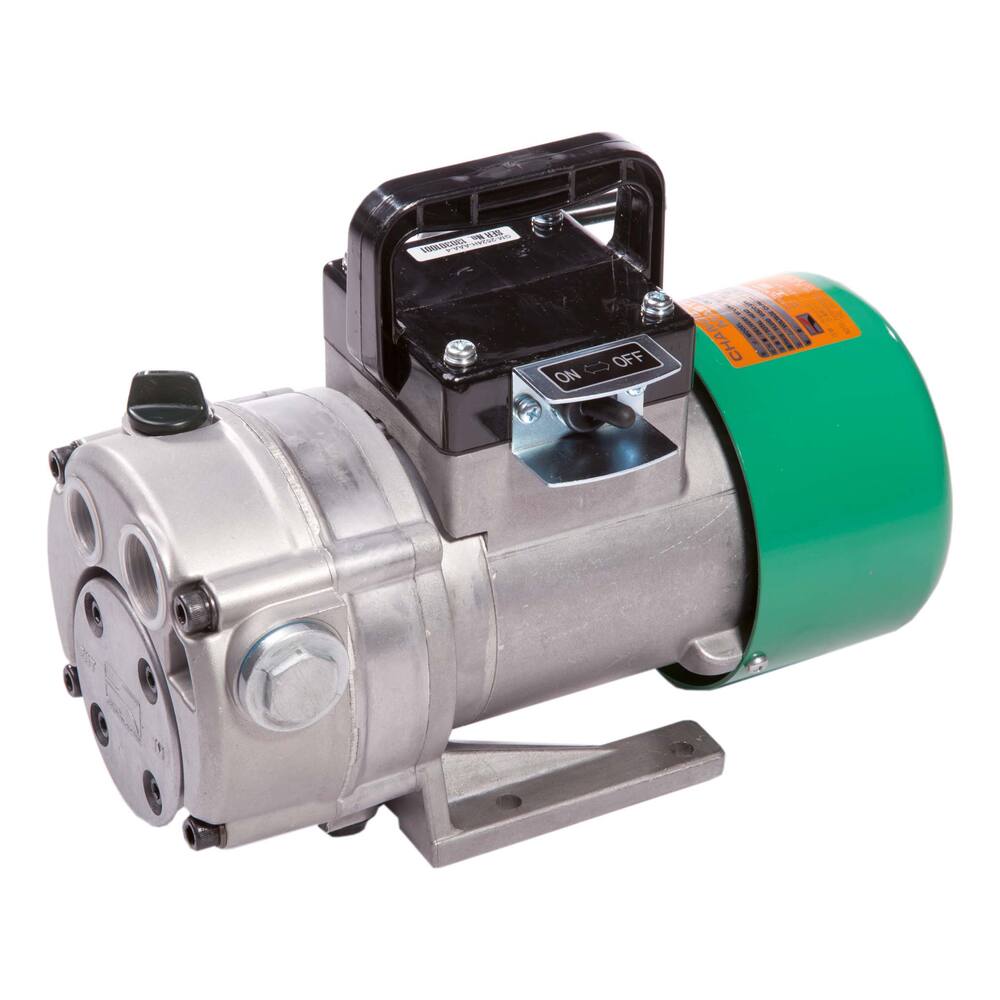

Koshin GM-2524H - Gearwheel Pump 24V
This green and aluminium gearwheel pump is ideal for pressurizing marine engine lubricating oil systems and pumping out oil drums where 230V power is unavailable. It includes an inbuilt overflow valve and a dust- and waterproof brush motor for reliability.
- Type: GM
- Colour: green with aluminium
- Special feature: inbuilt overflow valve
- Pump type: gearwheel pump, limited self-priming
- Impeller type: steel gearwheels
- Motor type: dust and waterproof brush motor
- Fuse: NOT inbuilt
- Shaft seal: lip seal
- Materials: impeller - steel gearwheels; pump housing - aluminium; pump shaft - stainless steel
- Liquids: clean lubricating oil and neutral low viscosity liquids with lubricating properties
- Running time: 25 minutes max, not continuous
- Viscosity limit: max 800 centistokes / 110 Engler (approx. SAE 20 at 0°C)
- Capacities (measured with water):
- 10 metres head: 1,050 litres/hour
- 15 metres head: 960 litres/hour
- Suction head: depends on viscosity
- Particle size: zero
- Dimensions (LxWxH): 300 x 150 x 210 mm
- Weight: 10.0 kg
- Amperage: 16.0 A
- Shaft power: 0.2 kW, 0.26 hp, 6200 rpm
- Cable: 5 metre without plug, with inbuilt switch on pump
- Product code: 93.90.224
- Suction head: 1.0 m
- Pipe diameter pressure: 3/4"
- Pipe diameter suction: 1"
- Medium: Lubricating oil
- Particle size tolerance: 2 mm
- Discharge head max: 20.0 m
- Voltage: 24 V DC
- Protection class: IP68
- ATEX: No
- Free flow: 1200 L/hour
- Capacity at 5 meter: 1125 L/hour
-
