$ 1,186.55
1-2 weeks delivery time
-
+
The Koshin PBX4 Sand Ponstar 230V Pump is a yellow, fully submersible centrifugal pump built for sandy water environments in shipping, fisheries, construction, and industry. It features a dry motor, four-part shaft seal, and polyurethane impeller, capable of running dry indefinitely and pumping contaminated water with solids up to 18,600 liters per hour, with a maximum discharge head of 9.5 meters.
- Description
- Ask a Question
-

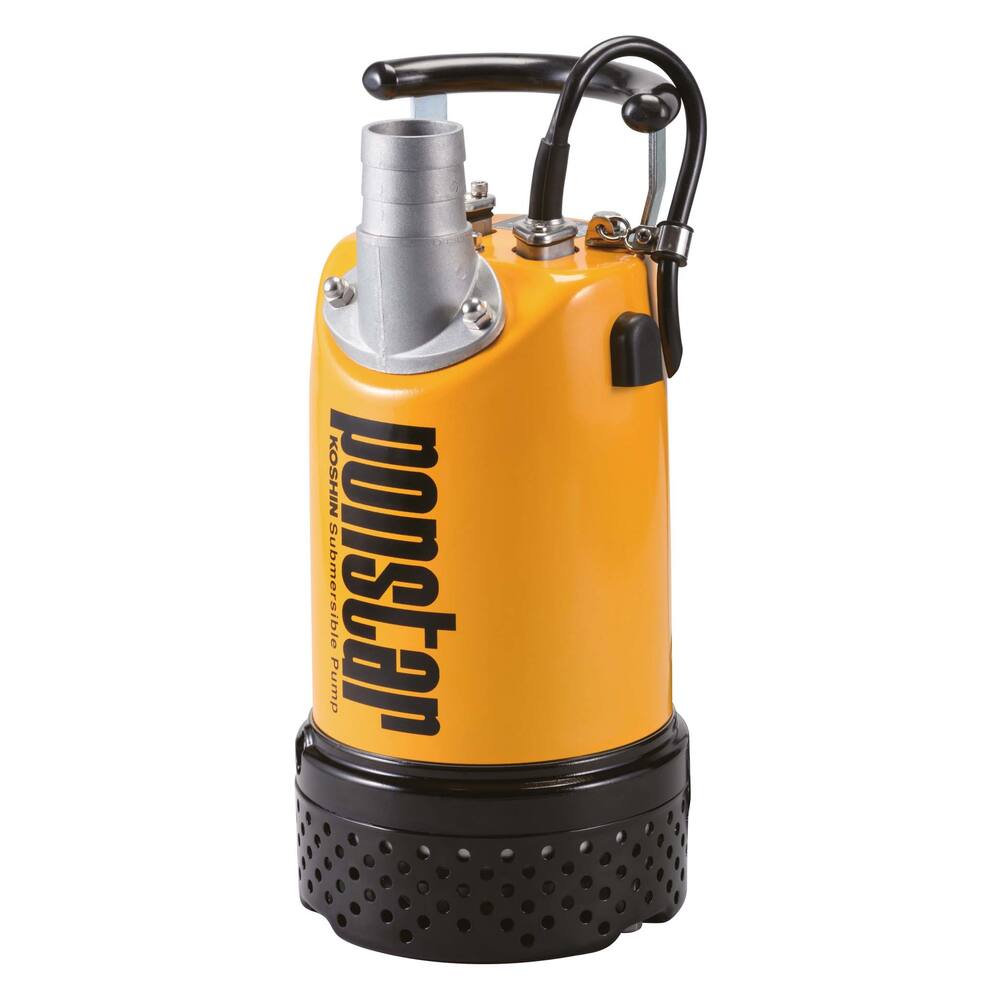

Koshin PBX4 - Sand Ponstar 230V Pump
Engineered for use in inland and seagoing shipping, fisheries, construction, and industry, as well as dewatering tasks, this pump is built for sandy water environments and designed to run dry indefinitely. It features two air valves and undergoes thorough testing for volume, pressure, and power consumption.
- Type: PBX
- Colour: yellow
- Pump type: fully submersible centrifugal pump
- Impeller type: open impeller
- Motor type: dry motor
- Fuse: built-in thermal fuse
- Shaft seal: four-part with upper carbon ceramic and sealing lip, oil chamber isolation, silicon carbide seal with sealing lip
- Maximum immersion depth: 6 metres
- Material impeller: polyurethane
- Material impeller housing: steel with polyurethane coating
- Material motor housing: steel with epoxy coating
- Material pump shaft: stainless steel
- Suitable liquids: contaminated water with solid components, max temperature 40°C
- Minimum pumping level: 35 mm
- Connection: 2" external thread and 2" hose connection
- Dimensions: diameter 190 mm, height 405 mm
- Weight: 15.5 kg
- Amperage: 3.6 A
- Shaft power: 0.4 kW (0.53 hp), 2800 rpm
- Cable: 10 metre neoprene H07RN-F with earthed plug
- Product code: 90.22.204
- Pipe diameter pressure: 2"
- Particle size capacity: 6 mm
- Maximum discharge head: 9.5 m
- Voltage: 230 V AC, 50 Hz
- Protection class: IP68
- ATEX certified: No
- Separate float switch: No
- Free flow rate: 18,600 L/hour
- Capacity at 5 metre head: 10,500 L/hour
-
