ID
1316853
$ 1,908.58
1-2 weeks delivery time
-
+
The Koshin PBX7-A Sand Ponstar 230V Ball Float Pump is a sturdy yellow submersible centrifugal pump optimized for sandy water and dewatering projects. It features an open or closed polyurethane impeller, dry motor, and four-piece shaft seal, delivering 19,200 liters per hour at a maximum discharge head of 15 meters, and includes a separate float switch for automatic operation.
- Description
- Ask a Question
-

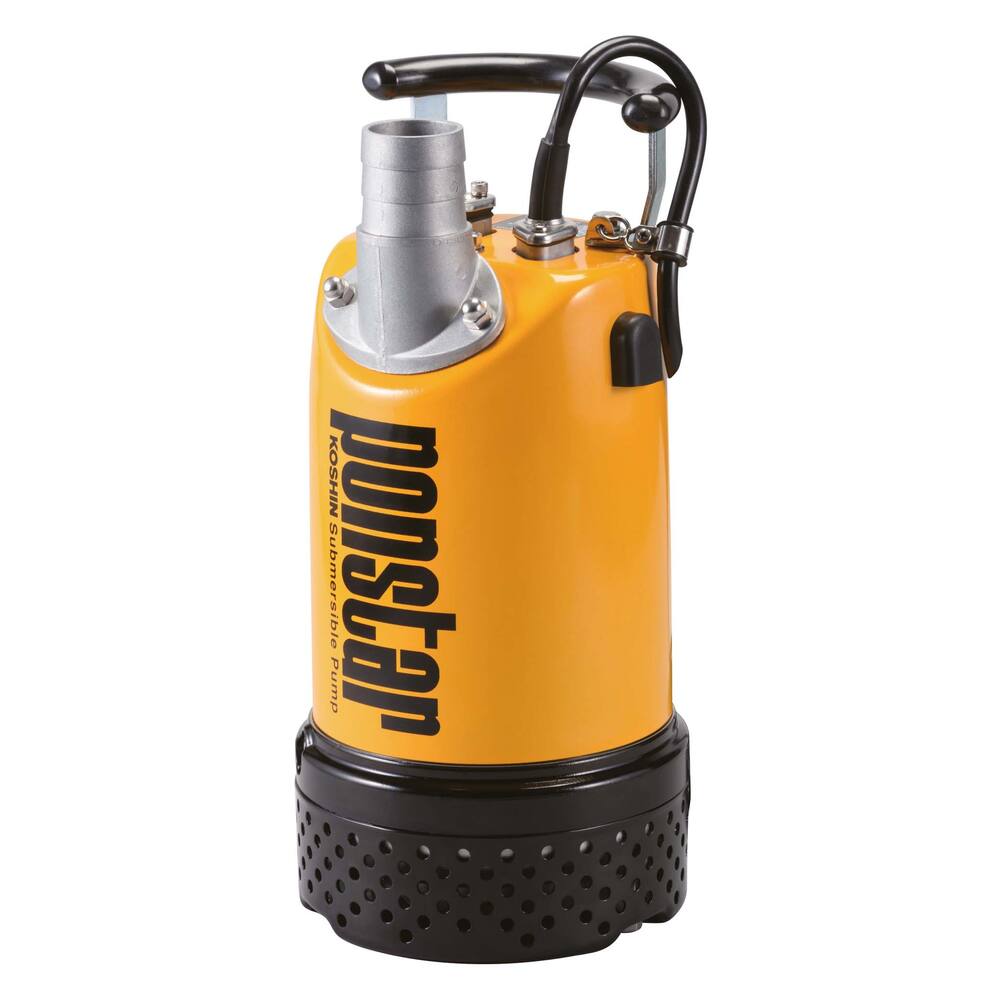

Koshin PBX7-A - Sand Ponstar 230V Ball Float Pump
This sturdy modern cylinder pump is ideal for inland and seagoing shipping, fisheries, construction, industry, and dewatering projects. It combines professional quality with affordability and is optimized for sandy water. The pump can operate dry indefinitely and includes two air valves for protection. Each unit is tested with water during operation to confirm volume, pressure, and power consumption.
- Type: PBX
- Colour: yellow
- Pump type: fully submersible centrifugal pump
- Impeller type: open or closed impeller
- Motor type: dry motor
- Fuse: built-in thermal fuse
- Shaft seal: 4 pieces, upper part carbon ceramic with sealing lip, separated by oil chamber from silicon carbide seal on silicon carbide with sealing lip
- Immersion depth: maximum 6 metres
- Material impeller: polyurethane
- Material impeller housing: steel with polyurethane coating
- Material motor housing: steel with epoxy coating
- Material pump shaft: stainless steel
- Liquids: contaminated water with solid components, max temperature 40°C
- 10 metres head capacity: 6,500 litres per hour
- Pumps down to: 35 mm
- Impeller type: open impeller
- Connection: 2" external thread and 2" hose connection
- Dimensions: diameter 190 mm, height 405 mm
- Weight: 16.5 kg
- Amperage: 6.5 A
- Shaft power: 0.75 kW, 1.0 hp, 2800 rpm
- Cable: 10 metre neoprene H07RN-F with earthed plug
- Product code: 90.22.208
- Pipe diameter pressure: 2"
- Pipe diameter suction: -
- Pump type: submersible pump
- Medium: water
- Particle size: 6 mm
- Discharge head max.: 15.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: Yes
- Free flow (L/hour): 19200
- Capacity at 5 meter (L/hour): 13500
-
