ID
1316844
$ 879.20
1-2 weeks delivery time
-
+
The Koshin Pump FS-12D 12V is a professional self-priming centrifugal pump designed for clean and slightly contaminated liquids, excluding seawater. It features an open resin impeller, sea water resistant aluminum housing, and a closed brush motor running at 12V DC, pumping up to 2,400 liters per hour with a maximum discharge head of 8.5 meters.
- Description
- Ask a Question
-

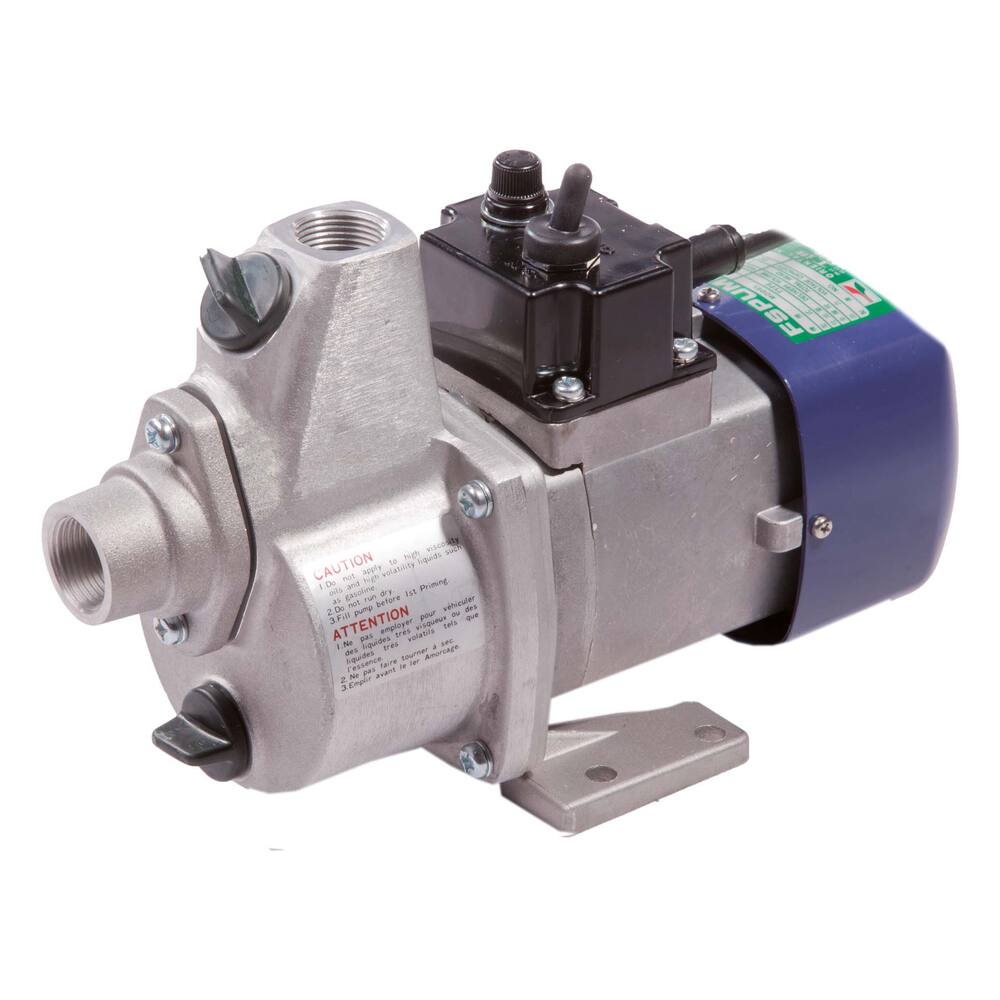

Koshin Pump FS-12D 12V
The Koshin Pump FS-12D is a professional self-priming centrifugal pump designed for commercial shipping, large pleasure crafts, construction, transport and mobile cranes. It is optimized for clean and slightly contaminated liquids, excluding seawater for this model.
- Type: FS
- Colour: blue with aluminium
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Motor type: completely closed brush motor with fan cooling
- Fuse: NOT inbuilt
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: resin
- Material impeller housing: sea water resistant aluminium
- Material pump housing: sea water resistant aluminium
- Material pump shaft: stainless steel
- Liquids handled: clean and slightly contaminated gas oil, diesel, kerosine, spindle oil, water (no sea water for FS-12D)
- Connections: 3/4" hose connection and 3/4" internal thread
- Dimensions (L×W×H): 263 × 126 × 180 mm
- Weight: 4.1 kg
- Amperage: 12 V, 15 A
- Shaft power: 0.08 kW, 0.1 hp, 7300 rpm
- Product code: 93.10.012
- Suction head: 3.0 m
- Pipe diameter pressure: 3/4"
- Pipe diameter suction: 3/4"
- Pump type: Dry set-up pump: self-priming
- Medium: Water; Lubricating oil; Gasoil
- Particle size: 2 mm
- Max discharge head: 8.5 m
- Voltage: 12 V
- Current: DC
- Protection class: IP68
- ATEX: No
- Free flow: 2,400 L/hour
- Capacity at 5 meters: 1,320 L/hour
-
