ID
1316849
$ 702.48
1-2 weeks delivery time
-
+
The Koshin PX-55022 Ponstar 230V Aluminum pump is a modern, black submersible centrifugal pump designed for demanding environments such as shipping, fisheries, construction, and industry. It features a dry motor, a three-part shaft seal system, and an aluminum motor housing with ceramic coating, capable of handling contaminated water with solids and acidity up to 50°C, pumping up to 16,800 liters per hour with a maximum discharge head of 10 meters.
- Description
- Ask a Question
-

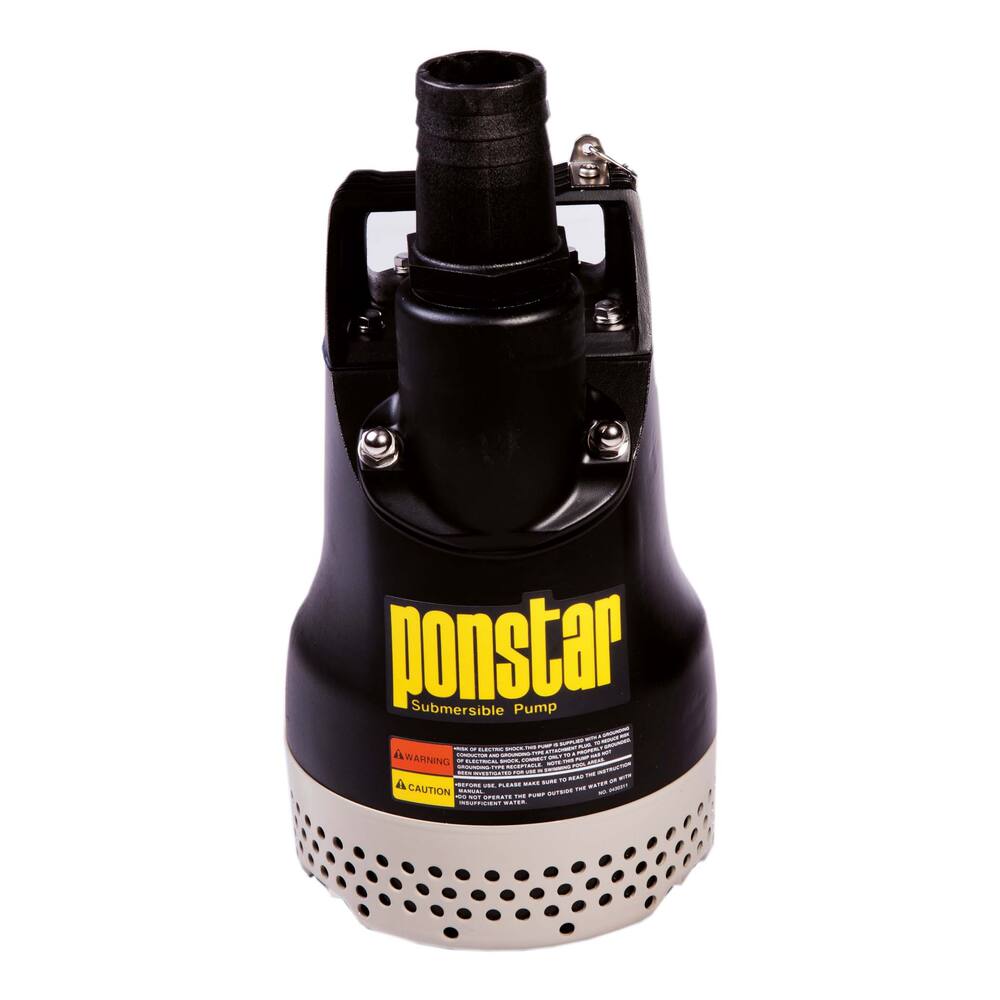

Koshin PX-55022 - Ponstar 230V Aluminum
Designed for demanding environments like inland and seagoing shipping, fisheries, construction, and industry, this modern cylinder pump offers professional-grade performance at a competitive price.
- Type: PX
- Colour: black
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: dry motor
- Fuse: inbuilt thermal safeguard
- Shaft seal: three-part system with upper ceramic on carbon, oil chamber isolation, and silicon carbide on silicon carbide seal plus VR lip seal
- Maximum submersion depth: 5 metres
- Material impeller: NBR rubber with steel core
- Material impeller housing: NBR rubber
- Material motor housing: aluminium with ceramic coating
- Material pump shaft: stainless steel
- Suitable liquids: contaminated water with solids and high acidity, up to 50°C
- Minimum pumping level: 20 mm
- Connection: 2" hose connection and 2" internal thread
- Dimensions: diameter 180 mm, height 310 mm
- Weight: 13.0 kg
- Amperage: 3.2 A
- Shaft power: 0.62 kW (0.84 hp), 2900 rpm
- Cable: 10 metre neoprene H07RN-F with earthed plug
- Product code: 90.20.852
- Pipe diameter pressure: 2"
- Particle size capacity: 6 mm
- Maximum discharge head: 10.0 m
- Voltage: 230 V AC, 50 Hz
- Protection class: IP68
- ATEX certified: No
- Separate float switch: No
- Free flow rate: 16,800 L/hour
- Capacity at 5 metre head: 15,000 L/hour
-
