The Hewa Pump 50/075 400V is a deck wash and bilge pump crafted from original K&R SAE pump moulds, offering dependable pressure and volume for various applications including firefighting and irrigation. It features a bronze impeller and wear plate, cast iron housing, stainless steel shaft, and handles liquids with coarse particles up to 8 mm, delivering up to 55,250 liters per hour at 10 meters head with a 7.5 kW motor.
- Description
- Ask a Question
-

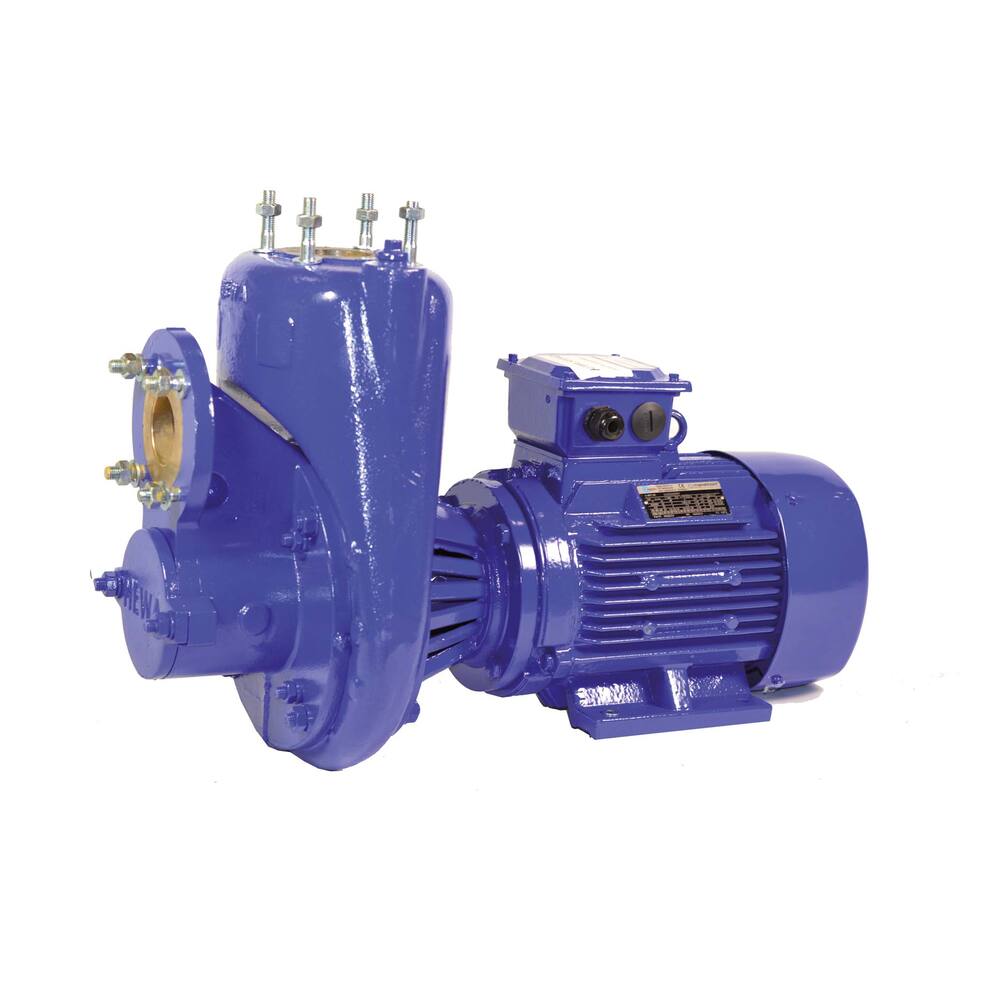

Hewa Pump 50/075 400V
Deck wash and bilge pump crafted from original moulds of the former K&R SAE pump series. These pumps deliver dependable performance with notable pressure and volume, making them a cost-effective and trustworthy choice. Ideal for deck washing, jet-washing holds, firefighting, overhead irrigation, ballast water handling, drainage, and general service pumping.
- Type: HEWA
- Colour: blue
- Type pump: self-priming centrifugal pump
- Impeller type: open impeller
- Type of motor: squirrel-cage motor
- Fuse: NOT built-in
- Insulation class: IP55
- Seal: carbon on SiC mechanical seal with viton
- Material impeller: bronze
- Material wear plate: bronze
- Material pump housing: cast iron
- Material pump shaft: Stainless steel A4
- Liquids: clean and contaminated liquids with relatively coarse constituents, such as water, sea water, etc.
- Performance at various heads:
- 10 m: 55,250 litres/hour
- 15 m: 55,000 litres/hour
- 20 m: 52,250 litres/hour
- 25 m: 46,000 litres/hour
- 30 m: 39,250 litres/hour
- 35 m: 31,000 litres/hour
- 40 m: 22,000 litres/hour
- 45 m: 3,000 litres/hour
- Dimensions (LxWxH): 673 x 215 x 418 mm
- Weight: 120 kg
- Current: 14.3 amp
- Shaft power: 7.5 kW, 10.0 hp, 2,900 rpm
- Product code: 92.07.631
- Suction head: 8.0 m
- Pipe diameter pressure: DN 50 Flange
- Pipe diameter suction: DN 50 Flange
- Pump type: Dry set-up pump, self-priming
- Medium: Water, water with coarse components
- Particle size max: 8 mm
- Max discharge head: 46.0 m
- Voltage: 400 V
- Current type: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: None
- Free flow rate: 56,250 L/hour
- Capacity at 5 m head: 56,000 L/hour
-
