ID
1316838
$ 6,903.22
1-2 weeks delivery time
-
+
The Hewa Pump 80/110 400V is a deck wash and bilge pump modeled on original K&R SAE pump series moulds, offering reliable and powerful performance with impressive pressure and volume at an affordable price. It is suitable for various applications including deck washing, firefighting, irrigation, and ballast water management. The pump features a self-priming centrifugal design with an open bronze impeller, cast iron housing, and stainless steel shaft, handling clean and contaminated liquids with coarse particles up to 8 mm. It operates at 400 V AC with a power of 11 kW and delivers up to 70,000 liters per hour at 30 m head, with dimensions of 763 x 365 x 459 mm and weighing 166 kg.
- Description
- Ask a Question
-

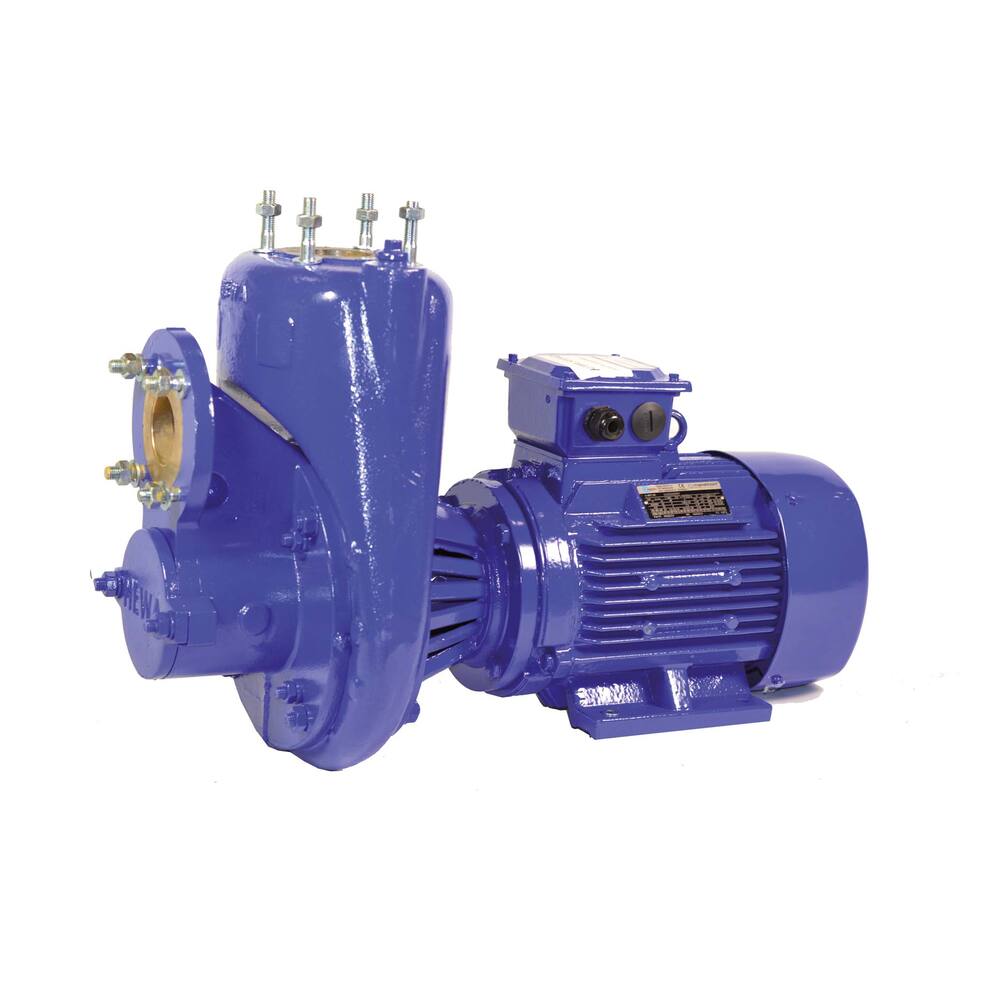

Hewa Pump 80/110 400V
This deck wash and bilge pump is modeled on original moulds from the former K&R SAE pump series. It offers reliable and powerful performance with impressive pressure and volume, while remaining affordable. Perfect for deck washing, jet-washing holds, firefighting, overhead irrigation, ballast water management, drainage, and general service pumping.
- Type: HEWA
- Colour: blue
- Type pump: self-priming centrifugal pump
- Impeller type: open impeller
- Type of motor: squirrel-cage motor
- Fuse: NOT built-in
- Insulation class: IP55
- Seal: carbon on SiC mechanical seal with viton
- Material impeller: bronze
- Material wear plate: bronze
- Material pump housing: cast iron
- Material pump shaft: Stainless steel A4
- Liquids: clean and contaminated liquids with relatively coarse constituents, such as water, sea water, etc.
- Performance at various heads:
- 30 m head: 70,000 litres/hour
- 35 m head: 63,000 litres/hour
- 40 m head: 52,500 litres/hour
- 45 m head: 42,000 litres/hour
- 50 m head: 28,000 litres/hour
- Dimensions (LxWxH): 763 x 365 x 459 mm
- Weight: 166 kg
- Current: 19.5 amp
- Shaft power: 11.0 kW, 14.6 hp, 2,900 rpm
- Product code: 92.07.641
- Suction head: 8.0 m
- Pipe diameter pressure: DN 80 Flange
- Pipe diameter suction: DN 80 Flange
- Pump type: Dry set-up pump, self-priming
- Medium: Water, water with coarse components
- Particle size max: 8 mm
- Max discharge head: 54.0 m
- Voltage: 400 V
- Current type: AC
- Frequency: 50 Hz
- Protection class: IP55
- ATEX: No
- Separate float switch: None
- Free flow rate: 70,000 L/hour
- Capacity at 5 m head: 70,000 L/hour
-
