The Desmi Pump NSA50-200/165 4KW 440/690V is a reliable deck wash and bilge pump widely used in commercial shipping, fully compliant with classification standards and available with certification. It features a self-priming centrifugal pump with a cast iron housing, bronze impeller, and handles clean and contaminated liquids with coarse particles, delivering up to 41,000 liters per hour at various heads.
- Description
- Ask a Question
-

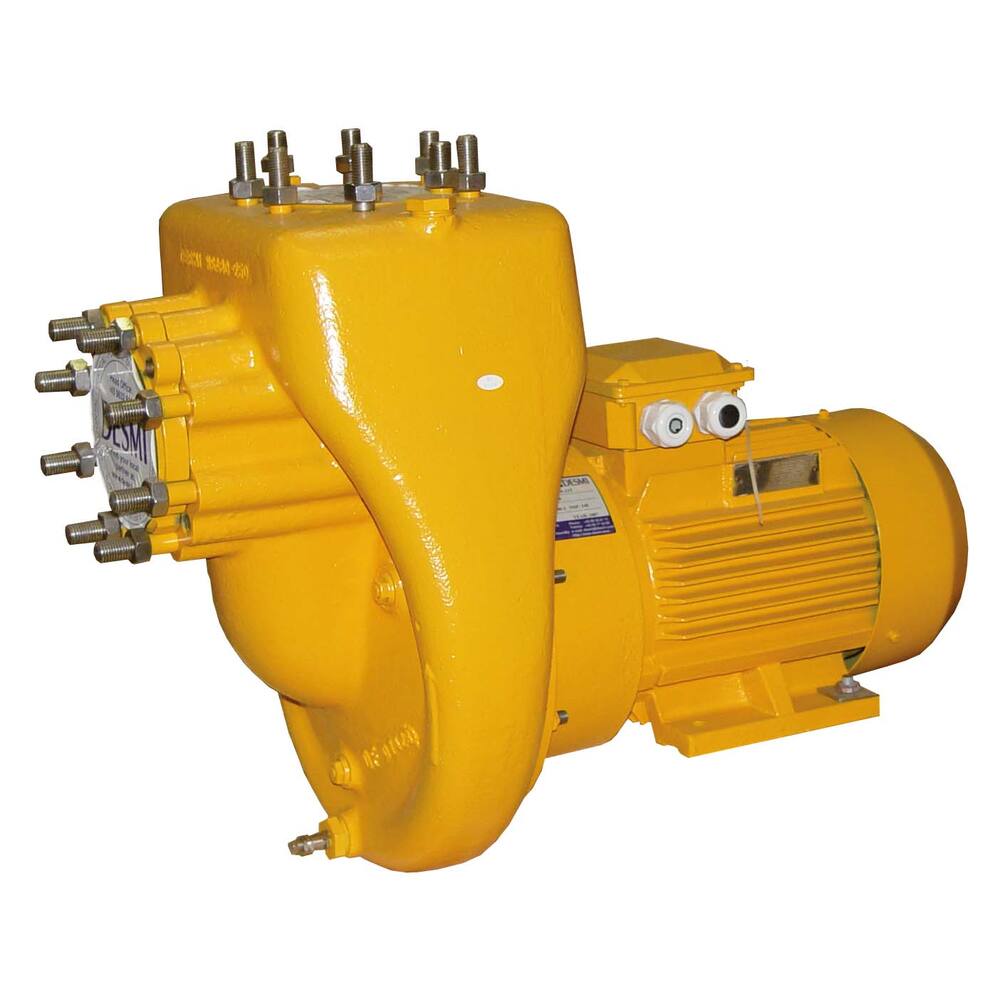

Desmi Pump NSA50-200/165 4KW 440/690V
A trusted and widely used deck wash and bilge pump designed for commercial shipping. It complies fully with classification organization standards and can be delivered with certification.
- Type: NSA
- Colour: yellow
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Motor type: short circuit motor
- Fuse: NOT inbuilt
- Shaft seal: brass on carbon mechanical seal
- Material impeller: bronze
- Material wearing plate: bronze
- Material pump housing: cast iron
- Material pump shaft: SS
- Liquids handled: clean and contaminated liquids with coarser particles such as water, gas oil, etc.
- Performance:
- 15 metres head: 39,000 litres per hour
- 20 metres head: 31,000 litres per hour
- 25 metres head: 20,000 litres per hour
- Connections: flange 50 x 160 x pitch circle diam. 125 mm, 4 x M12 (supplied without flange)
- Dimensions (LxWxH): 650 x 300 x 440 mm
- Weight: 98 kg
- Amperage: 8.8 A
- Shaft power: 4.0 kW, 5.3 hp, 2900 rpm
- Product code: 92.08.540
- Suction head: 8.0 m
- Pipe diameter pressure: 50 mm Flange
- Pipe diameter suction: 50 mm Flange
- Model: Cast-iron pump housing
- Pump type: Dry set-up pump: self-priming
- Medium: Water, water with coarse components, gasoil
- Particle size: 4 mm
- Max discharge head: 30.0 m
- Voltage: 400/690 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow (L/Hour): 41,000
- Capacity 5 meter (L/hour): 39,000
-
