The Desmi Pump NSA50-200/185 5.5KW 440/690V is a more powerful deck wash and bilge pump designed for commercial shipping, meeting all classification requirements and offered with certification. It has a cast iron pump housing and delivers higher capacity and discharge head, with a maximum flow of 48,000 liters per hour and a max discharge head of 40.2 meters.
- Description
- Ask a Question
-

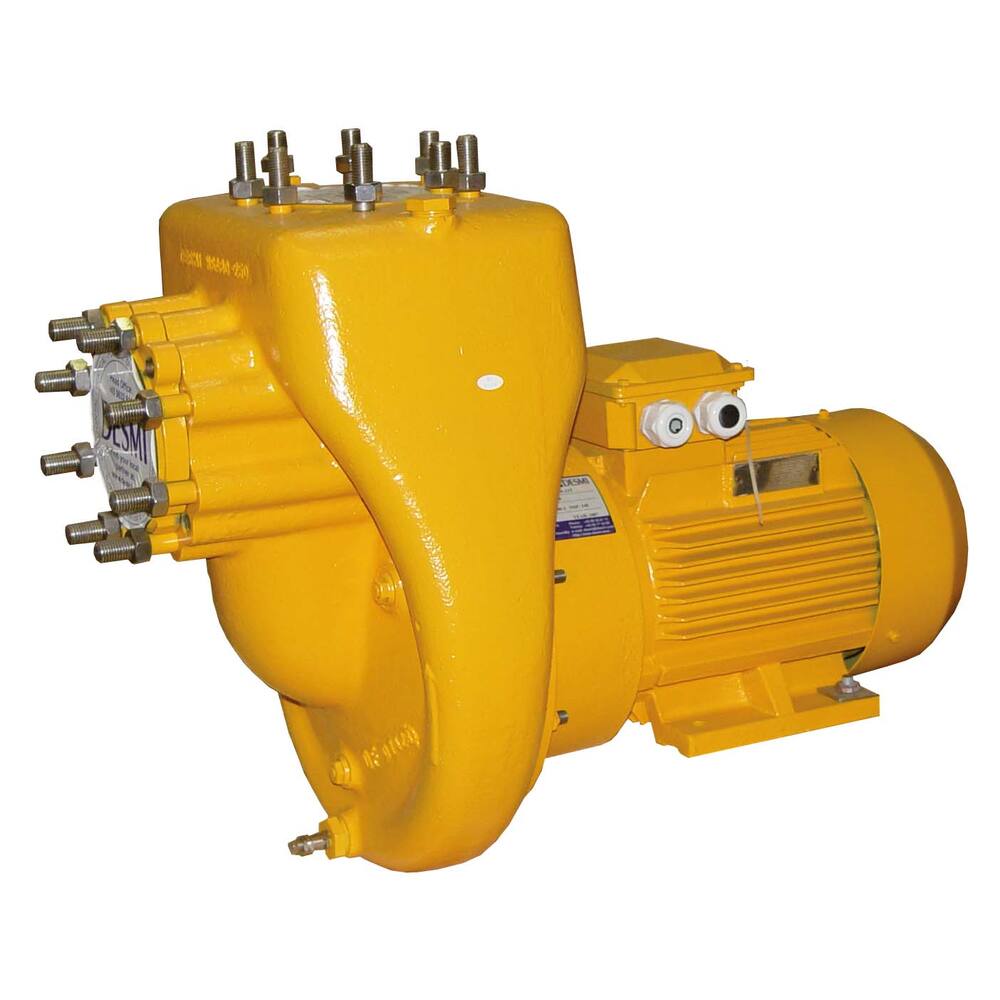

Desmi Pump NSA50-200/185 5,5KW 440/690V
Highly regarded deck wash and bilge pump for commercial shipping, conforming to all classification requirements and provided with certification. Features increased power and capacity with a cast-iron pump housing.
- Type: NSA
- Colour: yellow
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Motor type: short circuit motor
- Fuse: NOT inbuilt
- Shaft seal: brass on carbon mechanical seal
- Material impeller: bronze
- Material wearing plate: bronze
- Material pump housing: cast iron
- Material pump shaft: SS
- Liquids handled: clean and contaminated liquids with coarser particles such as water, gas oil, etc.
- Performance:
- 20 metres head: 46,000 litres per hour
- 25 metres head: 39,000 litres per hour
- 30 metres head: 31,500 litres per hour
- 35 metres head: 18,000 litres per hour
- 40 metres head: 1,500 litres per hour
- Connections: flange 50 x 160 x pitch circle diam. 125 mm, 4 x M12 (supplied without flange)
- Dimensions (LxWxH): 650 x 300 x 440 mm
- Weight: 98 kg
- Amperage: 8.8 A
- Shaft power: 5.5 kW, 7.3 hp, 2900 rpm
- Product code: 92.08.550
- Suction head: 8.0 m
- Pipe diameter pressure: 50 mm Flange
- Pipe diameter suction: 50 mm Flange
- Model: Cast-iron pump housing
- Pump type: Dry set-up pump: self-priming
- Medium: Water, water with coarse components, gasoil
- Particle size: 4 mm
- Max discharge head: 40.2 m
- Voltage: 400/690 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow (L/Hour): 48,000
- Capacity 5 meter (L/hour): 48,000
-
