ID
1316776
$ 324.82
1-2 weeks delivery time
-
+
The City Pumps Speed Vortex 50M + Ball Float model is similar to the standard Speed Vortex 50M but includes a ball float for automatic operation, making it suitable for various settings requiring automatic pump activation. It shares the same specifications such as a fully submersible centrifugal pump design, vortex impeller, dry motor, and thermal safeguard. It handles clean and slightly contaminated water with a maximum particle size of 25 mm, operates at 230 V, and has a maximum submersion depth of 3 meters. The pump delivers a free flow of 10,800 liters per hour and weighs 6.8 kg.
- Description
- Ask a Question
-

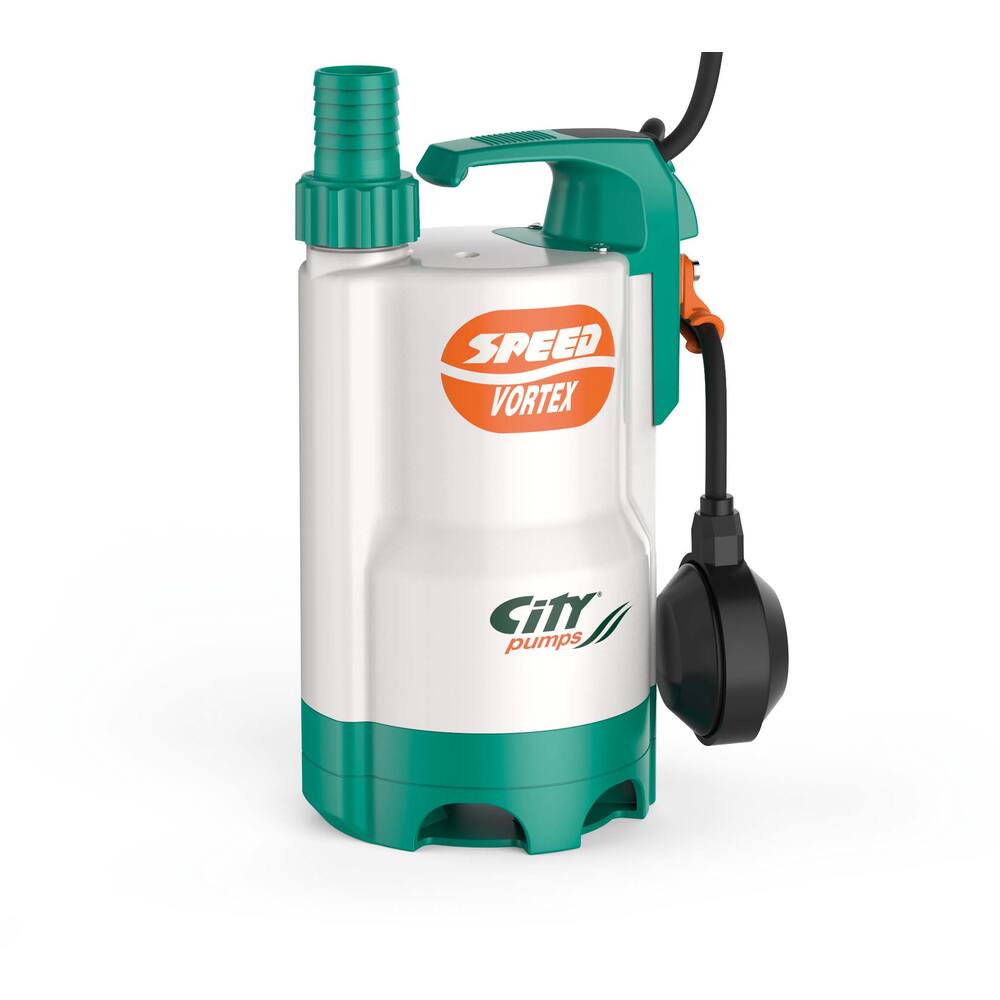

City Pumps Speed Vortex 50M + Ball Float
This version of the Speed Vortex 50M pump includes a ball float for automatic operation in various settings.
- Type: Speed
- Colour: white with green accents
- Pump type: fully submersible centrifugal pump
- Impeller type: recessed open impeller (vortex)
- Motor type: dry motor
- Fuse: built-in thermal safeguard
- Shaft seal: double ceramic carbon mechanical seal and lip seal, separated by oil chamber
- Maximum submersion depth: 3 metres
- Impeller material: Noryl
- Impeller housing material: plastic
- Motor housing material: plastic
- Pump shaft material: stainless steel EN 10088-3, 1.4104
- Suitable liquids: clean and slightly contaminated water; max temperature +40°C (+90°C for short 3 min)
- Minimum pumping depth: 25 mm
- Maximum particle size: 25 mm (no sand or gravel)
- Connections: 1.1/4" hose connection and 1.1/4" external thread
- Dimensions: diameter 152 mm, height 290 mm
- Weight: 6.8 kg
- Electrical specs: 230 V, 2.0 A
- Shaft power: 0.37 kW, 0.5 hp, 2900 rpm
- Cable: 10 metre neoprene H05-RN-F with earthed plug
- Product code: 91.29.651
- Pipe diameter pressure: 1.1/4"
- Pipe diameter suction: -
- Medium: Water
- Medium with coarse components: Yes
- Particle size: 25 mm
- Max discharge head: 7.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX certified: No
- Separate float switch: Yes
- Free flow: 10,800 L/hour
- Capacity at 5 m: 4,500 L/hour
-
