ID
1316749
$ 792.11
1-2 weeks delivery time
-
+
The City Jet Pump JSE 20MM 230V is a self-priming centrifugal pump with an integrated ejector, designed for pressurizing, garden sprinkling, and transferring clean liquids up to 40°C. It features a limited self-priming centrifugal pump design with a closed brass impeller, a 230 V induction motor, and a cast iron pump housing. The pump offers flow rates ranging from 7,200 L/h at 30 m head to 1,050 L/h at 55 m head, with a maximum discharge head of 60 m and a suction head of 9 m.
- Description
- Ask a Question
-

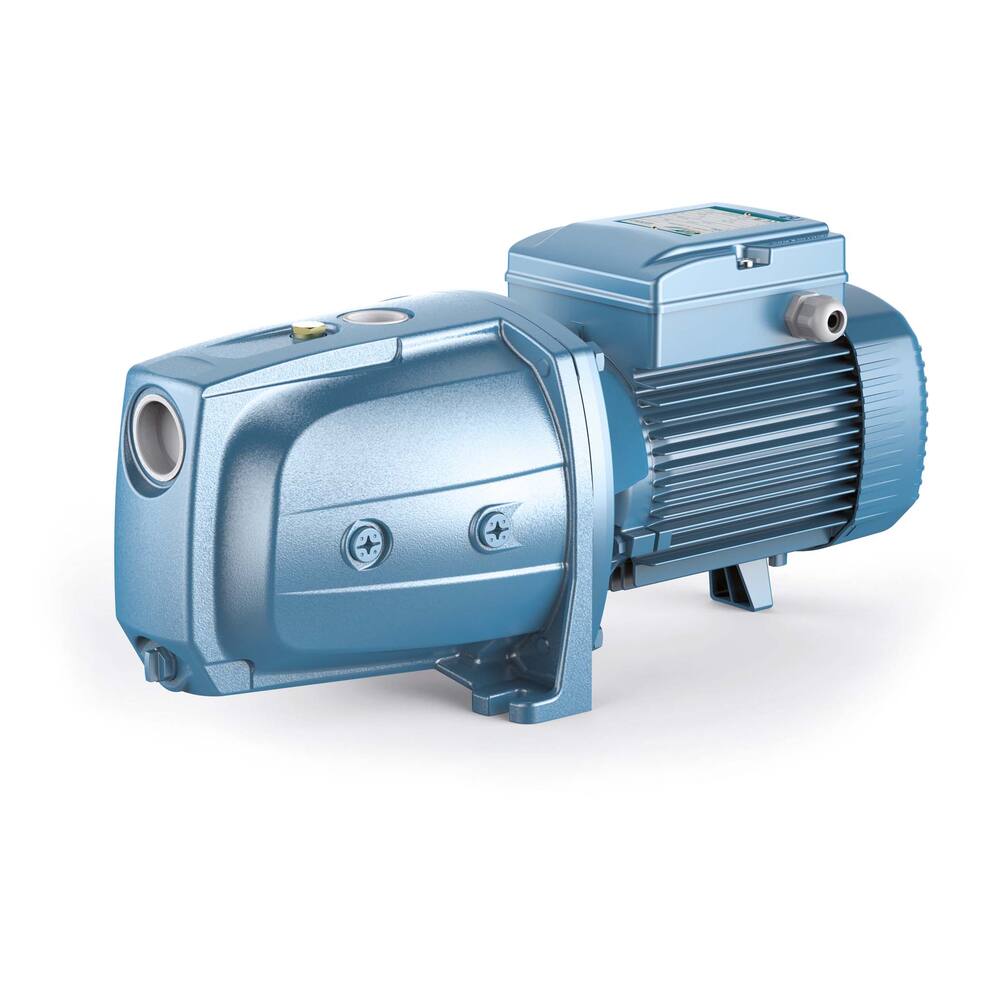

City Jet Pump JSE 20MM 230V
This self-priming centrifugal pump with an integrated ejector is built for pressurizing, garden sprinkling, and transferring clean liquids up to 40°C. It uses a limited self-priming centrifugal pump design with a closed impeller and a 230 V induction motor.
- Type: JSE
- Colour: blue
- Pump type: limited self-priming centrifugal pump
- Impeller type: closed impeller
- Motor type: induction motor, 230 V
- Motor insulation class: F, IP44
- Fuse: inbuilt thermal safeguard (230 V only)
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: brass
- Material impeller housing: technopolymer
- Material ejector: technopolymer
- Material pump housing: cast iron
- Material pump shaft: stainless steel EN 10088-3, 1.4104
- Suitable liquids: clean water, max temperature 40°C
- Flow rates by head:
- 30 m: 7,200 L/h
- 35 m: 5,400 L/h
- 40 m: 4,080 L/h
- 45 m: 3,000 L/h
- 50 m: 1,890 L/h
- 55 m: 1,050 L/h
- Connection discharge: 1" internal thread
- Connection suction: 1.1/4" internal thread
- Dimensions (LxWxH): 523 x 206 x 242 mm
- Weight: 26.5 kg
- Electrical: 230 V, 9.3 A
- Shaft power: 1.5 kW, 2.0 hp, 2900 rpm
- Product code: 93.34.070
- Suction head: 9.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1.1/4"
- Pump type: dry set-up pump, self-priming
- Medium: water
- Particle size max: 2 mm
- Max discharge head: 60.0 m
- Voltage: 230 V, AC, 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 7,200 L/h
- Capacity at 5 m: 7,200 L/h
-
