The City Jet Pump JSE 15M 400V is designed for pressurizing and garden sprinkling, featuring a self-priming centrifugal pump with an inbuilt ejector for clean water up to 40°C. It includes a brass impeller, technopolymer housing, cast iron pump housing, stainless steel shaft, and operates at 400 V with flow rates up to 7,200 L/h at 20 m head and a maximum discharge head of 52 m.
- Description
- Ask a Question
-

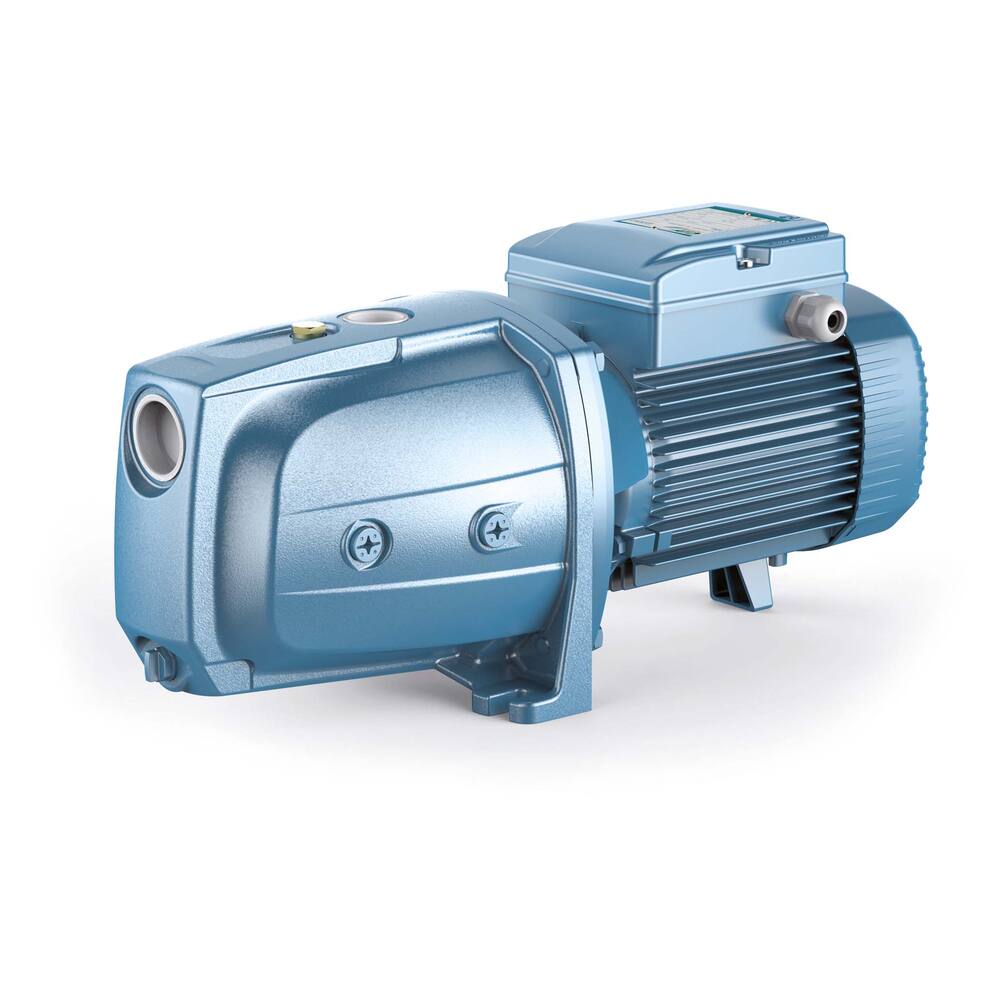

City Jet Pump JSE 15M 400V
Designed for pressurizing and garden sprinkling, this self-priming centrifugal pump with an inbuilt ejector handles clean liquids up to 40°C. It includes a limited self-priming centrifugal pump with a closed impeller and a short circuit motor powered at 400 volts.
- Type: JSE
- Colour: blue
- Pump type: limited self-priming centrifugal pump
- Impeller type: closed impeller
- Motor type: short circuit motor, 400 V
- Motor insulation class: F, IP44
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: brass
- Material impeller housing: technopolymer
- Material ejector: technopolymer
- Material pump housing: cast iron
- Material pump shaft: stainless steel EN 10088-3, 1.4104
- Suitable liquids: clean water, max temperature 40°C
- Flow rates by head:
- 20 m: 7,200 L/h
- 25 m: 5,280 L/h
- 30 m: 4,080 L/h
- 35 m: 2,880 L/h
- 40 m: 2,100 L/h
- 45 m: 1,200 L/h
- 50 m: 600 L/h
- Connections: 1.1/4" internal thread
- Dimensions (LxWxH): 523 x 206 x 242 mm
- Weight: 25.4 kg
- Electrical: 400 V, 3.4 A
- Shaft power: 1.1 kW, 1.5 hp, 2900 rpm
- Product code: 93.34.065
- Suction head: 9.0 m
- Pipe diameter pressure: 1"
- Pipe diameter suction: 1.1/4"
- Pump type: dry set-up pump, self-priming
- Medium: water
- Particle size max: 2 mm
- Max discharge head: 52.0 m
- Voltage: 400 V, AC, 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 7,200 L/h
- Capacity at 5 m: 7,200 L/h
-
