ID
1315018
$ 1,976.34
1-2 weeks delivery time
-
+
The CEM Elettromeccanica Gearwheel Pump Gear 1500/25L-10BT is built to move low viscosity lubricating liquids without solids or abrasives, such as diesel and spindle oils. It includes a blue gearwheel pump with an inbuilt overflow valve (max 10 bar), limited self-priming, and a 400 V short circuit motor. The pump has steel gearwheels and cast steel housing, handles liquids up to 140°C, and operates at 1500 L/hour capacity with a suction head of 3.0 m. It weighs 18 kg and has a shaft power of 0.75 kW at 1400 rpm.
- Description
- Ask a Question
-

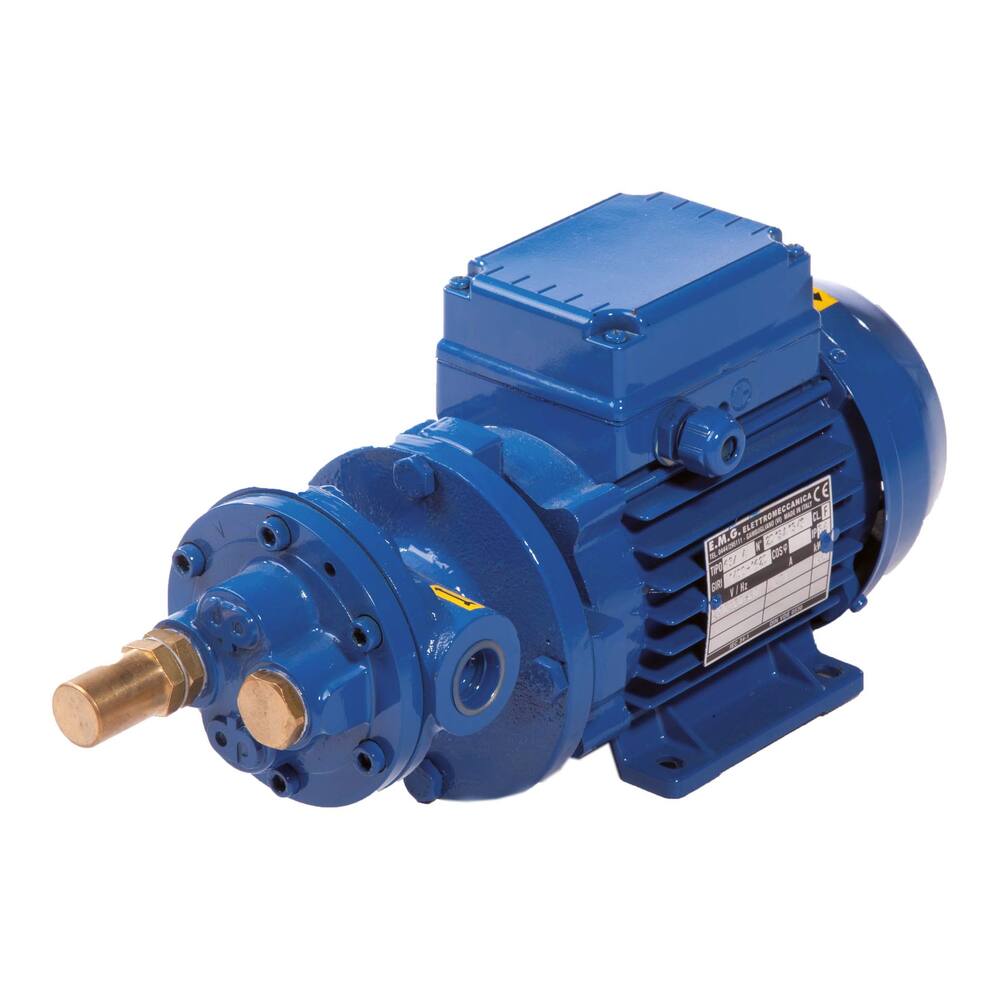

CEM Elettromeccanica Gearwheel Pump Gear 1500/25L-10BT
Engineered to move low viscosity lubricating liquids without solids or abrasives, this pump handles diesel oil, light lubricating oil, spindle oil, preheated grease, and gas oil effectively.
- Type: GEAR
- Colour: blue
- Special feature: inbuilt overflow valve (max 10 bar), NOT ADJUSTED
- Pump type: gearwheel pump, limited self-priming
- Impeller type: gearwheels
- Motor type: 400 volt short circuit motor (normalized flange motors)
- Fuse: NOT inbuilt
- Shaft seal: carbon on hard metal mechanical seal
- Material gearwheels: steel* (* available in bronze or stainless steel for the foodstuffs industry)
- Material pump housing: cast steel*
- Material pump shaft: toughened steel*
- Liquids: clean lubricating oil and neutral low viscosity liquids with lubricating properties, max 140°C
- Viscosity: max 20 Engler; viscosity strongly affects capacity
- Capacities measured with water
- Suction head depends on viscosity
- Particle size: zero
- Dimensions (L×W×H): 460 × 200 × 245 mm
- Weight: 18 kg
- Amperage: 400 V, 2.0 A
- Shaft power: 0.75 kW, 1 hp, 1400 rpm
- Product code: 93.90.526
- Suction head: 3.0 m
- Pipe diameter pressure: 3/4"
- Pipe diameter suction: 3/4"
- Pump type detail: Toothed wheel pump
- Medium: Lubricating oil
- Particle size capacity: 2 mm
- Max discharge head: 100.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 1500 L/hour
- Capacity at 5 meter: 1500 L/hour
-
