ID
1330950
$ 445.77
1-2 weeks delivery time
-
+
The Johnson Pump 10-24571-01 flexible impeller pump is a compact, self-priming marine unit for engine cooling, bilge pumping, deck wash, fresh water systems, and fuel transfer. Its foot-mount design and 3/4 in BSP female inlet/outlet (19 mm) simplify installation, while a bronze body, stainless steel shaft, and mechanical seal help ensure reliable operation. This F5B-8 pump delivers 46 LPM at 2000 RPM, weighs 1.6 kg, and is listed as a replacement for Johnson F4B-903, F5B-8, 10-24463-01, 10-24571-13, and 10-24073-1, with EAN 8719182065869.
- Description
- Ask a Question
-

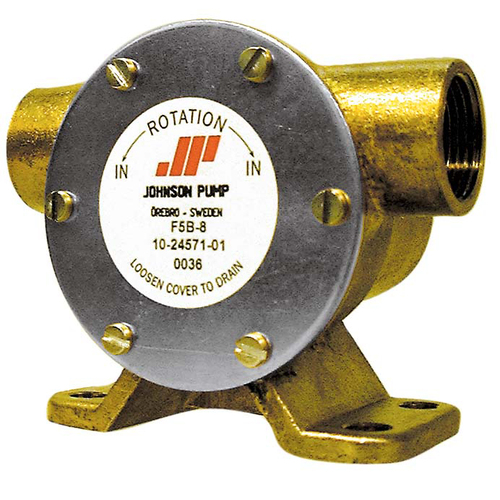

Johnson 10-24571-01 F5B-8 Marine Impeller Pump Unit
The Johnson Pump 10-24571-01 is a versatile, compact, self-priming flexible impeller pump built for demanding onboard use. It is described for multiple marine duties including engine cooling, bilge pumping, deck wash, fresh water systems, and fuel transfer, combining a robust bronze construction with a mechanical seal for dependable service.
Application
- Engine cooling
- Bilge pumping
- Deck wash
- Fresh water systems
- Fuel transfer
- Emptying wastewater tanks at the dock (as listed)
- Flushing and filling water tanks (as listed)
Compatibility
- CMD AM45 engines
- Diecon FD35 engines
- Isuzu 4JG2 Gen-set engines
- Zenith 4JG2 Gen-set engines
- Beta Marine engines (frequently used, as listed)
Technical Specifications
Brand Johnson Pump Model / Part Number 10-24571-01 Series / Model F5B-8 Flow Rate 46 LPM at 2000 RPM Drive Type Pulley Driven Mounting Foot Mounting (also listed: Pedestal Mount; Base Mounted) Connections 3/4 in BSP Female (19 mm) Body Material Bronze Shaft Stainless Steel, double ball bearing mounted (also described as permanently lubricated double ball bearings) Seal Type Mechanical Seal Impeller (Listed) 09-1027B-1 (MC97); MC97 and Neoprene (standard) or Nitrile (on request); also listed: 66091027B1 (MC-97) and 66091027B9 (Nitrile) Cam (Listed) Full (standard) or Reduced (on request) Shaft Diameter (Listed) 17 mm (5/8 in); also listed: 16 mm; also listed: 17k6 mm Weight 1.6 kg Shipping Weight (Listed) 2.40 kg Dimensions (Listed) Length 151 mm; Width 106 mm; Height 90 mm (also listed: Length 151 mm; Height 106 mm; Width 50 mm; also listed: 151 x 106 x 50 mm) EAN 8719182065869 Article Number (Listed) 66102457101 Table (Listed) C
Product Details
- Port Type: 3/4 in BSP female inlet/outlet
- Construction: Bronze pump body with stainless steel shaft
- Included / Listed Components: Mechanical seal; stainless steel cover; wear plate; 1/1 eccentric (as listed)
- Drive / Shaft End (Listed): Single flat drive; drive via single flattened shaft (17 mm / 16 mm)
- Product Portfolio (Listed): Impeller pumps; cooling water pumps
Replacements and Alternatives
- Replaces (Listed): Johnson F4B-903
- Replaces (Listed): Johnson F5B-8
- Replaces (Listed): 10-24463-01 (F4B-903)
- Replaces (Listed): 10-24571-13 (F5B-8)
- Replaces (Listed): 10-24073-1 (F5B-8)
- Alternative To (Listed): Vetus CWP46
- Alternative To (Listed): Beta Marine 207-97104
Service Items (Listed)
- Service kit: 09-46843
- Impeller kit: 09-810B-1
Features
- Self-priming design supports dependable suction performance (as listed)
- Foot-mount layout and 3/4 in BSP female ports support convenient installation
- Bronze body and stainless steel shaft support durability for marine duty
- Mechanical seal helps provide reliable operation
- Multipurpose pump for common onboard transfer and cooling tasks
-
