The Johnson Pump Aqua-Jet WPS 2.4 pressure water pump 10-24604-04 provides a reliable 24 V pressurized water supply for small boats and recreational vehicles, delivering 9 l/min (2.4 GPM) with a 2.8 bar (41 PSI) cut-off pressure. Its five-chamber design helps reduce noise and water pulsations versus conventional three- or four-chamber diaphragm pumps, while the Santoprene diaphragm, EPDM valves, and PP/PPA housing support durability. The unit is specified with an 85 W motor (also listed as 87 W rated), uses a 5 A fuse, and offers BSP-to-hose connection options; a buffer tank and PumProtector inlet filter are recommended for best performance.
- Description
- Ask a Question
-

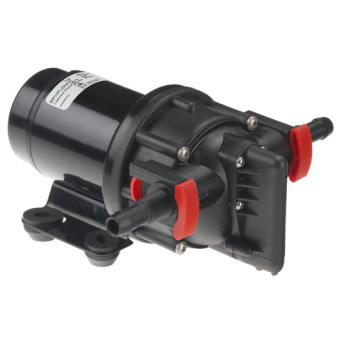

Johnson Pump 10-24604-04 Aqua-Jet WPS 2.4 24 V Pressure Water System
The Johnson Pump Aqua-Jet WPS 2.4 is a pressurized water pump engineered for dependable onboard water delivery. Built around a five-chamber design, it is designed to provide steady flow with noticeably reduced noise and water pulsations compared to conventional three- or four-chamber diaphragm pumps.
Application
- Small boats
- Recreational vehicles
- Applications requiring a 24 V supply
Technical Specifications
Brand Johnson Pump Part Number 10-24604-04 Article Number 66102460404 Product Portfolio Water Pressure Systems Model WPS 2.4 Voltage 24 V Capacity 9 l/min (2.4 GPM) Cut-Off Pressure 2.8 bar (41 PSI) Motor Power 85 W (rated motor power also listed as 87 W) Fuse 5 A Weight 1.6 kg Shipping Weight 2.00 kg Dimensions (Listed) 204 x 197 x 110 mm (L x W x H) Dimensions (Listed) 200 x 197 x 114 mm Connections 3/8" BSP to 1/2" hose; 1/2" BSP to 3/4" hose
Product Details
- Design: Five-chamber WPS series
- Diaphragm: Santoprene
- Valves: EPDM
- Housing: PP/PPA
- Noise and Pulsation: Reduced compared to conventional three- or four-chamber diaphragm pumps
- Recommended Accessories: Buffer tank and PumProtector inlet filter upstream of the pump inlet
- Note: Inlet strainer not included
Features
- 24 V pressure water pump for small boats and recreational vehicles
- 9 l/min output with 2.8 bar cut-off pressure for consistent water delivery
- Five-chamber construction helps smooth flow and minimize pulsations
- Multiple BSP-to-hose connection options for flexible installation
Optional Configurations (Upon Request)
- Cut-off pressure: 2.1 bar (30 PSI)
- Cut-off pressure: 1.4 bar (20 PSI)
- NPT connections available
-
