ID
1330953
$ 153.81
1-2 weeks delivery time
-
+
The Johnson Pump 10-24604-03 WPS 2.4 water pressure pump delivers reliable pressurized water supply for small boats and recreational vehicles with 12 V operation, a five-chamber design for quieter running and reduced water pulsations, and a maximum output of 9 l/min with a 2.8 bar cut-off pressure. Durable Santoprene membranes, EPDM valves, and a PP/PPA housing support long service life, while the integrated pressure switch and run-dry protection help protect the pump in daily use; a pressure compensation tank is required, with optional alternative cut-off pressures and optional NPT connections available on request.
- Description
- Ask a Question
-

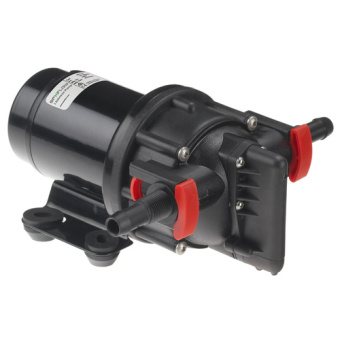

Johnson Pump 10-24604-03 Aqua Jet WPS 2.4 Water Pressure Unit
The Johnson Pump 10-24604-03 (WPS 2.4) is a compact water pressure pump from the Aqua Jet WPS series, built to provide consistent onboard water pressure for small boats and recreational vehicles. Its five-chamber design helps reduce noise and water pulsations compared to traditional three- or four-chamber diaphragm pumps.
Application
- Small boats
- Recreational vehicles
- Water system pressure applications
Technical Specifications
Brand Johnson Pump Model WPS 2.4 Product Portfolio Water Pressure Systems Part Number 10-24604-03 Article Number 66102460403 EAN 8719182066408 Voltage 12 V Capacity 9 l/min Output (Listed) 9 l/min (2.4 GPM) Switch-Off Pressure 2.8 bar (40–41 psi listed) Switch-On Pressure 1.7 bar Self-Priming Yes; up to 2 m (listed) Integrated Pressure Switch Yes Run-Dry Safe Yes Motor Power (Listed) 85 W Rated Motor Power (Listed) 87 W Amperage (Listed) 7 A Recommended Fuse 10 A Weight 1.6 kg Shipping Weight (Listed) 2.60 kg Dimensions (Listed) 200 × 197 × 114 mm Dimensions (Listed) 204 × 197 × 110 mm Dimensions (Listed) 202 × 197 × 110 mm Dimensions (Listed) Height 11.8 cm; Width 11.1 cm; Length 20.2 cm
Product Details
- Five-chamber design helps reduce noise and water pulsations.
- Materials: Santoprene membrane, EPDM valves, PP/PPA housing.
- Pressure compensation tank necessary: Yes (listed).
- Using a buffer tank is recommended to maximize performance (listed).
- Installing a PumProtector inlet filter before the pump inlet is recommended (listed).
- Inlet strainer: Not included (listed).
Connections
- 3/8 BSP to 1/2 hose
- 1/2 BSP to 3/4 hose
- Including snap-in ports: 2 × 13 mm (1/2) BSP to 19 mm (3/4) hose, and 2 × 9.5 mm (3/8) BSP to 13 mm (1/2) hose (listed)
- NPT connections available on request
Options (On Request)
- Alternative cut-off pressure: 2.1 bar (30 psi)
- Alternative cut-off pressure: 1.4 bar (20 psi)
Features
- Delivers up to 9 l/min water flow for onboard pressure systems
- Pressure switch cuts out at 2.8 bar (listed)
- Run-dry protection helps prevent damage during intermittent water supply
-
