The Johnson Pump 10-24630-03 bronze impeller pump is a self-priming F7B-9 cooling water unit built for reliable marine engine cooling. A flange-mounted bronze body, 32 mm (1-1/4 inch) internal diameter hose ports, and a 1/1 full cam design support efficient water flow, while the mechanical seal, stainless steel cover, and wear plate help deliver durable service. It includes an MC97 impeller and uses a spline drive impeller hub with a shaft end designed for secure installation, including an M12 thread for a lock nut.
- Description
- Ask a Question
-

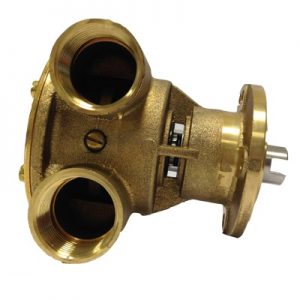

Johnson Pump 10-24630-03 F7B-9 Bronze Impeller Cooling Water Pump
The Johnson Pump 10-24630-03 is a self-priming bronze cooling water impeller pump designed for marine engine cooling duties. Its robust bronze construction, flange mounting, and purpose-built drive and sealing components support dependable operation in demanding onboard environments.
Application
- Marine engine cooling water circulation
- Frequently used on Vetus 4-cylinder Deutz engines
- Compatible with selected Deutz 6-cylinder engines
Compatibility
- DT64 engines
- DTA64 engines
- DT67 engines
- DTA67 engines
- M 4.15 engines
- M 4.17 engines
- VD6210---D engines
- VD6170662A engines
- VD6210685E engines
Technical Specifications
Part Number 10-24630-03 Pump Type Self-Priming Cooling Water Impeller Pump Pump Size F7 Model F7B-9 Material Bronze Mounting Type Flange Connection 32 mm (1-1/4 inch) Internal Diameter Hose Ports Cam 1/1 Full Cam Impeller Hub Spline Drive Drive / Shaft End Tapered Mount / Lock Nut
Product Details
- Included impeller: MC97 impeller
- Sealing: Mechanical seal
- Cover: Stainless steel cover
- Wear protection: Wear plate
- Drive description: Drive via conical mount / shaft end with crescent spring
- Thread detail: M12 thread for lock nut
- Related impeller kit: 09-1028BT-1
- Product portfolio: Impeller pumps; Cooling water pumps
Features
- Self-priming design supports dependable cooling water supply
- Bronze body and flange mounting provide durable, secure installation
- Full cam design, mechanical seal, stainless steel cover, and wear plate support reliable service
- Serves as an alternative to Johnson Pump Marine 10-24630-01 (OEM), Johnson Pump 10-24630-03 (Open Market), and Vetus STM8921
-
