ID
1330949
$ 385.84
1-2 weeks delivery time
-
+
The Johnson Pump 10-24570-01 bronze impeller pump is a compact, seawater-resistant, self-priming unit built for versatile onboard use, including engine cooling water circulation, bilge pumping, deck cleaning, fresh water transfer, refueling, and tank emptying/flushing. A bronze housing with a stainless steel shaft, mechanical seal, and foot-mounted design supports durable operation, while the 3/8" BSP threaded connection and 34.5 l/min capacity make it a practical choice for marine plumbing and service applications.
- Description
- Ask a Question
-

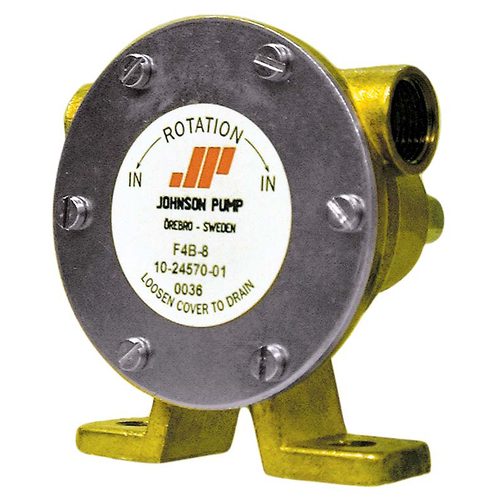

Johnson Pump 10-24570-01 F4B-8 Bronze Impeller Pump Unit
The Johnson Pump 10-24570-01 (model F4B-8) is a general-purpose bronze impeller pump developed for a wide range of onboard duties. With a compact, seawater-resistant design and self-priming performance, it supports dependable water movement for service, cleaning, and cooling tasks where robust construction is essential.
Application
- Cooling water pump for ship engines
- Bilge pumping
- Deck cleaning
- Fresh water pumping
- Refueling
- Emptying holding tanks at the pier
- Flushing and refilling water tanks
Compatibility
- Frequently used on Zenith engines
- Frequently used on Isuzu 2CA1 engines
Technical Specifications
Brand Johnson Pump Part Number 10-24570-01 Model F4B-8 Capacity 34.5 l/min Connection 3/8" BSP threaded ports (internal thread) Housing / Body Material Bronze Shaft Material Stainless steel Seal Type Mechanical seal Cam Full or partial comb; 1/1 cam Mounting Type Foot mounting (base mounted) Drive Pulley drive; single flat drive Drive Shaft Diameter 12 mm Shaft Diameter 11 mm Dimensions (L x H x W) 111 x 80 x 50 mm Weight 0.8 kg (also stated as 0.8 kg / 1.8 lbs) Shipping Weight 2.00 kg EAN 8719182065869
Product Details
- Self-priming: self-priming under all circumstances
- Bearings: shaft with permanently lubricated double ball bearings
- Cover: stainless steel cover
- Wear Plate: included (stated as wearplate)
- Drive Interface: drive via single flattened shaft (12 mm / 11 mm)
- Connection Standards: BSP or NPT (this version: 3/8" BSP)
- Alternative / Cross-Reference: alternative to Johnson Pump 10-24074-1; OEM 538.009.1
Features
- Seawater-resistant, compact design
- Bronze housing with stainless steel shaft for durable marine service
- Mechanical seal supports reliable operation in demanding onboard conditions
- Multi-purpose use across cooling, transfer, cleaning, and tank service tasks
Impeller and Service Parts
- Included: MC97 impeller
- Impeller (listed): 09-108B-1
- Impeller (kit listed): 09-810B-1
- Impeller (alternative listed): 09-810B-9 (nitrile; available upon request)
- Impeller (article references): 6609810B1 (MC-97)
- Impeller (nitrile reference): 6609810B-9
- Service Kit (listed): 09-46841
- Article Number (listed): 66102457001
-
