The Johnson Pump 10-24572-01 foot-mounted flexible impeller pump provides self-priming seawater-capable flow for marine engine cooling and other onboard transfer duties. Its pulley-driven design uses a mechanical seal and a bronze pump body with a stainless steel shaft, and it is supplied with wear plates and stainless steel end covers for durable service. With 1 inch BSP female threaded connections and compact 170 x 120 x 50 mm dimensions, it fits space-sensitive installations while supporting multi-purpose use including bilge pumping, deck wash, fresh water supply, and fuel transfer.
- Description
- Ask a Question
-

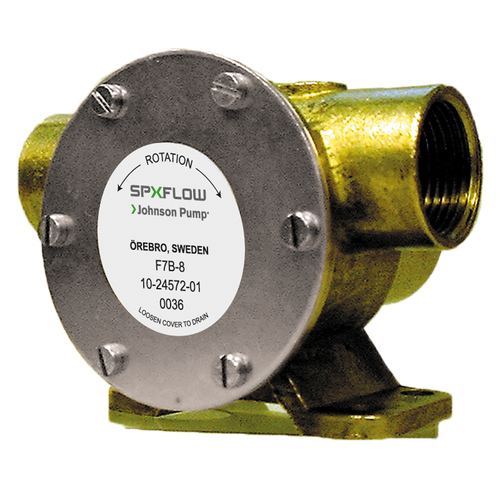

Johnson Pump 10-24572-01 Foot-Mounted Cooling Water Pump Unit
The Johnson Pump 10-24572-01 is a flexible impeller, self-priming marine pump built for pulley-drive installations with foot mounting. It is used as a marine engine cooling water pump and is also suited to a wide range of onboard and onshore transfer tasks where a compact, seawater-capable bronze pump is required.
Application
- Marine engine cooling
- Bilge pumping
- Deck wash
- Fresh water supply
- Fuel transfer
- Emptying septic tanks (onshore use)
- Flushing and cleaning
- Filling water tanks
Compatibility
- Volvo Penta MD2030 engines
- Volvo Penta MD2040 engines
- CMD ATM100 engines
- Isuzu 4BG1 Gen-set boat engines
- Isuzu 6BG1 Gen-set boat engines
- Fischer Panda engines (frequently used)
- Zenith Isuzu 4BG1 Gen-set engines
- Zenith Isuzu 6BG1 Gen-set engines
Replaces / Alternatives
- Johnson Pump 10-24070-1 (F7B-8)
- Johnson Pump 10-24465-01 (F4B-9)
- Johnson Pump 10-24572-13 (F7B-8)
- Volvo Penta 3580945 water pump
- Vetus CWP107
- Fischer Panda 36.03.01.012H
Technical Specifications
Brand Johnson Pump Part Number 10-24572-01 Article Number (Listed) 66102457201 EAN 8719182065869 Model F7B-8 Pump Type Flexible Impeller Pump (Self-Priming) Capacity 107 l/min Mounting Type Foot Mounting (Base Mounted) Drive Pulley Drive Drive/Shaft End Single Flat Drive Connection 1 inch BSP female thread (25 mm) Body Material Bronze Shaft Stainless Steel, double ball bearing mounted; permanently lubricated double ball bearings listed Seal Mechanical Seal End Cover Stainless Steel (stainless steel end covers / stainless steel cover listed) Wear Components Wear plates (listed) Cam Full (standard) or Reduced (on request) Impeller Options (Listed) MC97 and Neoprene (standard) or Nitrile (on request) Impeller Part Numbers (Listed) 09-1028B (Neoprene); 09-1028B-1 (also listed as 09-1028B-9); 6609828BT1 (MC-97); 66091028B9 (Nitrile) Dimensions (L x H x W) 170 x 120 x 50 mm Weight (Pump) 1.9 kg Shipping Weight (Listed) 2.50 kg Shaft Diameter (Listed) 17 mm; also listed as 16 mm; drive via single flattened shaft listed as 17 mm / 16 mm; drive shaft diameter also listed as Ø12k6 mm Product Portfolio (Listed) Impeller Pumps; Cooling Water Pumps Table (Listed) D
Product Details
- Listed as a multi-purpose bronze pump suitable for seawater applications in a compact design.
- Fitted with wear plates and stainless steel end covers (listed), supporting durability in demanding marine use.
- Supplied with a neoprene impeller (listed); a nitrile impeller pump version is available on request (listed).
Features
- Self-priming flexible impeller operation
- Foot-mounted, pulley-driven configuration for marine engines
- Mechanical seal design
- Bronze body with stainless steel shaft and stainless steel cover
- 1 inch BSP female threaded ports (25 mm)
Service Items (Listed)
- Service kit: 09-47427
- Impeller kit: 09-1028BT-1
-
