ID
1330952
$ 815.01
1-2 weeks delivery time
-
+
The Johnson Pump 10-24580-11 self-priming impeller pump is built for engine cooling water circulation in marine applications, using a flange-mounted bronze body and an MC97 impeller. A 29 mm inner-diameter flange connection and F7 size with 1/1 cam version support consistent cooling-water delivery, while the conical drive mounting with woodruff key and M12 thread for lock nut provides secure installation. Commonly found on Deutz D7 and selected Volvo Penta engines, it also serves as an alternative to listed Deutz, Johnson Pump OEM, and Volvo Penta part numbers.
- Description
- Ask a Question
-

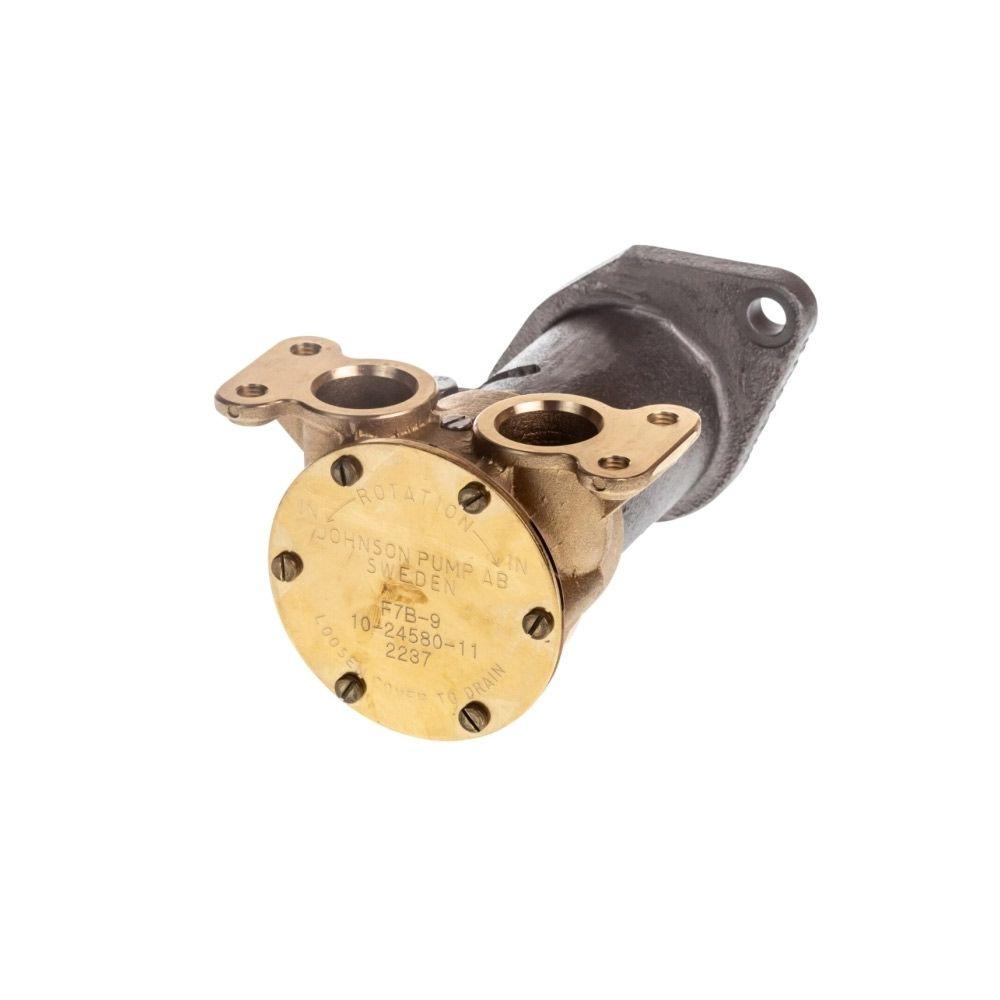

Johnson Pump 10-24580-11 F7B-9 Flange-Mounted Cooling Water Pump
The Johnson Pump 10-24580-11 is a self-priming engine cooling water impeller pump for marine use. With a robust bronze body, flange mounting, and an included MC97 impeller, it is designed to support reliable cooling-water flow on compatible engine installations.
Application
- Engine cooling (cooling water pump)
- Marine engine installations
Compatibility
- Deutz D7 engines
- Volvo Penta D5A-T engines
- Volvo Penta D5A-TA engines
- Volvo Penta D5A-B TA engines
- Volvo Penta D7A-T engines
- Volvo Penta D7A-TA engines
- Volvo Penta D7A-B TA engines
- Volvo Penta D7C-TA engines
- Volvo Penta D7C-B TA engines
Technical Specifications
Brand Johnson Pump Pump Type Impeller pump Use Self-priming engine cooling pump Pump Size F7 Model / Series F7B-9 Cam Version 1/1 Body Material Bronze Mounting Type Flange Connection Flange adapter, 29 mm inner diameter Drive / Mounting Conical mounting with woodruff key Thread M12 thread for lock nut Impeller Included MC97 Impeller Hub Spline drive Drive / Shaft End Shaft with thread Shipping Weight 4.00 kg
Product Details
- Flange gasket included: 01-46138
- Alternative to: Deutz 4229524
- Alternative to: Deutz 0422-9524
- Alternative to: SPX Johnson Pump 10-24580-01 (OEM)
- Alternative to: Volvo Penta 3838288
Related Service Kits (Listed)
- Impeller kit: 09-1028BT-1
- Wear kit: 09-47551-114
- Shaft kit: 09-47552-123
-
