The SPX Johnson Pump 10-24516-02 flexible impeller pump delivers dependable 24V transfer for marine duties such as bilge pumping, deck cleaning, water circulation, and oil and diesel refueling at port service. A heavy-duty motor with built-in thermal overload protection supports continuous operation up to 0.6 bar head pressure, while self-priming up to 3 meters (maximum head should not exceed 6 meters) improves usability on board. Durable materials including a bronze housing, brass pump head, oil-resistant nitrile impeller, and lip seal help maintain performance in demanding environments, with 3/8" BSP connections and output up to 21 l/min at free flow.
- Description
- Ask a Question
-

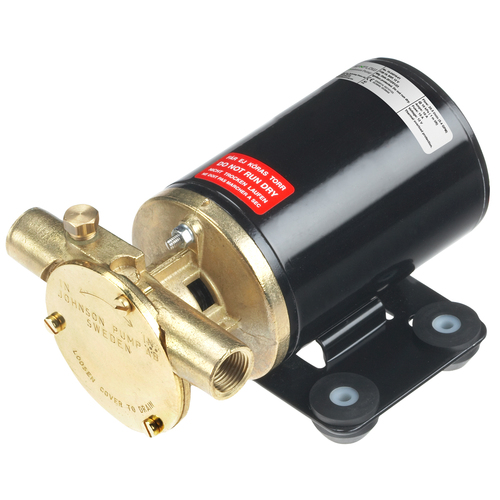

SPX Johnson Pump 10-24516-02 24V Flexible Impeller Transfer Unit
The SPX Johnson Pump 10-24516-02 is a self-priming impeller pump designed for versatile marine service. It supports common onboard transfer and washdown duties while combining a compact footprint with rugged construction and built-in motor protection for dependable operation.
Application
- Bilge pumping
- Deck cleaning (deck wash)
- Water circulation
- Oil refueling
- Diesel refueling
- Irrigation
- Port service use
Technical Specifications
Brand SPX Johnson Pump Part Number 10-24516-02 Article Number 66102451602 EAN 8719182062448 Voltage 24V Motor Power 0.12 kW Current Draw 4.8A Recommended Fuse Size 8A Output (Free Flow) Up to 21 litres/minute Output at 3 m Head Approx. 19 l/min at 3 m head Capacity 21 l/min Flow Rate 1260 LPH (330 US GPH) Flow Rate at 1 m Head 1230 LPH (324 US GPH) Flow Rate at 3 m Head 1170 LPH (312 US GPH) Flow Rate at 6 m Head 1068 LPH (282 US GPH) Self-Priming Up to 3 meters (under ideal conditions) Maximum Head Maximum head should not exceed 6 meters Maximum Head Pressure 0.6 bar Connection 3/8" BSP Port Thread R3/8" female thread (fittings not included) Length 170 mm (6.7 in) Width 113 mm (4.4 in) Height 82 mm (3.22 in) Dimensions (Alternative Listing) 170 mm x 100 mm x 82 mm Dimensions (Alternative Listing) Height 8.2 cm / Width 11.3 cm / Length 16.8 cm Weight 2.0 kg (4.5 lbs) Shipping Weight 2.40 kg
Product Details
- Product Portfolio: General Purpose Pumps, Electric impeller pumps
- Housing: Bronze
- Pump Body: Bronze
- Pump Head: Brass
- Impeller Material: Nitrile (oil-resistant)
- Impeller Part Number (Listed): 09-1052S-9
- Blade Degree (Listed): 09-843S-9 (includes nitrile impeller)
- Seal Type: Lip seal
- Replacement Impeller: JP-09-1052S-9
Features
- Heavy-duty motor designed for long service life
- Built-in thermal overload protection
- Continuous operation capability up to maximum 0.6 bar head pressure
- Self-priming up to 3 meters under ideal conditions
- Connection for a vacuum switch
- Universal mounting
-
