The Johnson Pump 10-24516-01 self-priming impeller pump unit (F3B-19-12V) delivers heavy-duty marine pumping performance for bilge pumping, deckwash, water circulation, and oil and diesel refueling. It runs on 12V DC power with a rated capacity of 21 L/min, uses a bronze pump body with a lip seal, and connects via a 3/8" BSP port for straightforward installation. Built for continuous duty with built-in thermal protection and an ignition-protected motor to ISO 8846, it also supports self-priming up to 3 m and handles liquid temperatures up to +80°C.
- Description
- Ask a Question
-

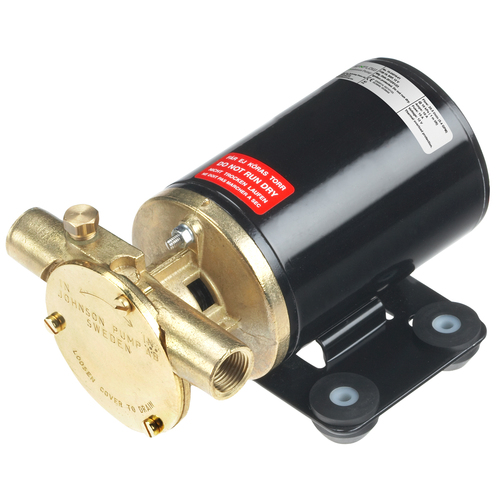

Johnson F3B-19 Self-Priming Impeller Pump Unit 10-24516-01
The Johnson Pump F3B-19 impeller pump is a heavy-duty, self-priming solution for a wide range of onboard transfer and circulation tasks. With a compact bronze pump body and an ignition-protected DC motor, it provides reliable pumping for service and utility duties where dependable priming and continuous operation are required.
Application
- Bilge pumping
- Deckwash
- Water circulation
- Oil refueling
- Diesel refueling
- Irrigation (general-purpose use)
- Dockside service and similar duties
Technical Specifications
Brand Johnson Pump Part Number 10-24516-01 Model F3B-19-12V Article Number 66102451601 EAN 8719182062448 Rated Voltage 12V DC (motor also listed as 12/24 V DC) Motor Power 0.12 kW Capacity 21 L/min Flow Rate 1260 LPH (330 US GPH) Flow Rate at 1 m Head 1230 LPH (324 US GPH) Flow Rate at 3 m Head 1170 LPH (312 US GPH) Flow Rate at 6 m Head 1068 LPH (282 US GPH) Self-Priming Up to 3 m (intake lines must be air-tight) Maximum Total Head (Bilge Use) 6 m Continuous Duty Limit 0.6 bar (60 kPa) maximum head permissible Maximum Liquid Temperature +80°C Connection 3/8" BSP (also listed as R3/8" female thread) Pump Body Material Bronze Seal Type Lip seal Impeller (Listed) 09-843S-9 Impeller (Listed) 09-1052S-9 (Nitrile) Replacement Impeller (Listed) JP-09-1052S-9 Dimensions (Listed) 170 mm x 113 mm x 82 mm Dimensions (Listed) 170 mm x 100 mm x 82 mm Dimensions (Listed) Height 8.2 cm / Width 11.3 cm / Length 16.8 cm Weight 2.0 kg Shipping Weight 2.40 kg Current (Listed) 10.3 A Fuse Size (Listed) 15 A
Product Details
- Duty rating: Continuously rated (continuous duty with built-in thermal protection)
- Motor protection: Ignition protected according to ISO 8846 (protection against ignition of surrounding flammable gases)
- Thermal safety: Built-in thermal protection restores automatically after the motor cools
- Installation note for bilge use: Install so the motor is protected from splash from bilge water
- Debris protection note: Fit a strainer or other method to prevent debris from entering the pump
Features
- Heavy-duty, self-priming impeller pump design for marine service
- Bronze body construction for durable onboard use
- 3/8" BSP connection for common marine plumbing arrangements
- Supports combination with a vacuum switch for automatic operation (not included)
-
