The VDO Cockpit International 350-040-003G engine oil pressure gauge provides clear, reliable analog monitoring from 0 to 5 bar for 24V DC engine monitoring systems in automotive and machinery applications. Designed for a standard 52 mm panel cutout, it uses the VDO 10–184 ohm sender signal for accurate readings, adds selectable white, green, or red backlighting for night visibility, and supports dependable operation with reverse polarity protection plus an IP64-rated front for resistance to dust and water spray.
- Description
- Ask a Question
-

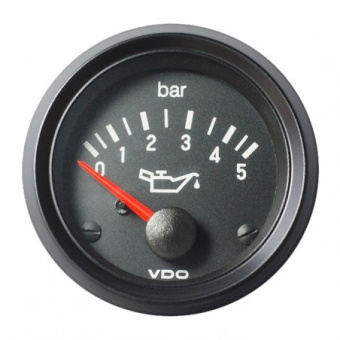

VDO Cockpit International 24V Oil Pressure Gauge 0 To 5 Bar
Built for professional engine monitoring, the VDO 350-040-003G Cockpit International instrument is a 52 mm analog engine oil pressure gauge with a 0–5 bar scale. Designed for 24V DC systems, it reads input from compatible VDO pressure senders (10–184 ohm) to help operators track lubrication performance and respond quickly to pressure changes. A rugged front protection rating and multi-color floodlighting make it well suited to vehicle and machinery dashboards.
Compatibility
- 24V DC automotive systems requiring a 0–5 bar engine oil pressure gauge
- 24V DC machinery systems requiring a 0–5 bar engine oil pressure gauge
- VDO pressure senders with 10–184 ohm signal range
Product Details
- Brand: VDO
- Series: Cockpit International
- Component Type: Engine oil pressure gauge
- Application: VDO engine monitoring systems
- Dial Color: Black
- Bezel: Triangular black, threaded ring
Features
- Analog oil-pressure indication with a 90° deflection for quick at-a-glance reading
- Floodlight illumination options in white, green, and red to match cockpit or dashboard lighting
- IP64 front protection to support long service life in demanding environments, with ozone and UV resistance
- Reverse polarity protection for added electrical safety in 24V installations
- Standard 52 mm mounting format for clean panel integration
Technical Specifications
Part Number 350-040-003G Measurement Range 0 to 5 Bar Sender Signal Range 10 to 184 Ohm Operating Voltage 21.5 to 30 Volt DC Current Consumption (Without Illumination) 82 mA Illumination Floodlight 24V, 2 Watt (White, Green, Red) Deflection Angle 90° Pointer Red backlight Connection AMP male blade connector 6.3 x 0.8 mm (3x) Illumination Connection AMP male blade connector 6.3 x 0.8 mm (2x) Mounting Hole Diameter 52 mm Outside Diameter 59.25 mm Installation Depth 67.5 mm Operating Temperature -30°C to +85°C Front Protection Class IP64 (DIN 40050) Rear Protection Class IP42 (DIN 40050) Housing Plastic, flame retardant Lens Single, anti-glare CE Yes Mechanical Shock (8 Hours) Max 1G, 25 Hz to 2000 Hz EMC Test According to EN 13309 and ISO 13766 Nominal Position NL 0 to NL 90 (DIN 16257) Country of Origin Malaysia EAN Code 4103590925381 HS Code 85122000 Weight 0.16 kg
In the Box
- VDO Cockpit International 350-040-003G pressure gauge
- Steel bracket, zinc-plated and chromatized
-
