ID
1176677
$ 115
1-2 weeks delivery time
-
+

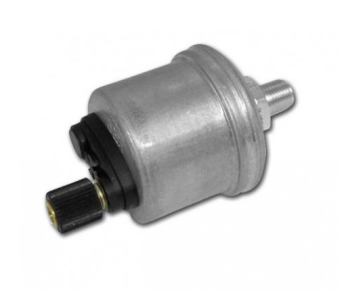

The VDO 360-081-029-001C pressure sender is a precision analog sensor for monitoring 0–5 bar pressure in oil, fuel, and air circuits across automotive, marine, and industrial systems. Built with an M10 x 1 tapered short thread and a single-pole common ground signal, it provides a stable 10–184 ohm output for gauges and engine monitoring, supports 6–24 V DC operation, and withstands harsh environments from -25°C to +100°C, with short-duration overload capability up to 30 bar.
- Description
- Ask a Question
-
VDO Analog Pressure Sensor for 0–5 Bar Monitoring
The VDO 360-081-029-001C is an analog pressure sender designed for dependable pressure feedback in oil, fuel, and air systems. Commonly used for engine monitoring (including engine oil pressure measurement), it delivers a consistent resistive output for instrumentation and control systems, and installs securely via its M10 x 1 tapered short thread.
Compatibility
- Automotive applications
- Marine applications
- Industrial applications
- Oil pressure systems
- Fuel pressure systems
- Air pressure systems
- Engines
- Transmissions
- Hydraulic systems
Product Details
- Brand: VDO
- Part Number: 360-081-029-001C
- Component Type: Pressure sender
- Signal Type: Single-pole common ground
- Typical Use: Engine monitoring and pressure instrumentation
- Pressure Medium: Oil, fuel, air
- Warning Contact: None (optional makepoint switch: VDO A2C59510886)
- HS Code: 90269000
- EAN Code: 4103590925435
- Weight: 0.11 kg
- Country of Origin: Germany
- Alternative Notation: 360 081 029 001C; 360/81/29/1C
Features
- Accurate pressure feedback across a 0–5 bar working range for dependable monitoring
- Stable analog resistive output (10–184 ohm) suited to VDO-style gauges and monitoring systems
- M10 x 1 tapered short thread helps ensure a secure, vibration-resistant installation
- Rated for demanding environments with a wide operating temperature window
- Short-duration overload capability supports robustness in pressure spikes
Technical Specifications
Pressure Measuring Range 0–5 bar; 0–72.5 PSI; 0–500 kPa Maximum Pressure 30 bar (up to 2 seconds) Thread M10 x 1 male tapered short Thread Length (L2) 11 mm Total Length Thread + Nut (L1) 19.5 mm Mounting Torque 30 Nm Operating Temperature -25°C to +100°C Operating Voltage 6–24 V DC Resistance Range 10–184 ohm Pressure Sensor Signal Single-pole common ground Connector M4 plastic knurled nut Communication Analog Connection Type A Catalog Reference VDO 2014 Vehicle Electronics Catalog, page 121–122
Packaging
- VDO sensor retail package
-
