ID
1129690
$ 74.06
1-2 weeks delivery time
-
+
The VDO Cockpit International engine oil pressure gauge 350-030-004G is a 52 mm, 12 V instrument designed for precise oil pressure monitoring across a 0 to 10 bar range as part of an engine monitoring dashboard setup. Using a VDO pressure sender signal (10 to 184 ohm) and AMP male blade connectors for both signal and illumination, it delivers stable, easy-to-read pressure information that helps drivers spot lubrication issues early and keep the engine protected under load.
- Description
- Ask a Question
-

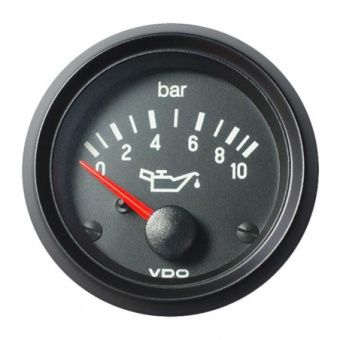

VDO Cockpit International 52 mm Oil Pressure Gauge (0-10 Bar)
Built for clear, reliable engine oil pressure monitoring, the VDO 350-030-004G Cockpit International gauge is a 52 mm dashboard instrument for 12 V vehicle electrical systems. It is designed for use in an engine monitoring setup, interpreting a VDO pressure sender signal and presenting oil pressure from 0 to 10 bar for quick checks during start-up, cruising, and high-load operation.
Compatibility
- 12 V automotive systems (operating range 116 V DC)
- Engine monitoring installations using a VDO pressure sender signal of 106184 ohm
- Dash panels with a 52 mm mounting hole (2 1/16 inch)
Product Details
- Brand: VDO
- Series: Cockpit International
- Component Type: Engine oil pressure gauge
- Dashboard Mounting: 52 mm installation diameter (2 1/16 inch)
- Application: VDO engine monitoring
- Retail Package Contents: Pressure gauge; steel bracket (zinc-plated and chromatized)
Technical Specifications
Part Number 350-030-004G Measurement Range 0 to 10 bar Sender Signal VDO pressure sender 10 to 184 ohm Operating Voltage 11 to 16 V DC (12 V nominal) Current Consumption (Without Illumination) 82 mA Connections AMP male blade connector 6.3 x 0.8 mm (signal: 3x; illumination: 2x) Installation Hole Diameter 52 mm (2 1/16 inch) Outside Diameter 59.25 mm (2 1/3 inch) Installation Depth 67.5 mm Bracket Locking Height 0.5 mm to 8 mm Deflection Angle 906176 Dial Color Black Pointer Red backlight Dial Illumination Floodlight 12 V, 3.4 W (white, green, red); 24 V, 3 W optional Lens Single, anti-glare Bezel Triangular black (threaded ring); interchangeable (special tool required) Front Protection Class IP64 (DIN 40050), ozone proof, UV proof Rear Protection Class IP42 (DIN 40050) Operating Temperature -306176C to +856176C EMC According to EN 13309 and ISO 13766 Reverse Polarity Protection Yes Housing Plastic, flame retardant Country of Origin Malaysia EAN Code 4103590690586 HS Code 85122000 Weight 0.10 kg
Features
- Clear 061760 bar scale for fast oil pressure checks during operation
- Designed to work with a VDO pressure sender signal (106176184 ohm) for consistent readings
- Standard 52 mm mounting size for clean dashboard integration
- AMP male blade connectors simplify wiring for signal and illumination
- Reverse polarity protection supports dependable operation in real-world installations
- Rugged protection ratings (IP64 front, IP42 rear) suited to demanding cockpit environments
-
