The VDO 360-081-029-004C pressure monitoring sender provides stable, accurate readings from 0 to 5 bar for engine and system instrumentation across automotive, marine, and industrial use. Designed for oil, fuel, and air circuits, it combines a 1/8-27 NPTF thread with a 10–184 Ohm analog output and single-pole common-ground signal, supporting dependable gauge input and engine monitoring under demanding temperatures from -25°C to +100°C.
- Description
- Ask a Question
-

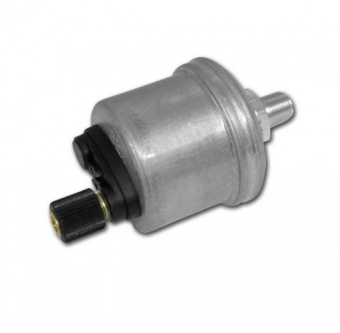

0-5 Bar Pressure Sender with 1/8-27 NPTF Thread
The VDO 360-081-029-004C is an analog pressure sender built for reliable pressure monitoring in oil, fuel, and air systems. With a measuring range of 0–5 bar and a single-pole common-ground signal, it is well suited for engine monitoring installations where stable gauge feedback and consistent electrical behavior are essential. The compact threaded form and defined tightening torque support straightforward integration in automotive, marine, and industrial assemblies.
Compatibility
- Automotive applications
- Marine applications
- Industrial applications
Product Details
- Brand: VDO
- Part Number: 360-081-029-004C
- Component Type: Pressure Sender
- Typical Use: Engine monitoring (engine oil pressure), and pressure measurement in oil, fuel, and air systems
- Thread: 1/8-27 NPTF male
- Connector: M4 plastic knurled nut
Features
- Measures 0–5 bar (0–72.5 PSI / 0–500 kPa) for precise system monitoring
- 10–184 Ohm analog output supports accurate gauge interpretation
- Single-pole common-ground signal type for stable electrical performance
- Rated for -25°C to +100°C operating temperatures
- Withstands pressure peaks up to 30 bar for 2 seconds in demanding installations
- No built-in warning contact; optional VDO A2C59510886 makepoint switch supported
Technical Specifications
Pressure Measuring Range 0–5 bar (0–72.5 PSI / 0–500 kPa) Maximum Pressure 30 bar (2 seconds) Pressure Medium Oil, fuel, air Thread 1/8-27 NPTF Total Length Thread + Nut (L1) 19.5 mm Thread Length (L2) 11 mm Tightening Torque 30 Nm Operating Temperature Range -25°C to +100°C Operating Voltage 6–24 V DC Resistance Range 10–184 Ohm Signal Type Single-pole common ground Warning Contact None Optional Warning Contact VDO A2C59510886 makepoint switch Connector M4 plastic knurled nut EAN Code 4103590690715 HS Code 90269000 Weight 0.11 kg Country of Origin Germany Type of Connection A Alternative Notation 360 081 029 004C; 360/81/29/4C -
