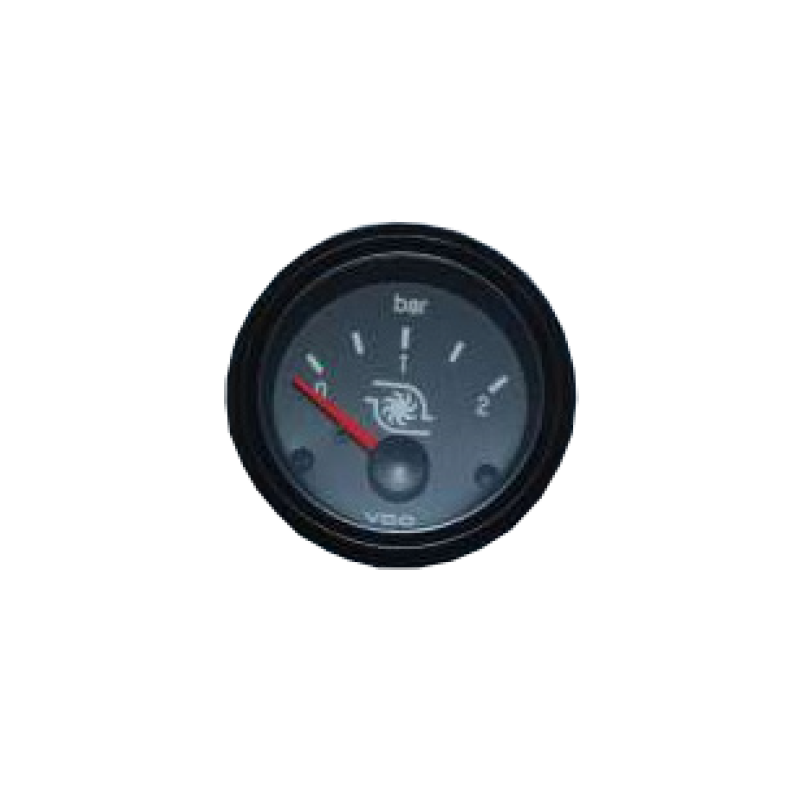

The VDO 350-040-001C turbo boost pressure gauge set from the Cockpit International series equips 24V vehicles with accurate 0–2 bar turbo pressure monitoring in a convenient 10-piece OEM package. Designed for dependable engine monitoring, these black 52 mm panel gauges use an analog 10–184 ohm signal with a matching VDO pressure sender, helping drivers and technicians keep boost performance under control for efficient, responsive power delivery.
- Description
- Ask a Question
-
Cockpit International Turbo Boost Gauge Set for 24V Systems
Built for reliable engine monitoring, the VDO 350-040-001C is a 10-piece OEM bulk package of Cockpit International turbo boost pressure gauges. Each instrument reads 0–2 bar and is intended for 24V electrical systems, giving you clear, consistent boost information to help verify turbocharger performance and support efficient power delivery.
Compatibility
- 24 Volt DC vehicle electrical systems (operating voltage 21.5–30 Volt DC)
- Turbo boost pressure monitoring setups using an analog VDO pressure sender signal of 10–184 Ohm
- Dash panels with 52 mm (2 1/16 inch) instrument installation holes
Product Details
- Brand: VDO
- Part Number: 350-040-001C
- Series: VDO Cockpit International
- Component Type: Turbo boost pressure gauge (pressure gauge)
- Application: VDO engine monitoring
- Package: 10 gauges (OEM bulk)
- Includes: Steel bracket, zinc-plated and chromatized (connecting material ordered separately)
- Color: Black
- Country of Origin: Malaysia
- EAN Code: 4103590690623
- HS Code: 85122000
- Weight: 1.66 kg
Technical Specifications
Pressure Measurement Range 0–2 Bar Operating Voltage 21.5–30 Volt DC Current Consumption (Without Illumination) 82 mA Signal Type Analog Sender Signal VDO pressure sender 10–184 Ohm Installation Hole Diameter 52 mm (2 1/16 inch) Outside Diameter 59.25 mm (2 1/3 inch) Installation Depth 67.5 mm Bracket Locking Height 0.5–8 mm Electrical Connections AMP male blade connector 6.3 x 0.8 mm (3x) Illumination Connections AMP male blade connector 6.3 x 0.8 mm (2x) Reverse Polarity Protection Yes Deflection Angle 90° Dial Illumination Floodlight 24V, 2 Watt (White, Green, Red) Pointer Red backlight Lens Single anti-glare, plastic Bezel Triangular black (threaded ring); interchangeable (special tool required) Front Protection Class IP64 (DIN 40050), ozone proof, UV proof Rear Protection Class IP42 (DIN 40050) Operating Temperature -30°C to +85°C EMC Test According to EN 13309 and ISO 13766 Nominal Position NL 0 to NL 90 (DIN 16257) Housing Plastic, flame retardant Warning Light Without
Features
- Accurate boost monitoring across a 0–2 bar range to help track turbocharger performance.
- Designed for 24V vehicles with a 21.5–30 V DC operating range for stable operation.
- Clean Cockpit International styling with black dial and floodlight illumination for clear readability.
- Durability-focused protection with IP64 front rating and a flame-retardant housing for demanding environments.
- OEM-friendly package with 10 gauges and steel mounting brackets for efficient fleet or workshop installations.
-
