ID
1008631
$ 78.84
1-2 weeks delivery time
-
+

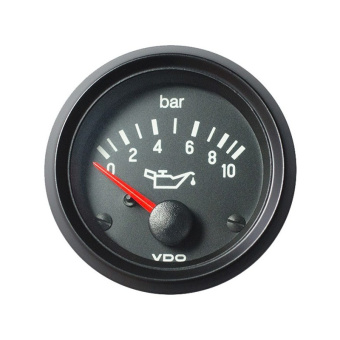

The VDO 350-040-004G Cockpit International oil pressure gauge is a rugged 52 mm dashboard instrument for 24V engine monitoring that displays engine oil pressure from 0 to 10 bar. Designed to work with a VDO 10–184 Ohm pressure sender, it provides clear, stable readings to help you track lubrication health, spot pressure loss early, and keep engines operating within safe limits.
- Description
- Ask a Question
-
Cockpit International 52 mm Oil Pressure Gauge for 24V Systems
Built for dependable engine monitoring, the VDO 350-040-004G Cockpit International instrument is an engine oil pressure gauge designed to deliver clear, at-a-glance pressure information on a 24V electrical system. With a 0 to 10 bar scale and standard 52 mm panel fitment, it integrates neatly into dashboards where accurate oil-pressure feedback supports preventive maintenance and protects engines from lubrication-related damage.
Compatibility
- Various vehicles with 24V electrical systems
- Applications using a VDO pressure sender signal of 10 to 184 Ohm
Product Details
- Brand: VDO
- Series: Cockpit International
- Component Type: Engine oil pressure gauge
- Category: Pressure gauges
- Application: VDO engine monitoring
- Dial Color: Black
- Bezel: Black triangle (threaded ring), interchangeable (special tool required)
- Lens: Single, anti-glare
Features
- 0–10 bar measurement range supports quick verification of engine lubrication pressure
- Designed for 24V installations and automotive operating conditions
- Reverse-polarity protection helps safeguard the instrument in real-world wiring environments
- Defined connector layout simplifies integration with vehicle wiring looms
- Ingress protection ratings support use in demanding cockpit and dashboard locations
Technical Specifications
Part Number 350-040-004G Pressure Range 0 to 10 bar Operating Voltage 21.5 to 30 V DC Current Consumption (Without Illumination) 82 mA Sender Signal (Oil Pressure) 10 to 184 Ohm Panel Hole Diameter 52 mm (2 1/16 inch) Outside Diameter 59.25 mm (2 1/3 inch) Installation Depth 67.5 mm Locking Height with Bracket 0.5 mm to 8 mm Main Connection Male blade connector 6.3 x 0.8 mm (3x) Illumination Connection Male blade connector 6.3 x 0.8 mm (2x) Deflection Angle 90° Dial Illumination Floodlight 24V, 2 W, white, green, red Front Protection Class IP64 (DIN 40050), ozone-proof, UV-proof Rear Protection Class IP42 (DIN 40050) Operating Temperature -30°C to +85°C Reverse Polarity Protection Yes CE Standard Yes EMC According to EN 13309 and ISO 13766 Nominal Position NL 0 to NL 90 (DIN 16257) Housing Plastic, flame retardant EAN Code 4103590925398 HS Code 85122000 Weight 0.16 kg Country of Origin Malaysia
What Is Included
- VDO Cockpit International 350-040-004G pressure gauge
- Steel bracket, zinc-plated and chromatized
-
