The VDO 360-081-029-010C pressure sensing unit provides accurate 0–10 bar monitoring for engine and system pressure circuits, supporting oil, fuel, and air pressure measurement in automotive and industrial setups. Built for dependable operation in VDO engine monitoring installations, it uses an M10 x 1 tapered short thread (30 Nm tightening torque) and delivers an analog 10–184 ohm signal via a single-pole common ground connection on 6–24 V DC, with no warning contact.
- Description
- Ask a Question
-

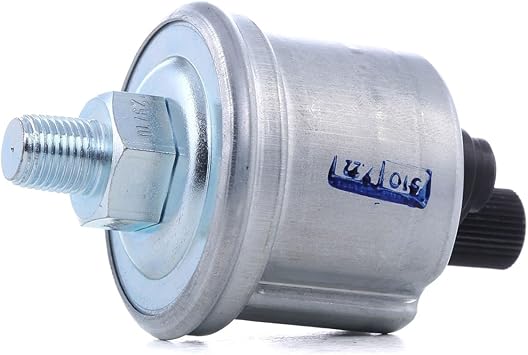

VDO 0–10 Bar Pressure Monitoring Sender with M10 x 1 Tapered Thread
The VDO 360-081-029-010C is a pressure sender designed to convert system pressure into an analog signal for gauges and monitoring electronics. Commonly used in VDO engine monitoring circuits, it supports reliable measurement of oil, fuel, and air pressure in automotive and industrial applications, helping operators spot pressure loss early and keep critical systems protected.
Compatibility
- Automotive applications (oil, fuel, and air pressure monitoring)
- Industrial applications (oil, fuel, and air pressure monitoring)
Technical Specifications

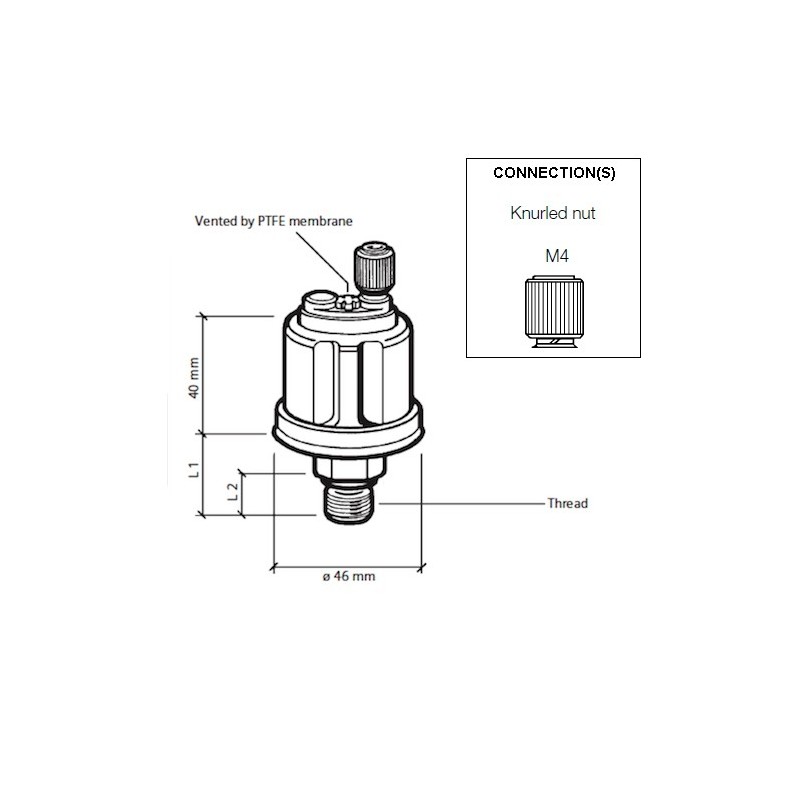

Measuring Range 0–10 bar (0–145 PSI, 0–1000 kPa) Maximum Pressure 30 bar for up to 2 seconds Operating Temperature -25 °C to +100 °C Pressure Medium Oil, fuel, air Thread M10 x 1 male tapered short Thread Length Plus Nut (L1) 19.5 mm Thread Length (L2) 11 mm Tightening Torque 30 Nm Operating Voltage 6–24 V DC Signal Output 10–184 ohm (analog) Sensor Signal Single-pole common ground Warning Contact None Connector M4 plastic knurled nut EAN 4103590925442 HS Code 90269000 Weight 0.11 kg
Product Details
- Brand: VDO
- Part Number: 360-081-029-010C
- Component Type: Pressure sender
- Typical Use: Engine oil pressure monitoring and general pressure measurement (oil, fuel, air)
- Optional Warning Contact: VDO A2C59510886 make-point switch
- Retail Package: VDO sensor retail package
Features
- Accurate 0–10 bar measurement for stable gauge readings and monitoring feedback
- Designed for harsh operating conditions, including short-duration pressure spikes up to 30 bar
- M10 x 1 tapered short thread supports secure installation on compatible ports
- Analog 10–184 ohm output and common-ground design suited to many VDO instrument systems
-
