ID
1129689
$ 74.06
1-2 weeks delivery time
-
+

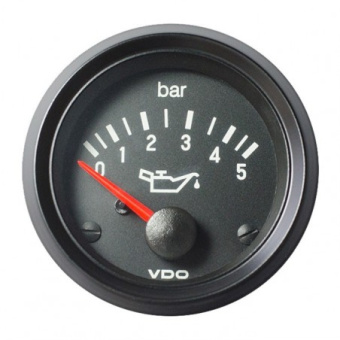

The VDO 350-030-003G Cockpit International oil pressure gauge is a rugged 52 mm instrument for precise 0 to 5 bar engine oil pressure monitoring in automotive and industrial 12V systems. Built for engine monitoring installations, it uses an analog VDO pressure sender signal (10–184 ohm), combines a black dial with a red backlit pointer, and adds selectable floodlight illumination (white, green, red) for clear readability day or night. With IP64 front protection and a flame-retardant housing, it supports dependable operation in harsh environments from -30°C to +85°C.
- Description
- Ask a Question
-
Cockpit International 52 mm Oil Pressure Gauge 0 to 5 Bar (12V)
Designed for dependable engine monitoring, the VDO 350-030-003G is a Cockpit International analog engine oil pressure gauge with a 0–5 bar scale. Its 52 mm format fits common instrument panels, while the black dial and red backlit pointer make pressure changes easy to read at a glance. For night operation, the integrated floodlight illumination can be set to white, green, or red, helping maintain visibility in a wide range of cockpit or cabin lighting conditions.
Compatibility
- Automotive 12V DC engine monitoring applications
- Industrial 12V DC engine monitoring applications
- VDO engine monitoring systems (analog input 10–184 ohm via VDO pressure sender)
Technical Specifications
Part Number 350-030-003G Series Cockpit International Measurement Range 0 to 5 bar Operating Voltage 11 to 16 V DC (12V nominal) Current Consumption (Without Illumination) 82 mA Signal Input Analog, 10 to 184 ohm (VDO pressure sender) Installation Diameter 52 mm (2 1/16 in) Outside Diameter 59.25 mm (2 1/3 in) Installation Depth 67.5 mm Bracket Locking Height 0.5 to 8 mm Deflection Angle 90° Dial Color Black Pointer Red backlit Dial Illumination Floodlight, 12V 3.4 W (white, green, red) Lens Single, anti-glare plastic Bezel Triangular black threaded ring (interchangeable with special tool) Front Protection IP64 (DIN 40050), ozone-proof and UV-proof Rear Protection IP42 (DIN 40050) Operating Temperature -30°C to +85°C Housing Flame-retardant plastic Connectors AMP male blade connector 6.3 x 0.8 mm (3x); illumination AMP male blade connector 6.3 x 0.8 mm (2x) Reverse Polarity Protection Yes Standards CE; EMC according to EN 13309 and ISO 13766 Mechanical Shock (8 Hours) Max 1G, 25 Hz to 2000 Hz Country of Origin Malaysia EAN Code 4103590925374 HS Code 85122000 Weight 0.20 kg Predecessor 350-271-002-048A
Product Details
- Brand: VDO
- Instrument Type: Engine oil pressure gauge
- Application: VDO engine monitoring
- Mounting Style: Panel installation with 52 mm hole and triangular bezel
- Retail Package: Pressure gauge; steel bracket (zinc-plated and chromated)
Features
- Monitors oil pressure in real time to support engine protection and maintenance planning
- High-visibility layout with black dial and red backlit pointer for quick scanning
- Selectable floodlight illumination (white, green, red) for consistent night readability
- IP64 front protection for demanding environments where spray and dust are concerns
- Designed to work with VDO pressure sender signals (10–184 ohm) for stable analog readings
-
