MgDuff Aluminium Hull & Rudder Rectangular Anodes, AD72B / AD77EURO / AD78B

MgDuff Aluminium Hull and Rudder Anodes – Rectangular, AD72B / AD77EURO / AD78B

The MgDuff Aluminium Hull and Rudder Anode is a rectangular sacrificial anode designed to protect metal components of boats against galvanic corrosion. Manufactured from a specially formulated aluminium alloy, it is suitable for use in freshwater, brackish water and saltwater environments.

The aluminium alloy is designed to provide uniform anode consumption, supporting consistent sacrificial corrosion protection. The range includes three models with different body dimensions and mounting arrangements: AD72B, AD77EURO and AD78B. The AD77EURO and AD78B versions feature two M10 bolt holes instead of a welding strip.

Key Features

• Brand: MgDuff
• Product Type: Sacrificial hull and rudder anode
• Material: Aluminium alloy
• Shape: Rectangular
• Application: Boat hulls and rudders
• Suitable Water Types: Freshwater, brackish water and saltwater
• Function: Protection against galvanic corrosion
• Anode Consumption: Aluminium alloy designed for uniform consumption
• Mounting: Bolt-hole installation
• Mounting Hole Size: M10 for AD77EURO and AD78B
• Available Models: AD72B, AD77EURO and AD78B
• Sales Unit: 1 piece

Technical Specifications and Available Models

Dimensions and Model Selection

The MgDuff aluminium hull and rudder anode range includes three models with different body dimensions and mounting hole spacings. Body dimensions are specified as length × width × height.

• AD72B: Rectangular aluminium anode measuring 457 × 102 × 64 mm, with a mounting hole spacing of 229 mm.

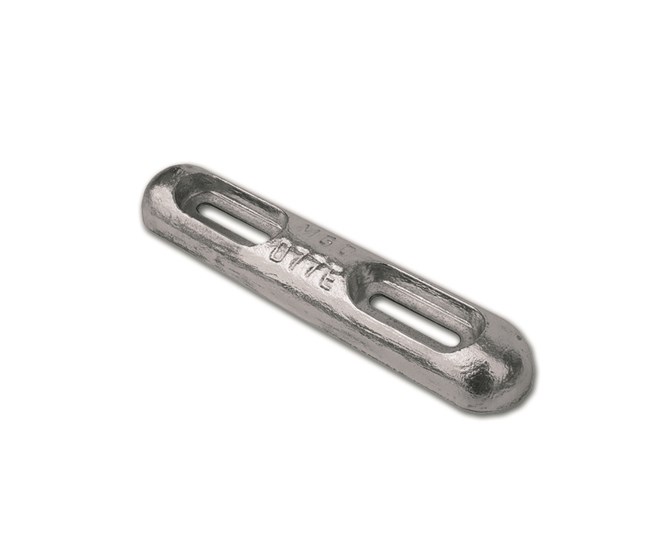

• AD77EURO: Rectangular aluminium anode measuring 318 × 65 × 32 mm, with mounting hole spacing ranging from 110 to 210 mm and two M10 bolt openings.
• AD78B: Rectangular aluminium anode measuring 305 × 76 × 32 mm, with 200 mm mounting hole spacing and two M10 bolt holes.

The AD77EURO and AD78B models use two M10 bolt holes instead of a welding strip. The AD77EURO version provides a mounting hole spacing range of 110–210 mm, while the AD78B has a fixed centre-to-centre distance of 200 mm.

When selecting an anode, check the body dimensions, mounting hole spacing and mounting arrangement against the required installation dimensions.

Construction and Mounting

The anodes are manufactured from aluminium alloy and designed for installation on boat hulls and rudders. Their rectangular construction provides a sacrificial metal body for galvanic corrosion protection.

• AD72B: Body dimensions of 457 × 102 × 64 mm with 229 mm mounting hole spacing.
• AD77EURO: Two M10 bolt openings with an adjustable centre-to-centre distance of 110–210 mm.
• AD78B: Two M10 bolt holes with a fixed centre-to-centre distance of 200 mm.

The actual anode shape may differ from the product illustration. This does not affect the specified dimensions or intended function.

Galvanic Corrosion Protection and Water Compatibility

The MgDuff aluminium anode acts as a sacrificial component, corroding preferentially to help protect other metal parts of the vessel against galvanic corrosion.

The aluminium alloy is designed for uniform consumption, supporting consistent protection of the hull and rudder. These anodes are suitable for use in three types of water environments:

• Freshwater: Suitable for freshwater applications.
• Brackish Water: Suitable for environments containing a mixture of freshwater and saltwater.
• Saltwater: Suitable for marine saltwater applications.

Product Identification

Sales Unit: 1 aluminium hull and rudder anode.
