ID
1400596
$ 121.04
1-2 weeks delivery time
Shaft Diameter:
- 20-30
- 35-50
Size:
- 30x2
- 20x2.5
- 14x1.5
- 16x1.5
- 18x1.5
- 18x1.75
- 18x2
- 3/4" W
- 20x1.5
- 20x2
- 24x1.5
- 24x2
- 26x2
- 33x2
- 1" GAS
- 1" W
Item:
- 400 g
- 360 g
- 700 g
- 850 g
- 960 g
- 350 g
- 950 g
- 370 g
- 380 g
Tecnoseal zinc Riva propeller anodes supplied complete with brass plug, available for shaft sizes Ø20–30 mm and Ø35–50 mm. The Ø20–30 mm versions measure Ø38 x 65 mm and are offered with several thread options from 14x1.5 to 20x2.5, including a 3/4" W version and a no-thread configuration. The larger Ø35–50 mm models measure Ø52 x 84 mm and are available with threads from 24x1.5 to 33x2, as well as 1" GAS, 1" W and a no-thread version. Select the required model according to shaft size and thread specification.
- Description
- Ask a Question
-

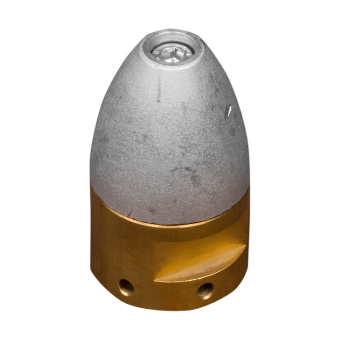

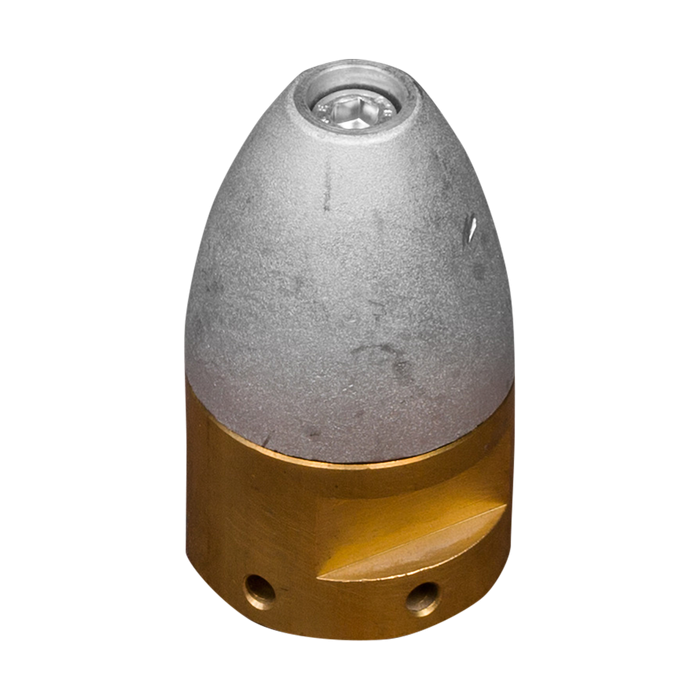

Tecnoseal Zinc Riva Propeller Anodes with Brass Plug – Shaft Ø20–50 mm
The Tecnoseal Riva Propeller Anodes are zinc (ZN) anodes supplied complete with brass plug and available for two shaft-size groups: Ø20–30 mm and Ø35–50 mm.
The Ø20–30 mm models share an outside diameter of Ø38 mm and a height of 65 mm, while the Ø35–50 mm versions measure Ø52 mm in diameter and 84 mm in height. The individual models are distinguished mainly by their thread specification, with no-thread versions also available.
Key Features
- Brand: Tecnoseal
- Application: Riva propeller systems
- Material: Zinc (ZN)
- Configuration: Complete with brass plug
- Shaft Sizes: Ø20–30 mm and Ø35–50 mm
- Available Threads: Metric, Whitworth and GAS configurations
- No-Thread Versions: 00440X/C and 00449X/C
Available Models – Shaft Ø20–30 mm
Tecnoseal Code Shaft Size Outside Ø Height h Thread m Weight 00440 Ø20–30 mm Ø38 mm 65 mm 14x1.5 0.40 kg / 400 g 00440X/C Ø20–30 mm Ø38 mm 65 mm No Thread 0.36 kg / 360 g 00441 Ø20–30 mm Ø38 mm 65 mm 16x1.5 0.36 kg / 360 g 00441/1 Ø20–30 mm Ø38 mm 65 mm 16x2 0.37 kg / 370 g 00442 Ø20–30 mm Ø38 mm 65 mm 18x1.5 0.38 kg / 380 g 00443 Ø20–30 mm Ø38 mm 65 mm 18x1.75 0.38 kg / 380 g 00444 Ø20–30 mm Ø38 mm 65 mm 18x2 0.38 kg / 380 g 00445 Ø20–30 mm Ø38 mm 65 mm 3/4" W 0.38 kg / 380 g 00446 Ø20–30 mm Ø38 mm 65 mm 20x1.5 0.35 kg / 350 g 00447 Ø20–30 mm Ø38 mm 65 mm 20x2 0.37 kg / 370 g 00448 Ø20–30 mm Ø38 mm 65 mm 20x2.5 0.36 kg / 360 g
Available Models – Shaft Ø35–50 mm
Tecnoseal Code Shaft Size Outside Ø Height h Thread m Weight 00449 Ø35–50 mm Ø52 mm 84 mm 24x1.5 0.96 kg / 960 g 00449X/C Ø35–50 mm Ø52 mm 84 mm No Thread 0.83 kg / 830 g 00450 Ø35–50 mm Ø52 mm 84 mm 24x2 0.85 kg / 850 g 00451 Ø35–50 mm Ø52 mm 84 mm 26x2 0.95 kg / 950 g 00452 Ø35–50 mm Ø52 mm 84 mm 30x2 0.70 kg / 700 g 00453 Ø35–50 mm Ø52 mm 84 mm 33x2 0.96 kg / 960 g 00454 Ø35–50 mm Ø52 mm 84 mm 1" GAS 0.70 kg / 700 g 00454-1 Ø35–50 mm Ø52 mm 84 mm 1" W 0.70 kg / 700 g
Model Selection
- Shaft Size: Select Ø20–30 mm or Ø35–50 mm
- Thread m: Select the thread specification matching the existing installation
- Ø: Outside anode diameter
- h: Overall anode height
- Weight: Individual zinc anode weight
Select the required Tecnoseal Riva propeller anode by shaft size and thread specification, then verify the outside diameter and height against the existing installation.
-
