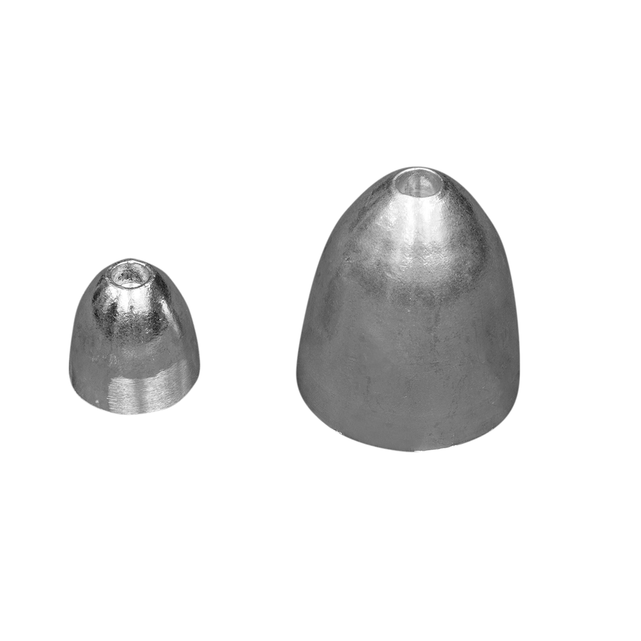

Name: Tecnoseal Zinc MTF Replacement Propeller Anodes, Shaft Ø20–100 mm
SKU: Tecnoseal 00430mtf

Tecnoseal Zinc MTF Replacement Propeller Anodes, Shaft Ø20–100 mm

ID 1400637

$ 19.45

1-2 weeks delivery time

Shaft Diameter:

20-30
35-50
50-100

Item:

250 g
140 g
770 g

Tecnoseal zinc replacement propeller anodes for MTF series installations, available for shaft ranges Ø20–30 mm, Ø35–50 mm and Ø50–100 mm. Tecnoseal 00430MTF measures Ø38 x 38 mm and weighs 0.14 kg, 00431MTF measures Ø52 x 50 mm and weighs 0.25 kg, while 00432MTF measures Ø66 x 74 mm and weighs 0.77 kg. Select the required version according to shaft diameter and matching anode dimensions.

Description
Ask a Question

Tecnoseal Zinc MTF Replacement Propeller Anodes – Shaft Ø20–100 mm

The Tecnoseal MTF Replacement Propeller Anodes are zinc (ZN) replacement anodes available for MTF series installations with shaft diameters from Ø20 to Ø100 mm.

The range includes three sizes. Tecnoseal 00430MTF is intended for Ø20–30 mm shafts, 00431MTF for Ø35–50 mm shafts and 00432MTF for Ø50–100 mm shafts. Each version has different overall and internal dimensions to match the corresponding installation.

Key Features

Brand: Tecnoseal
Series: MTF
Product Type: Replacement propeller anode
Material: Zinc (ZN)
Shaft Range: Ø20–100 mm
Available Models: 00430MTF, 00431MTF, 00432MTF

Available Models and Technical Specifications

Tecnoseal Code	Shaft Size	Weight	Height h	Outside Ø	Ø1	Ø2
00430MTF	Ø20–30 mm	0.14 kg / 140 g	38 mm	Ø38 mm	29 mm	6.5 mm
00431MTF	Ø35–50 mm	0.25 kg / 250 g	50 mm	Ø52 mm	40 mm	8.5 mm
00432MTF	Ø50–100 mm	0.77 kg / 770 g	74 mm	Ø66 mm	41.5 mm	6.5 mm

Model Selection

00430MTF: Shaft Ø20–30 mm, Ø38 x 38 mm, 140 g
00431MTF: Shaft Ø35–50 mm, Ø52 x 50 mm, 250 g
00432MTF: Shaft Ø50–100 mm, Ø66 x 74 mm, 770 g

Select the required Tecnoseal MTF replacement anode according to shaft diameter, then verify the outside diameter, height and internal dimensions against the existing installation.
