Tecnoseal Zinc Riva MTF Series Propeller Anodes, Shaft Ø20–50 mm

ID 1400629

$ 121.04

1-2 weeks delivery time

Shaft Diameter:

20-30
35-50

Size:

30x2
14x1.5
16x1.5
18x1.5
20x1.5
24x2
26x2

Item:

400 g
390 g
860 g
370 g
380 g
820 g

Tecnoseal zinc Riva MTF series propeller anodes for shaft sizes Ø20–30 mm and Ø35–50 mm. Models for Ø20–30 mm shafts measure Ø38 x 60 mm and are available with 14x1.5, 16x1.5, 18x1.5 and 20x1.5 threads, as well as a no-thread version. Models for Ø35–50 mm shafts measure Ø52 x 84 mm and are offered with 24x2, 26x2 and 30x2 threads or without thread. Individual weights range from 0.37 to 0.96 kg. Select the required version according to shaft size and thread configuration.

Description
Ask a Question

Tecnoseal Zinc Riva MTF Series Propeller Anodes – Shaft Ø20–50 mm

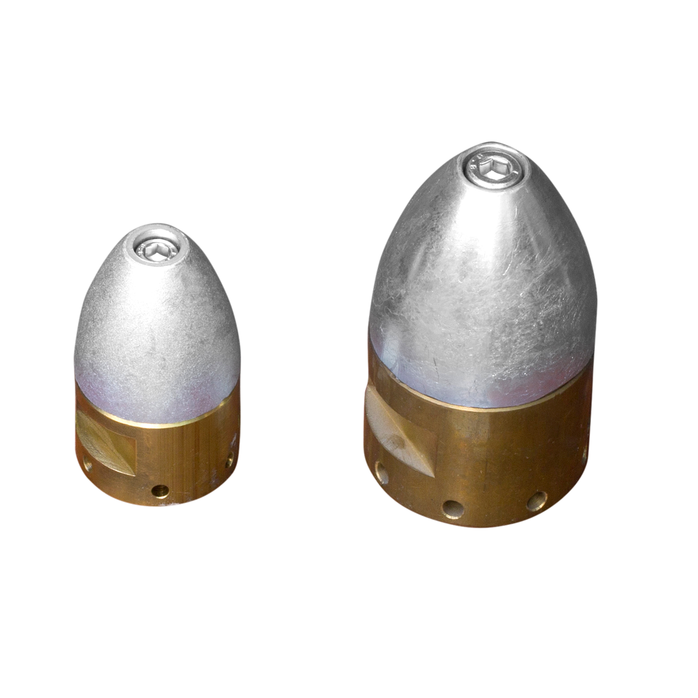

The Tecnoseal Riva MTF Series Propeller Anodes are zinc (ZN) anodes available for two shaft-size groups: Ø20–30 mm and Ø35–50 mm.

The smaller versions for Ø20–30 mm shafts measure Ø38 mm in diameter and 60 mm in height. They are available with 14x1.5, 16x1.5, 18x1.5 and 20x1.5 threads, together with a no-thread version. The larger Ø35–50 mm models measure Ø52 mm in diameter and 84 mm in height and are available with 24x2, 26x2 and 30x2 threads or without thread.

Key Features

Brand: Tecnoseal
Series: Riva MTF
Product Type: Propeller anode
Material: Zinc (ZN)
Shaft Sizes: Ø20–30 mm and Ø35–50 mm
Configurations: Threaded and no-thread versions
Weight Range: 0.37–0.96 kg

Models for Shaft Ø20–30 mm

Tecnoseal Code	Shaft Size	Thread m	Outside Ø	Height h	Weight
00440MTF	Ø20–30 mm	14x1.5	Ø38 mm	60 mm	0.40 kg / 400 g
00440X/C MTF	Ø20–30 mm	No Thread	Ø38 mm	60 mm	0.40 kg / 400 g
00441MTF	Ø20–30 mm	16x1.5	Ø38 mm	60 mm	0.39 kg / 390 g
00442MTF	Ø20–30 mm	18x1.5	Ø38 mm	60 mm	0.38 kg / 380 g
00446MTF	Ø20–30 mm	20x1.5	Ø38 mm	60 mm	0.37 kg / 370 g

Models for Shaft Ø35–50 mm

Tecnoseal Code	Shaft Size	Thread m	Outside Ø	Height h	Weight
00449X/C MTF	Ø35–50 mm	No Thread	Ø52 mm	84 mm	0.96 kg / 960 g
00450MTF	Ø35–50 mm	24x2	Ø52 mm	84 mm	0.86 kg / 860 g
00451MTF	Ø35–50 mm	26x2	Ø52 mm	84 mm	0.82 kg / 820 g
00452MTF	Ø35–50 mm	30x2	Ø52 mm	84 mm	0.82 kg / 820 g

Model Selection

Shaft Size: Ø20–30 mm or Ø35–50 mm
Thread m: Select the required thread size or no-thread configuration
Ø: Outside anode diameter
h: Overall anode height
Weight: Individual anode weight

Select the required Tecnoseal Riva MTF propeller anode according to shaft size and thread configuration, then verify the outside diameter and height against the existing installation.
